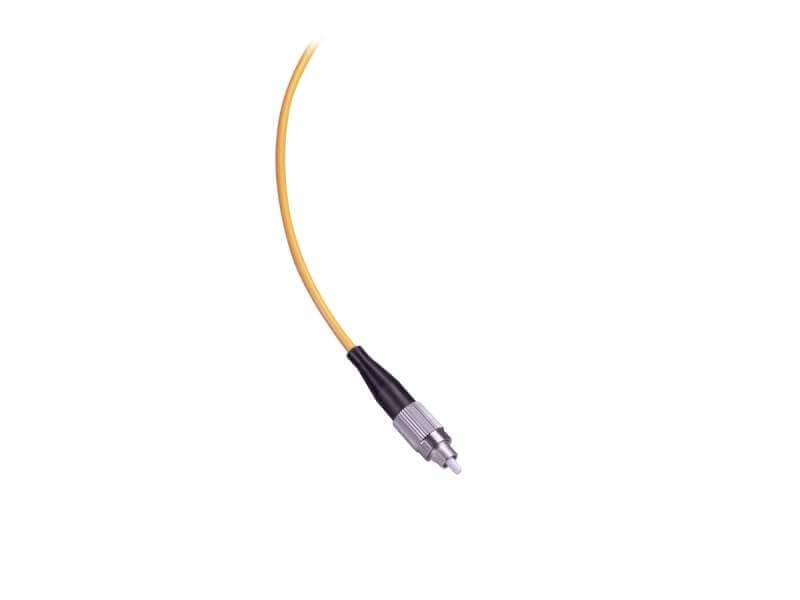

High Power Single Mode Fiber Optic Patch Cable/Connector 10W
The High Power Fiber Optic Connector (HPFC) incorporates a beam-expanded fiber lens at the fiber end within a conventional butt-coupling format. The fiber tip utilizes a GRIN (graded-index) lens instead of a conventional end cap, minimizing coupling loss and enabling efficient high-power transmission. The mode field diameter (MFD) is expanded to 15 µm for 5 W operation and 35 µm for 10 W and 15 W operation. Each connector is manufactured to tight tolerances to ensure consistent performance across units with the same part number, enabling reliable and repeatable mating. HPFC connectors must be used in matched pairs with identical part numbers. Mating with conventional connectors results in higher insertion loss and does not support high-power handling.
Configuration options
Build & quote
Configure the options below and add your exact build to the enquiry — we confirm the part number and availability.
We confirm the exact part number for your configuration on enquiry.
Model: SM · Wavelength: 480 · Power: 5W · Configuration: One Connector · Fiber Length: 1m · Fiber Type: RGB400 · Cable Type: Bare fiber · Key: Regular · Connector: FC/PC
System integration
Integration and compatibility
Use these checks to connect High Power Single Mode Fiber Optic Patch Cable/Connector 10W to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Optical interface and fiber
- Fiber Length: 1m, 1.5m, 2m, 2.5m, 3m, Special · Fiber Type: RGB400, PM480, PM630, HI 780, PM980, HI1060, SMF28, 50/125, 62.5/125, Special
- Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
- Wavelength and loss budget
- Wavelength: 480, 630, 780, 850, 980, 1060, 1310, 1400, 1550, Special
- Check the Connectors & Cables passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.
Technical FAQ
Integration questions for High Power Single Mode Fiber Optic Patch Cable/Connector 10W
Which fiber and connector does the High Power Single Mode Fiber Optic Patch Cable/Connector 10W use?
Fiber Length: 1m, 1.5m, 2m, 2.5m, 3m, Special · Fiber Type: RGB400, PM480, PM630, HI 780, PM980, HI1060, SMF28, 50/125, 62.5/125, Special. Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
How should the High Power Single Mode Fiber Optic Patch Cable/Connector 10W be included in an optical power budget?
Wavelength: 480, 630, 780, 850, 980, 1060, 1310, 1400, 1550, Special. Check the Connectors & Cables passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.
Need this configured?
Share your wavelength, fiber type, connector, power handling and control requirements and we will qualify the matching configuration and part number.
Model selection
Nearby series comparison
Compare High Power Single Mode Fiber Optic Patch Cable/Connector 10W with the closest available models in the Connectors & Cables family.
| Selection parameter | High Power Single Mode Fiber Optic Patch Cable/Connector 10W (current) | High Power Multimode Fiber Optic Connector | Polarization-Maintaining Fiber Optical Patch Cable - PM1310 |
|---|---|---|---|
| Wavelength range | 480, 630, 780, 850, 980, 1060, 1310, 1400, 1550, Special | None, 488, 532, 650, 780, 850, 980, 1060, 1310, 1550, 2000 | 1310nm |
| Fiber type | RGB400, PM480, PM630, HI 780, PM980, HI1060, SMF28, 50/125, 62.5/125, Special | Step Index, Graded Index | PM1310 |
| Connector / control | FC/PC, FC/APC, Special | One End, Both End | FC/PC, FC/APC, Special |
