Transmitters & Receivers

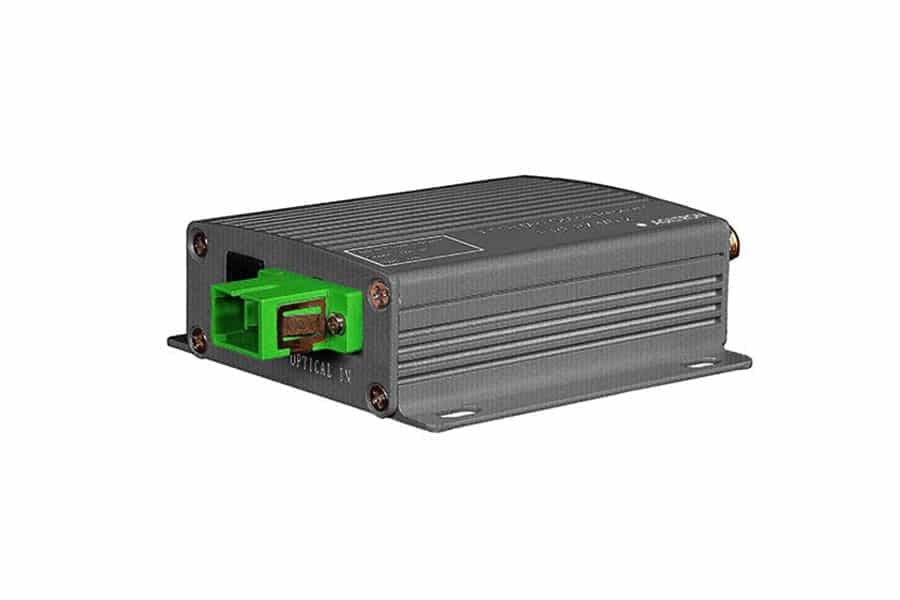

The RFOF Transmitter (Tx) and Receiver (Rx) pair is engineered to transmit analog or digital RF signals over optical fiber, providing a secure and reliable link between two short-distance locations. Designed for high-security applications, this system ensures low-loss, high-fidelity signal transport while maintaining signal integrity. An optional RF Fiber Break configuration is available, enabling unidirectional RF transmission over a single fiber link. This feature prevents signals from being passed in the return direction, ensuring one-way communication for enhanced security and isolation, often required in military and critical infrastructure applications. This series of RFOF links covers a wide frequency range from 5 MHz to 2.5 GHz, featuring an exceptionally flat frequency response for both analog and digital signals.
Configuration options
Configure the options below and add your exact build to the enquiry — we confirm the part number and availability.
Part number: RFOF-025111112
RF Frequency: 2.5GHz · Wavelength: 1550 nm · TX/RX: Receiver · Package: Module · Directional: Monodirectional · RF Fiber Breaker: Non · Fiber Connector: FC/APC
Application context
Application guidance is tied to the configured wavelength, fiber interface and optical-budget fields for this family.
2.5 GHz Fiber Optical Amplified Photodetector / Receiver: Laboratory optical integration depends on preserving the optical budget through the complete path. The 1550 nm, 1310 nm wavelength specification sets source and detector compatibility. The fiber/interface entry (Non, Yes) must match the connected components.
2.5 GHz Fiber Optical Amplified Photodetector / Receiver: Fiber-optic instrumentation depends on preserving the optical budget through the complete path. The 1550 nm, 1310 nm wavelength specification sets source and detector compatibility. The fiber/interface entry (Non, Yes) must match the connected components.
System integration
Use these checks to connect 2.5 GHz Fiber Optical Amplified Photodetector / Receiver to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
RF Fiber Breaker: Non, Yes · Fiber Connector: FC/APC, SC/PC, SC/UPC, Special. Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
Wavelength: 1550 nm, 1310 nm. Check the Transmitters & Receivers passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.
Share your wavelength, fiber type, connector, power handling and control requirements and we will qualify the matching configuration and part number.
Model selection
Compare 2.5 GHz Fiber Optical Amplified Photodetector / Receiver with the closest available models in the Transmitters & Receivers family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | 2.5 GHz Fiber Optical Amplified Photodetector / Receiver (current) | 2 GHz High Sensitive APD Fiber Optical Amplified Photodetector / Photoreceiver | 2.5, 5, 12, 25 GHz Fiber Optical Amplified InGaAs APD Photodiode |
|---|---|---|---|
| Wavelength range | 1550 nm, 1310 nm | Confirm for this model | 1230 - 1620 |
| Optical performance | Confirm for this model | Confirm for this model | Confirm for this model |
| Fiber type | Confirm for this model | Confirm for this model | SM28, 50/125 |
| Connector / control | FC/APC, SC/PC, SC/UPC, Special | Confirm for this model | Non, Single Output, Differential |
