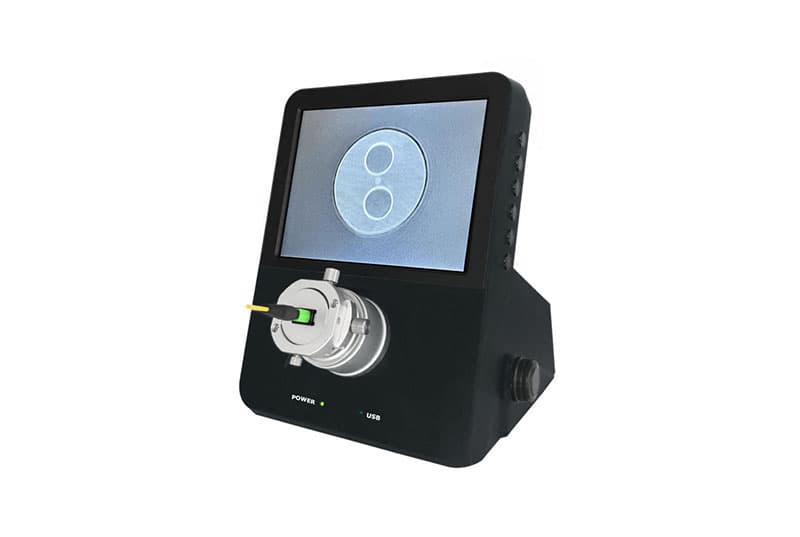

The FSCO 500 video is a high-performance tool that integrates several essential functions to make fiber connector inspection convenient and accurate. The microscope offers ultra-clear images of all types of fiber connector ends with a unique blue LED illumination design that improves contrast on minor scratches. Autofocusing is activated by a pushbutton or foot switch, eliminating the need for delicate manual adjusting, which frustrates many people. Moreover, it has dual magnifications to examine both the details of the fiber core and the entire connector surface. The two images of different magnifications are displayed either on the main display alternatively with a pushbutton switch or on two screens simultaneously.
Application context
Application guidance is tied to the configured wavelength, fiber interface and optical-budget fields for this family.
Autofocusing High Resolution Fiber Connector Inspection Scope: Laboratory optical integration depends on preserving the optical budget through the complete path.. The fiber/interface entry (LC, LC/APC, FC, FC/APC, SC, MPO) must match the connected components.
Autofocusing High Resolution Fiber Connector Inspection Scope: Fiber-optic instrumentation depends on preserving the optical budget through the complete path.. The fiber/interface entry (LC, LC/APC, FC, FC/APC, SC, MPO) must match the connected components.
Specifications
| Parameter | Specifications |
| Magnification | 400X/80X |
| Screen Size | 9 inch |
| Connector Type | LC, LC/APC, FC, FC/APC, SC, MPO |
| Bare Fiber Adaptor | 125 μm |
| Operating Temperature | 5 to + 50°C |
| Storage Temperature | 40 to +85°C |
| Dimensions | 1.8(OD) x 6.5 – 7.2(L)mm |
