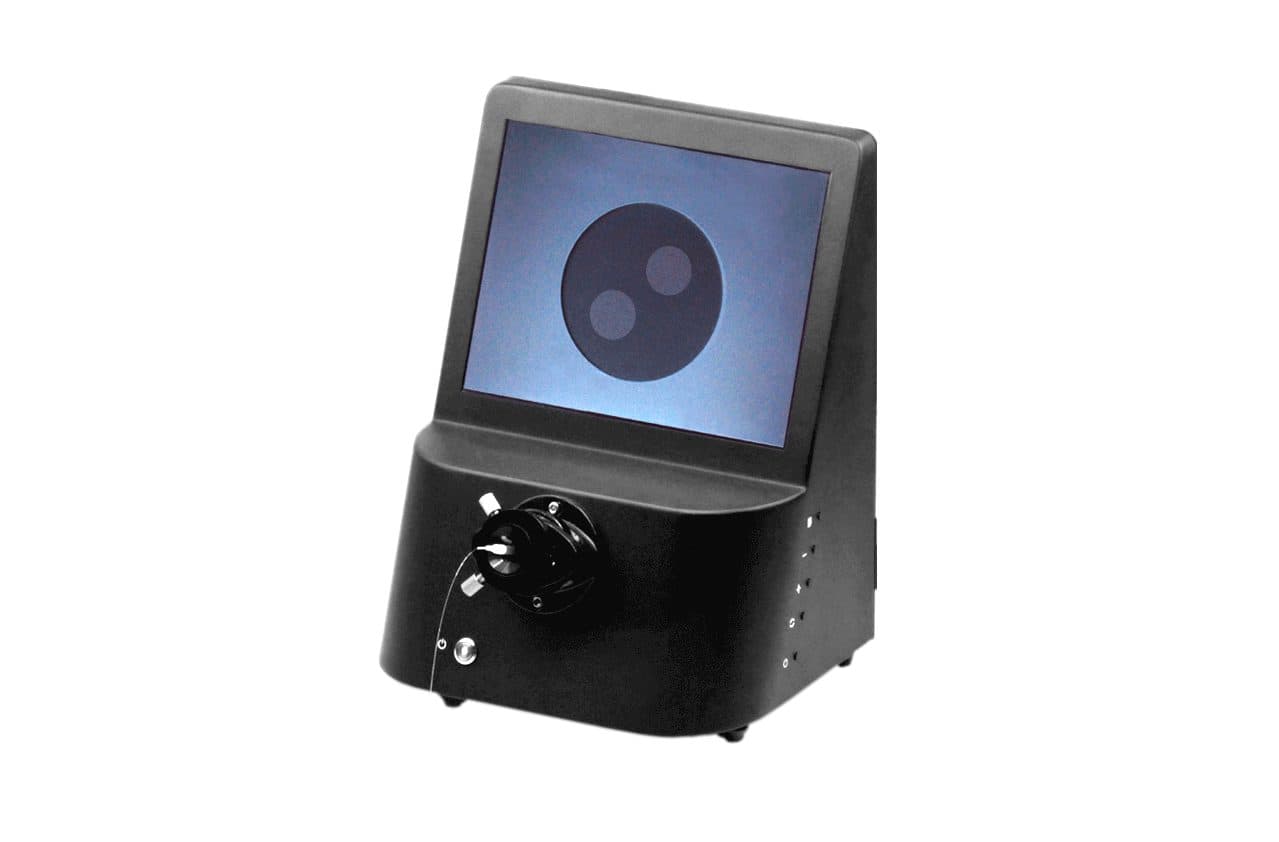

This is a professional-grade fiber end microscope featuring a clear image with large magnification and rugged all-metal construction. It is designed for easy and quick fiber connector examination. It comes with two universal adapters with hole diameters of 1.25 mm and 2.5 mm for viewing common connectors. Matching adaptors for all types of connectors are available to make connector examination faster without the need to adjust the focus each time, especially for angled connectors. For PM connectors, we offer pre-key alignment to a screen grid for measurement of connector key orientation in addition to their surface quality. Please note – These adaptors are intended as permanent fixtures so that each scope is dedicated to a certain type of connector. For high throughput operation, multiple scopes with different adaptors will be used.
Application context
Application guidance is tied to the configured wavelength, fiber interface and optical-budget fields for this family.
Fiber Connector High-Resolution Inspection Scope: Laboratory optical integration depends on preserving the optical budget through the complete path.. The fiber/interface entry (LC, LC/APC, FC, FC/APC, SC/PC, MPO) must match the connected components.
Fiber Connector High-Resolution Inspection Scope: Fiber-optic instrumentation depends on preserving the optical budget through the complete path.. The fiber/interface entry (LC, LC/APC, FC, FC/APC, SC/PC, MPO) must match the connected components.
Specifications
| Parameter | Specifications |
| Magnification | 400X |
| Screen Size | 9 inch |
| Connector Type | LC, LC/APC, FC, FC/APC, SC/PC, MPO |
| Bare Fiber Adaptor | 125 μm |
| Operating Temperature | 5 to + 50°C |
| Storage Temperature | 40 to +85°C |
| Dimensions | 1.8(OD) x 6.5 – 7.2(L)mm or Custom size |
Downloads
System integration
Use these checks to connect Fiber Connector High-Resolution Inspection Scope to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Connector Type: LC, LC/APC, FC, FC/APC, SC/PC, MPO · Bare Fiber Adaptor: 125 μm. Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
Share your wavelength, fiber type, connector, power handling and control requirements and we will qualify the matching configuration and part number.
Model selection
Compare Fiber Connector High-Resolution Inspection Scope with the closest available models in the Connectors & Cables family. Confirm option-dependent values on the final configuration before ordering.
| Selection parameter | Fiber Connector High-Resolution Inspection Scope (current) | Fiber Connector High-Resolution Inspection Scope | Fiber Connector Inspection Scope |
|---|---|---|---|
| Wavelength range | Confirm for this model | Confirm for this model | Confirm for this model |
| Optical performance | Confirm for this model | Confirm for this model | Confirm for this model |
| Fiber type | Confirm for this model | Confirm for this model | Confirm for this model |
| Connector / control | LC, LC/APC, FC, FC/APC, SC/PC, MPO | LC, LC/APC, FC, FC/APC, SC/PC, MPO | Confirm for this model |
