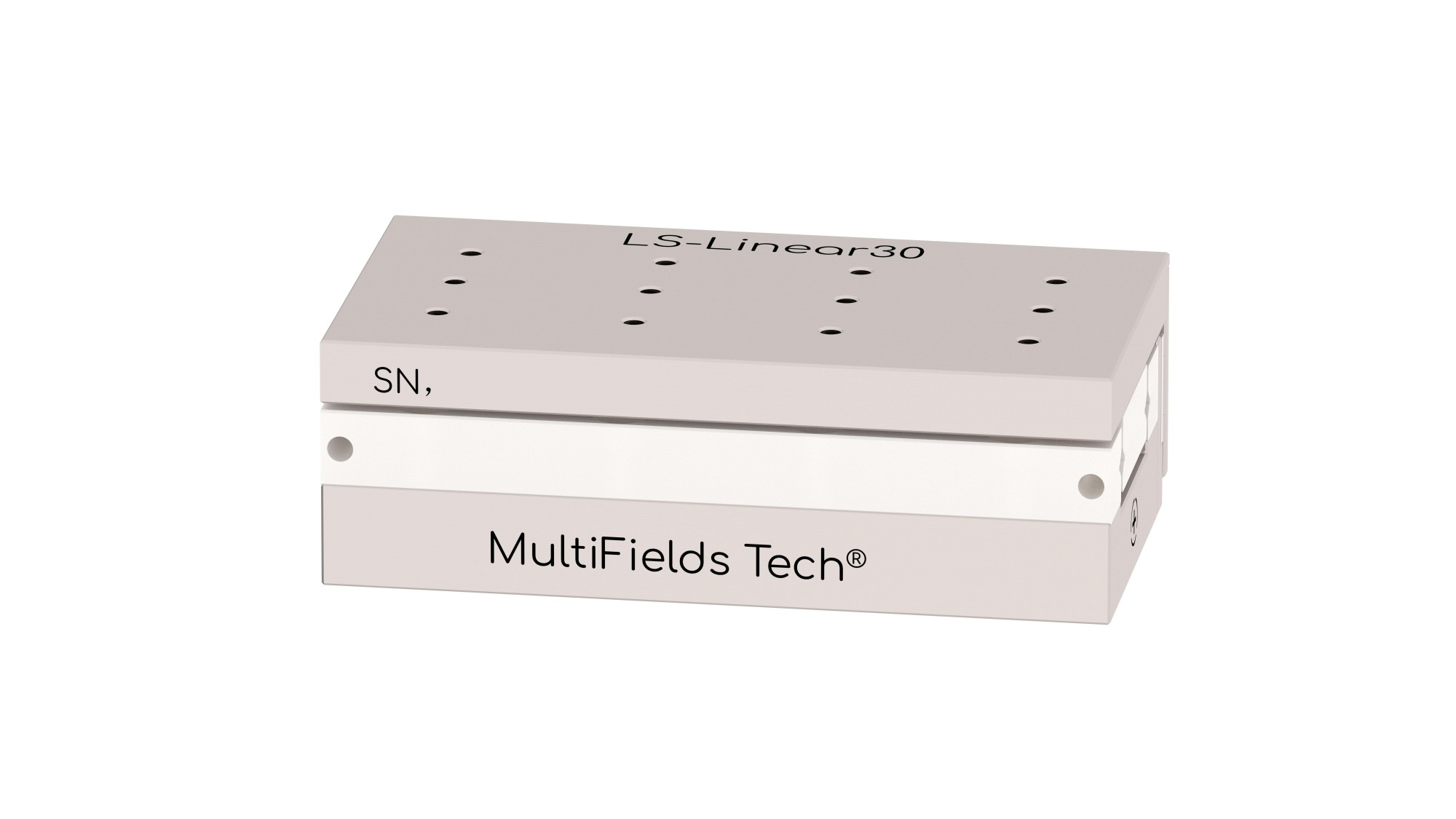

LS-Linear30.HV Long Stroke Piezo Stage
LS-Linear30.HV — LS-Linear Series Long Stroke Piezo Stages.
Check a reference product- Travel range
- 30 mm
- Active axes
- X
- Work Environment
- Default: 1.4 K~ 400 K, 1e-7 mbar, 35 Tesla
- Footprint × hight
- 60 x 32 x 19.5 mm
Product comparison
Check a reference product
Considering LS-Linear30.HV for an existing setup? Send us the reference product number and your required specifications. Our engineers can help check the function, configuration, dimensions and interfaces.
Ask our engineers →Specifications
| Active axes | X |
|---|---|
| Work Environment | Default: 1.4 K~ 400 K, 1e-7 mbar, 35 Tesla |
| Footprint × hight | 60 x 32 x 19.5 mm |
| Travel range | 30 mm |
| Max. Velocity @300 K | ~3 mm/s |
| Dynamic force | 3 N |
| Max. Load | 0.75 kg |
| Sencoder | Resistive Sensor |
| Sencoder range | 30 mm |
| Sensor resolution | ~150 nm |
| Repeatibility | 1-2 um |
| Drive Voltage | Max.200 V |
| Pins number | Drive -2 pins, Sensor- 3 pins |
| Mainbody | Default: Pure Ti, ULT: BeCu |
| Mass | 120 g |
