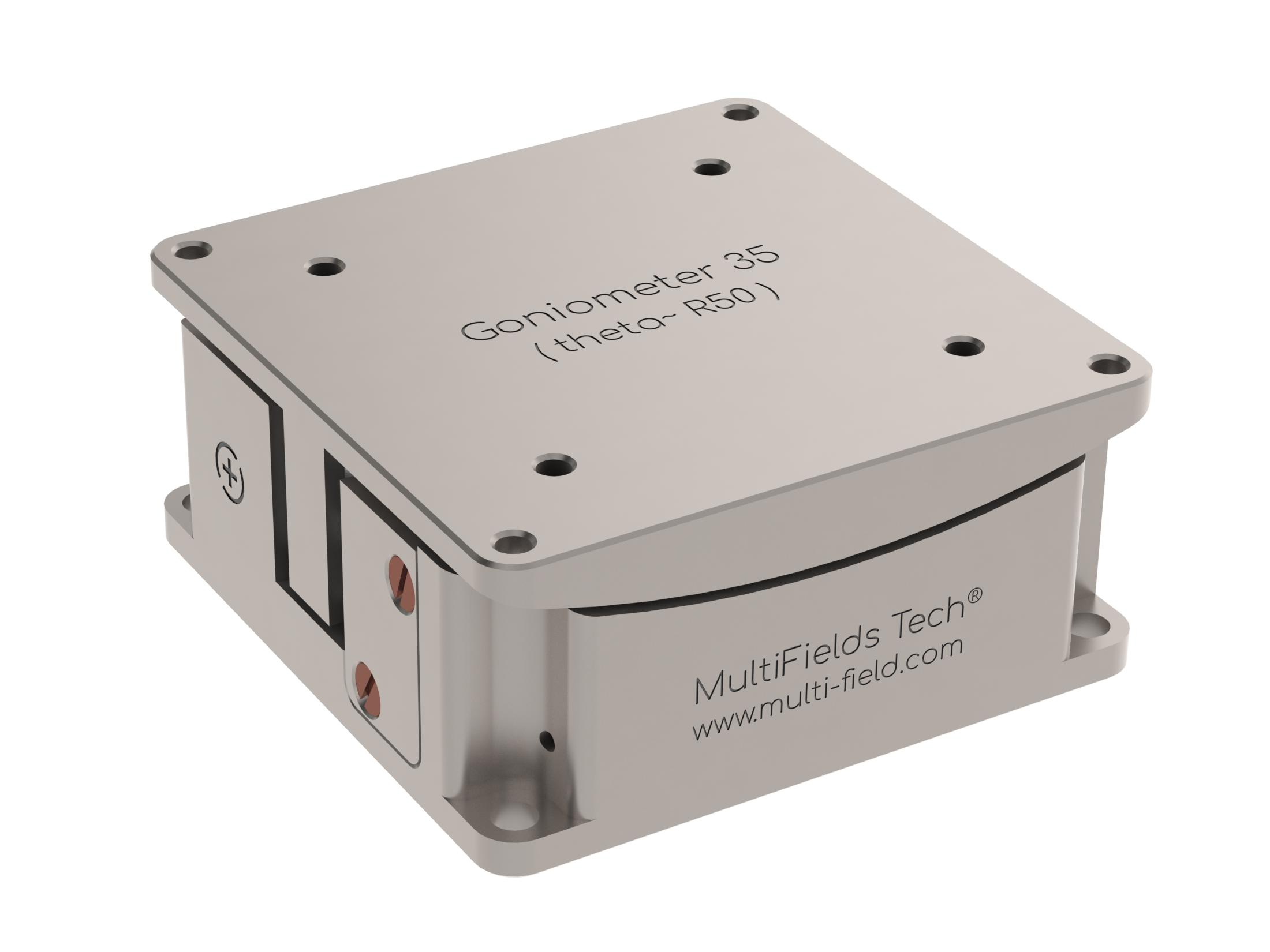

Goniometer35-theta.HV Cryogenic Tip/Tilt Piezo Stage
Goniometer35-theta.HV — Cryogenic Tip/Tilt Piezo Stages.
Check a reference product- Travel range
- ~12 °
- Active axes
- Rx
- Footprint × hight
- 35 x 35 x 16 mm
- Mass
- 70 g
Product comparison
Check a reference product
Considering Goniometer35-theta.HV for an existing setup? Send us the reference product number and your required specifications. Our engineers can help check the function, configuration, dimensions and interfaces.
Ask our engineers →Specifications
| Active axes | Rx |
|---|---|
| Footprint × hight | 35 x 35 x 16 mm |
| Mass | 70 g |
| Work environment | Default:1.4 K~ 400 K, 1e-7 mbar, 35 Tesla |
| Mainbody | Default: Pure Ti |
| Wires | Phosphor Bronze Twisted Paired Wires, 20cm |
| Pin materials | Polyster (glass fiber filled), BeCu |
| Pins number | Drive -2 pins, Sensor- 3 pins |
| Fine Tune Resolution @2 K* | 0.5 u° |
| Step Size (min) @300 K* | 50 u° |
| Travel range | ~12 ° |
| Max. Velocity @300 K | ~1°/s |
| Max. Load | 500 g |
| Dynamic Force | 3 N |
| Rotation center to top plate | 50 mm |
| Sensor | Resistive Sensor |
| Sensor range | 12 ° |
| Sensor resolution | 0.5 m° |
