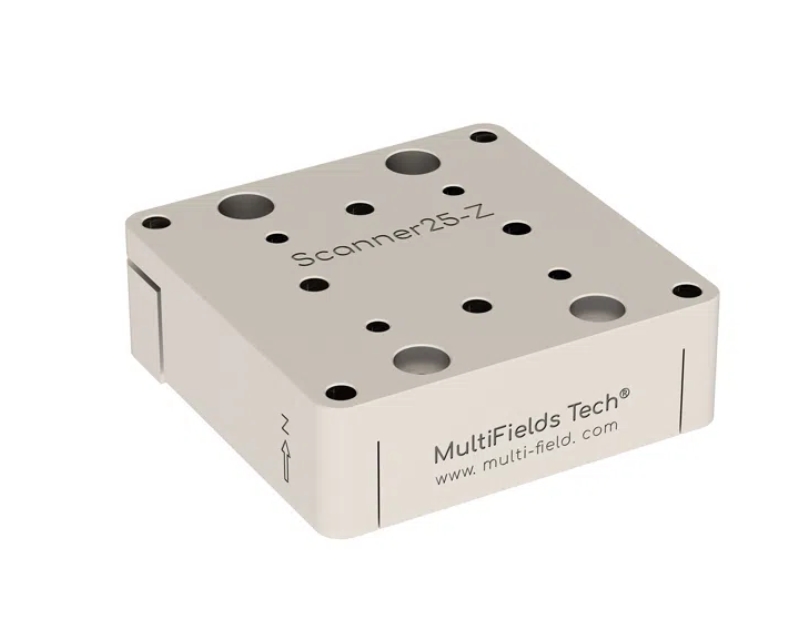

Scanner25-z.HV Cryogenic Piezo Cryogenic Scanner
Scanner25-z.HV — Cryogenic Scanners.
Check a reference product- Travel range @300 K
- 55 um
- Active axes
- Z
- Footprint × hight
- 25 x 25 x 8.5 mm
- Mass
- 20 g
Product comparison
Check a reference product
Considering Scanner25-z.HV for an existing setup? Send us the reference product number and your required specifications. Our engineers can help check the function, configuration, dimensions and interfaces.
Ask our engineers →Specifications
| Active axes | Z |
|---|---|
| Footprint × hight | 25 x 25 x 8.5 mm |
| Mass | 20 g |
| Work Environment | Default: 1.4 K~ 400 K, 1e-7 mbar, 35 Tesla |
| Mainbody | Default: Pure Ti, ULT: BeCu |
| Wires | Phosphor Bronze Twisted Paired Wires, 20cm |
| Pin materials | Polyster(glass fiber filled), BeCu |
| Pins number | 2 pins |
| Travel range @300 K | 55 um |
| Drive Voltage | Max. 75 V @300 K, Max. 180 V @4 K |
| Max. Load | 200 g |
| Capacitance @300 K | 4.2 uF |
| Resolution | 0.8 nm |
| Repeatibility | <10 nm |
