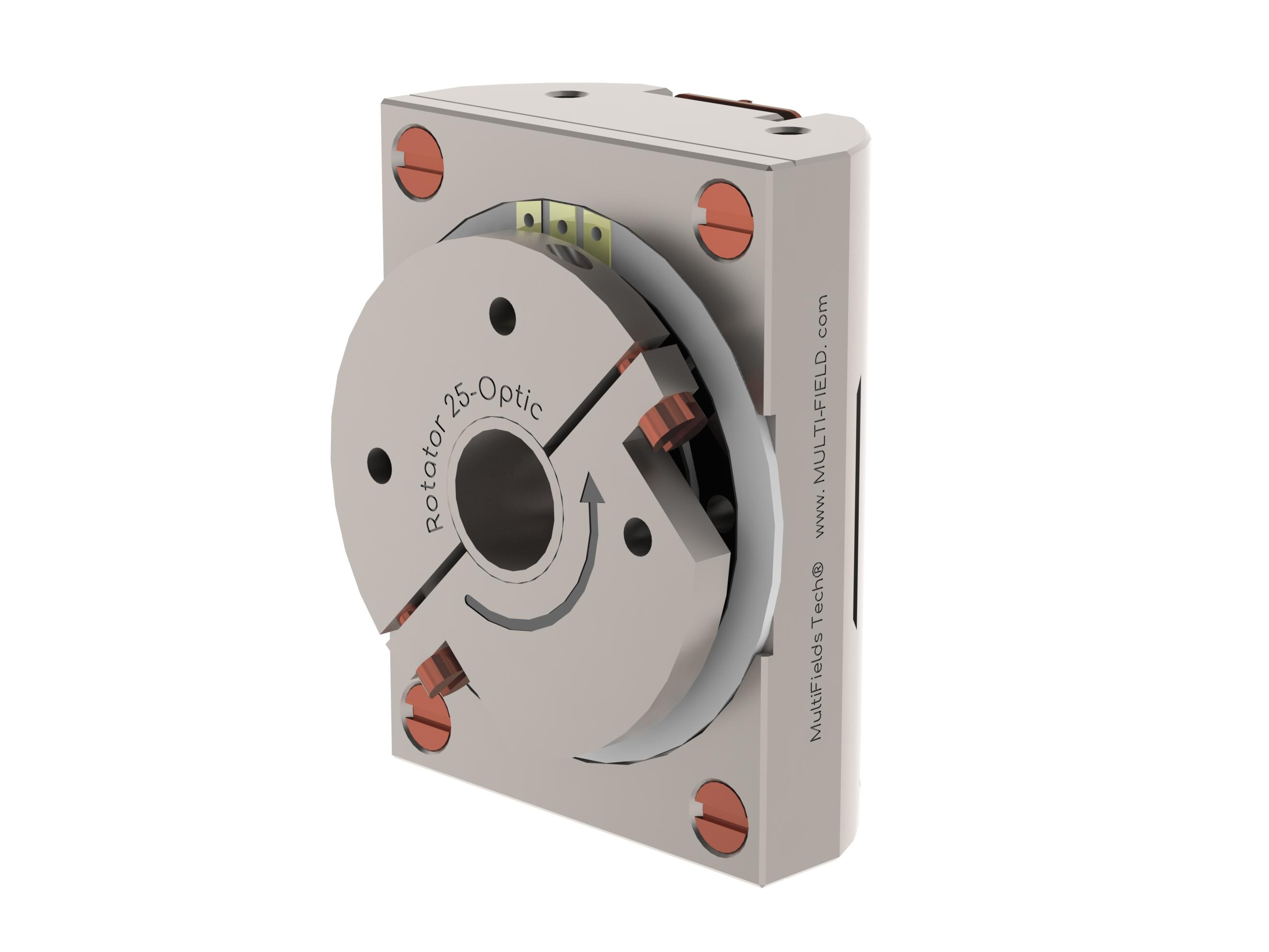

Rotator25-optic.HV Cryogenic Rotary Piezo Stage
Rotator25-optic.HV — Cryogenic Rotary Piezo Stages.
Check a reference product- Travel Range
- 360° endless
- Active axes
- Rz
- Mass
- 28 g
- Aperture
- 6 mm
Product comparison
Check a reference product
Considering Rotator25-optic.HV for an existing setup? Send us the reference product number and your required specifications. Our engineers can help check the function, configuration, dimensions and interfaces.
Ask our engineers →Specifications
| Active axes | Rz |
|---|---|
| Mass | 28 g |
| Aperture | 6 mm |
| Work environment | Default:1.4 K~ 400 K, 1e-7 mbar, 35 Tesla |
| Mainbody | Default: Pure Ti, ULT: BeCu |
| Wires | Phosphor Bronze Twisted Paired Wires, 20cm |
| Pin materials | Polyster (glass fiber filled), BeCu |
| Pins number | Drive -2 pins, Sensor- 3 pins |
| Footprint × hight | 30 x 23 x 14.5 mm |
| Travel Range | 360° endless |
| Max. Load | 250 g |
| Dynamic Torque | 1.5 N.cm |
| Max. Velocity @300 K | 3°/s |
| Sensor | Resistive Sensor |
| Sensor range | 320° |
| Sensor resolution | 10 m° |
| Fine Tune Resolution @2 K* | 4 u° |
| Step Size (min) @300 K* | 0.4 m° |
