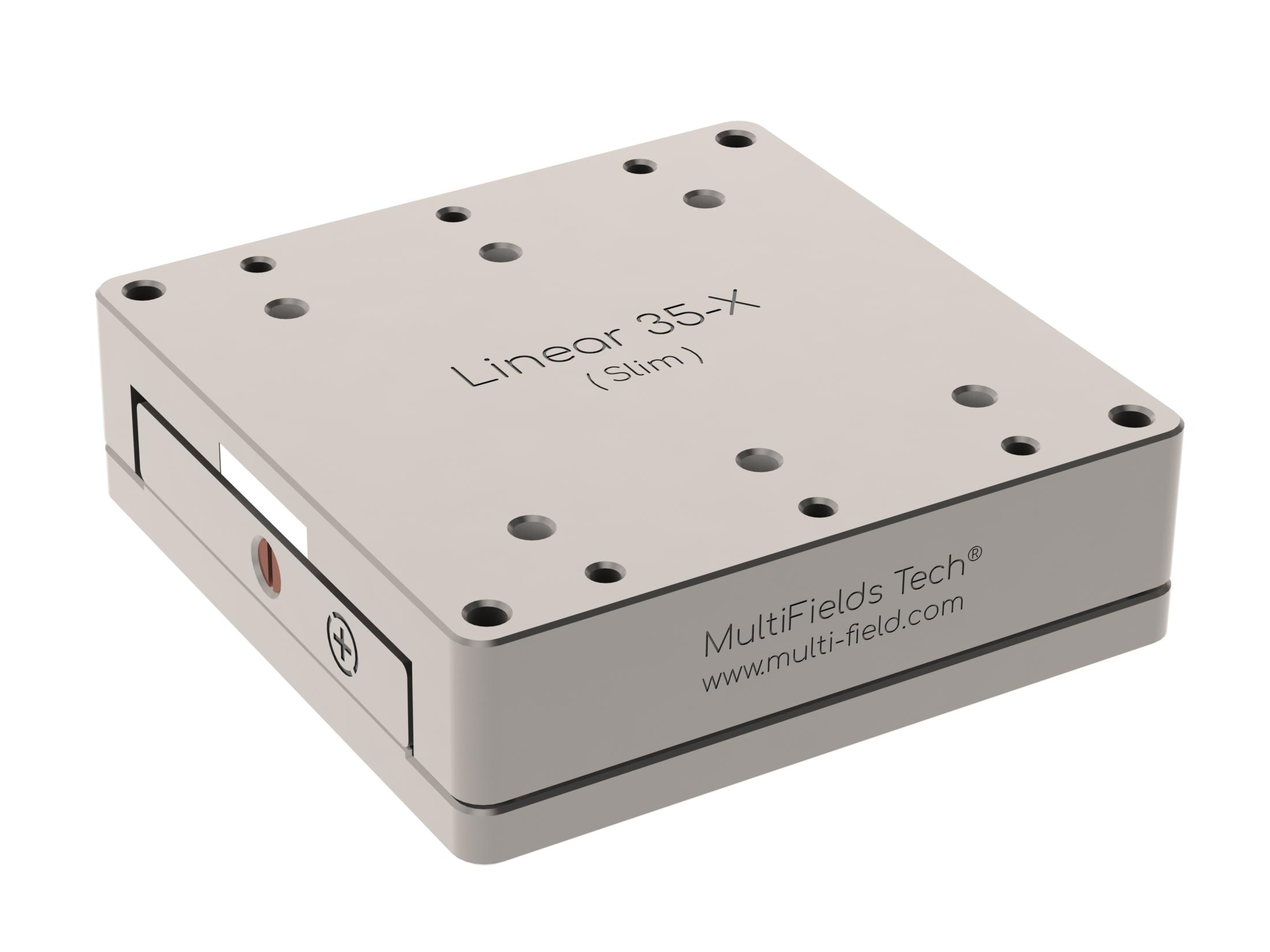

Linear35-x.HV Cryogenic Linear Piezo Stage
Linear35-x.HV — Cryogenic Linear Piezo Stages.
Check a reference product- Travel range
- 20 mm
- Active axes
- X
- Footprint × hight
- 35 x 35 x 10.5 mm
- Mass
- 54 g
Product comparison
Check a reference product
Considering Linear35-x.HV for an existing setup? Send us the reference product number and your required specifications. Our engineers can help check the function, configuration, dimensions and interfaces.
Ask our engineers →Specifications
| Active axes | X |
|---|---|
| Footprint × hight | 35 x 35 x 10.5 mm |
| Mass | 54 g |
| Work environment | 1.4~ 400 K, Max. Magnetic field: 35 Tesla |
| Mainbody | Pure Ti |
| Wires | Phosphor Bronze Twisted Paired Wires, 20cm |
| Pin materials | Polyster (glass fiber filled), BeCu |
| Pins number | Drive -2 pins, Sensor- 3 pins |
| Fine Tune Resolution @2 K* | sub nm |
| Step Size (min) @300 K* | ~10 nm |
| Travel range | 20 mm |
| Max. Velocity @300 K | ~2 mm/s |
| Max. Load | 2500 g |
| Dynamic force | 3 N |
| Position encoder | Resistive Sensor |
| Encoder range | 20 mm |
| Sensor resolution | ~150 nm |
| Repeatibility | 1-2 um |
