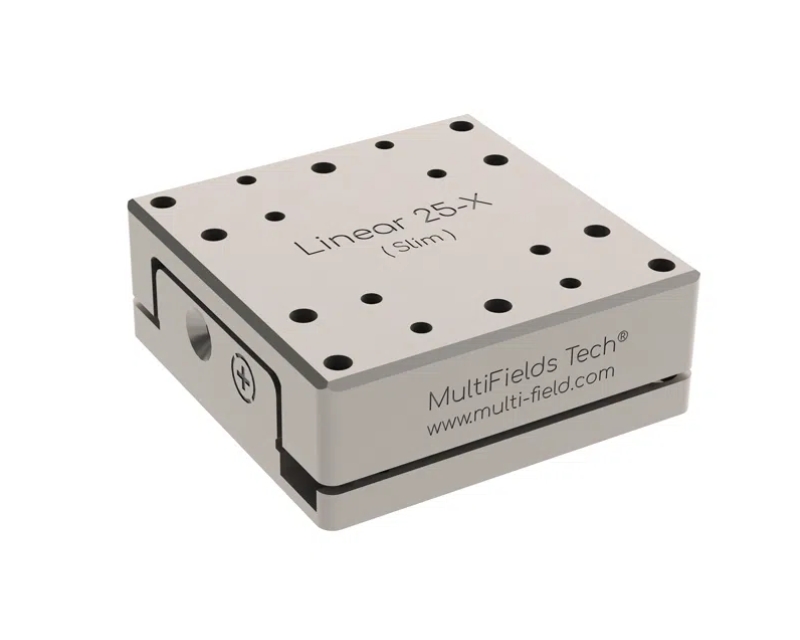

Linear25-x.HV Cryogenic Linear Piezo Stage
Linear25-x.HV — Cryogenic Linear Piezo Stages.
Check a reference product- Travel range
- 6 mm
- Active axes
- X
- Footprint × hight
- 25.4x25.4x9.5 mm
- Mass
- 24 g
Product comparison
Check a reference product
Considering Linear25-x.HV for an existing setup? Send us the reference product number and your required specifications. Our engineers can help check the function, configuration, dimensions and interfaces.
Ask our engineers →Specifications
| Active axes | X |
|---|---|
| Footprint × hight | 25.4x25.4x9.5 mm |
| Mass | 24 g |
| Work environment | 1.4~ 400 K, Max. Magnetic field: 35 Tesla |
| Mainbody | Pure Ti |
| Wires | Phosphor Bronze Twisted Paired Wires, 20cm |
| Pin materials | Polyster (glass fiber filled), BeCu |
| Pins number | Drive -2 pins, Sensor- 3 pins |
| Fine Tune Resolution @2 K* | sub nm |
| Step Size (min) @300 K* | ~10 nm |
| Travel range | 6 mm |
| Max. Velocity @300 K | ~3 mm/s |
| Max. Load | 500 g |
| Dynamic force | 2 N |
| Position encoder | Resistive Sensor |
| Encoder range | 6 mm |
| Sensor resolution | ~150 nm |
| Repeatibility | 1-2 um |
