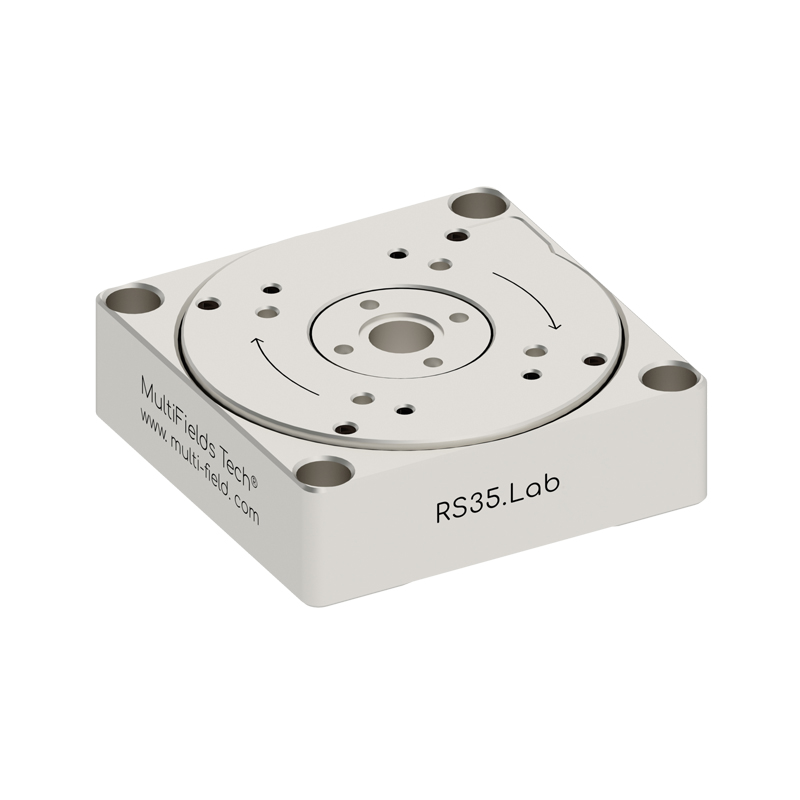

RS35.Lab.E Rotary Piezo Stage
RS35.Lab.E — Rotary Piezo Stages.
Check a reference product- Travel range
- 360 °
- Minimum Incremental Motion(Close-loop)
- 10 urad
- Max. Payload (horizontal mounting)
- 500 g
- Active axes
- θZ
Product comparison
Check a reference product
Considering RS35.Lab.E for an existing setup? Send us the reference product number and your required specifications. Our engineers can help check the function, configuration, dimensions and interfaces.
Ask our engineers →Specifications
| Active axes | θZ |
|---|---|
| Mass | 70 g |
| Travel range | 360 ° |
| Max Driving Frequency | 20 kHz |
| Aperture | 5 mm |
| Max. Velocity | 45 °/s |
| Minimum Incremental Motion(Close-loop) | 10 urad |
| Unidirection Repeatability | ±25 urad |
| Max. Payload (horizontal mounting) | 500 g |
| Holding Torque | 50 N·mm |
| Driving Torque | 20 N·mm |
| Diameter of Rotating Disc | 33.5 mm |
| Sensor Type | Optical Sensor |
| Sensor Resolution | 3 urad |
| Controller | MC-Newton.S series |
