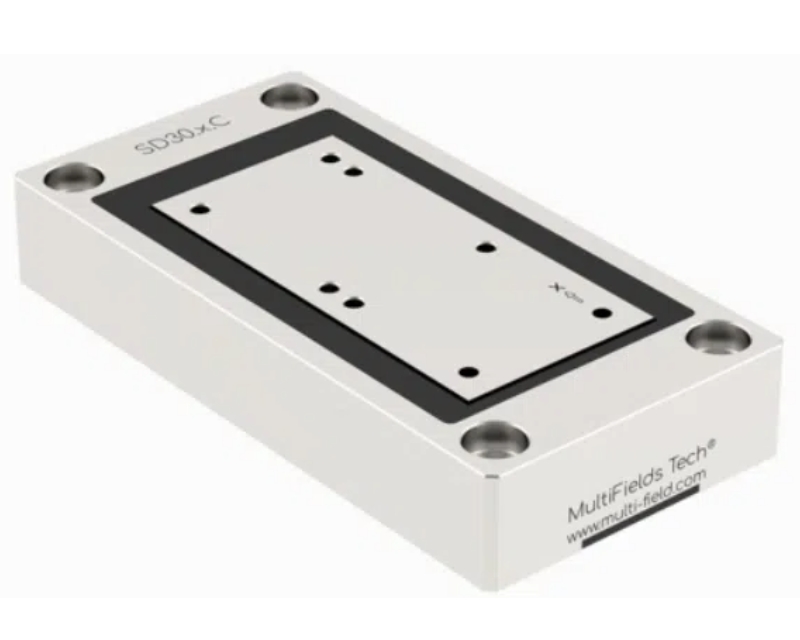

SD30.X.C Piezo Scanner
SD30.X.C — Piezo Scanners, stroke shorter than 1mm.
Check a reference product- Travel range(closed-loop)
- 30 μm
- Active axes
- X
- Mass
- 350 g
- Resolution(closed-loop)
- 0.2 nm
Product comparison
Check a reference product
Considering SD30.X.C for an existing setup? Send us the reference product number and your required specifications. Our engineers can help check the function, configuration, dimensions and interfaces.
Ask our engineers →Specifications
| Active axes | X |
|---|---|
| Mass | 350 g |
| Travel range(closed-loop) | 30 μm |
| Resolution(closed-loop) | 0.2 nm |
| Repeatability | 4 nm |
| Linearity | 0.0003 |
| Pitch/Yaw | 2 μrad |
| Resonant Frequency(no load) | 2.2 kHz |
| Resonant Frequency(300g) | 0.625 kHz |
| Stiffness | 18 N/um |
| Sensor Type | Capacitive Sensor |
| Cable | D-Sub 3W3 |
| Controller | MC-Archimedes.N series |
