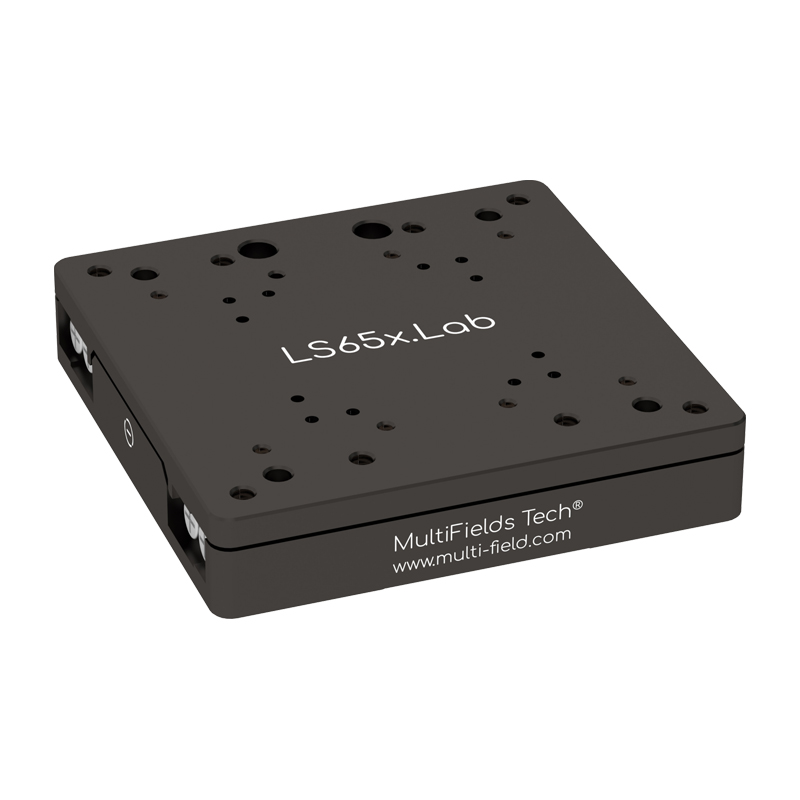

LS65x.Lab.E Linear Piezo Stage
LS65x.Lab.E — Linear Piezo Stages, stroke longer than 1mm.
Check a reference product- Travel range
- 30 mm
- Minimum Incremental Motion(Close-loop)
- 100 nm
- Max. Payload (horizontal mounting)
- 2 kg
- Active axes
- X
Product comparison
Check a reference product
Considering LS65x.Lab.E for an existing setup? Send us the reference product number and your required specifications. Our engineers can help check the function, configuration, dimensions and interfaces.
Ask our engineers →Specifications
| Active axes | X |
|---|---|
| Mass | 160 g |
| Travel range | 30 mm |
| Max Driving Frequency | 20 kHz |
| Max. Velocity | 20 mm/s |
| Minimum Incremental Motion(Close-loop) | 100 nm |
| Unidirection Repeatability | ±300 nm |
| Max. Push Force | 2 N |
| Holding Force | 3 N |
| Max. Payload (horizontal mounting) | 2 kg |
| Max. Payload (vertical mounting) | 100 g |
| Sensor Type | Optical Sensor |
| Sensor Resolution | 50 nm |
| Controller | MC-Newton.S series |
