6.5X zoom lens · Manual, detented
PMS-Z65F-RS
6.5X Detented Zoom Lens with Magnification Output
- Optical magnification: 0.7× – 4.5×
- Zoom ratio: 6.5:1
- Working distance: 87 ± 2 mm
- Max. sensor size: 2/3 inch
- Mount: C-mount
- Zoom: Manual, detented
Premium zoom optics, without the premium price.
Already have a quote for a zoom lens? Send it to us.
Will it suit your camera? Check it in the zoom lens selector.
0.7× – 4.5×
Optical magnification
6.5:1
Zoom ratio
87 ± 2 mm
Working distance
2/3 inch
Max. sensor size

Overview
About the PMS-Z65F-RS
- Optical magnification 0.7× to 4.5×, magnification ratio 6.5:1
- Large field of view on 2/3-inch cameras
- Compact structure, easy to assemble and install
Features
- Optical magnification 0.7× to 4.5×, magnification ratio 6.5:1
- Large field of view on 2/3-inch cameras
- Compact structure, easy to assemble and install
Applications
- Semiconductor
- Automation
- Electronic communication
Motorized control
An integrated motorized control system suits all of these zoom lenses: it drives one or two axes over RS232 or USB, and the underlying software code is supplied for OEM platforms.
Technical Specifications
PMS-Z65F-RS Specifications
General
| Optical magnification | 0.7× – 4.5× |
|---|---|
| Zoom ratio | 6.5:1 |
| Working distance | 87 ± 2 mm |
| Max. sensor size | 2/3 inch |
| Mount | C-mount |
| Zoom | Manual, detented |

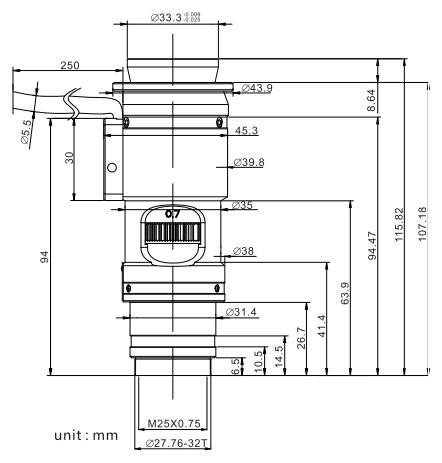

Drawings
Dimensions and System Components



Datasheet
Full specification sheet for the PMS-Z65F-RS.
