6.5X zoom lens · Manual, continuous

PMS-Z65C(A)

6.5X Continuous Zoom Lens, 80 mm Working Distance

  • Optical magnification: 0.7× – 4.5×
  • Zoom ratio: 6.5:1
  • Working distance: 80 ± 2 mm
  • Max. sensor size: 2/3 inch
  • Mount: C-mount
  • Zoom: Manual, continuous

Premium zoom optics, without the premium price.

Already have a quote for a zoom lens? Send it to us.

Will it suit your camera? Check it in the zoom lens selector.

0.7× – 4.5×

Optical magnification

6.5:1

Zoom ratio

80 ± 2 mm

Working distance

2/3 inch

Max. sensor size

PMS-Z65C(A) 6.5X Continuous Zoom Lens, 80 mm Working Distance

Overview

About the PMS-Z65C(A)

  • Optical magnification 0.7× to 4.5×, magnification ratio 6.5:1
  • Large field of view on 2/3-inch cameras
  • Compact structure, easy to assemble and install

Features

  • Optical magnification 0.7× to 4.5×, magnification ratio 6.5:1
  • Large field of view on 2/3-inch cameras
  • Compact structure, easy to assemble and install

Applications

  • Semiconductor
  • Automation
  • Electronic communication

Motorized control

An integrated motorized control system suits all of these zoom lenses: it drives one or two axes over RS232 or USB, and the underlying software code is supplied for OEM platforms.

Technical Specifications

PMS-Z65C(A) Specifications

General

Optical magnification0.7× – 4.5×
Zoom ratio6.5:1
Working distance80 ± 2 mm
Max. sensor size2/3 inch
MountC-mount
ZoomManual, continuous
Operating environment−10 °C to +50 °C, 30 to 80 % RH, non-condensing

Optical performance

MagnificationDepth of field (mm)N.A.F-numberResolution (µm)TV distortion
0.7×1.90.0311.611.180.019%
1.0×0.9520.04212.17.990.035%
1.5×0.440.0612.55.590.002%
2.0×0.290.0714.24.790.003%
2.5×0.230.0717.84.790.004%
3.0×0.160.08517.63.950.001%
3.5×0.130.08520.53.950.001%
4.0×0.120.08523.53.950.002%
4.5×0.10.08526.53.950.002%

Field of view (mm), diagonal × horizontal × vertical

Magnification2/3" sensor1/2" sensor1/3" sensor
0.7×15.71 × 12.57 × 9.4311.43 × 9.14 × 6.868.57 × 6.86 × 5.14
1.0×11.00 × 8.80 × 6.608.00 × 6.40 × 4.806.00 × 4.80 × 3.60
1.5×7.33 × 5.87 × 4.405.33 × 4.27 × 3.204.00 × 3.20 × 2.40
2.0×5.50 × 4.40 × 3.304.00 × 3.20 × 2.403.00 × 2.40 × 1.80
2.5×4.40 × 3.52 × 2.643.20 × 2.56 × 1.922.40 × 1.92 × 1.44
3.0×3.67 × 2.93 × 2.202.67 × 2.13 × 1.602.00 × 1.60 × 1.20
3.5×3.14 × 2.51 × 1.892.29 × 1.83 × 1.371.71 × 1.37 × 1.03
4.0×2.75 × 2.20 × 1.652.00 × 1.60 × 1.201.50 × 1.20 × 0.90
4.5×2.44 × 1.96 × 1.471.78 × 1.42 × 1.071.33 × 1.07 × 0.80

Drawings

Dimensions and System Components

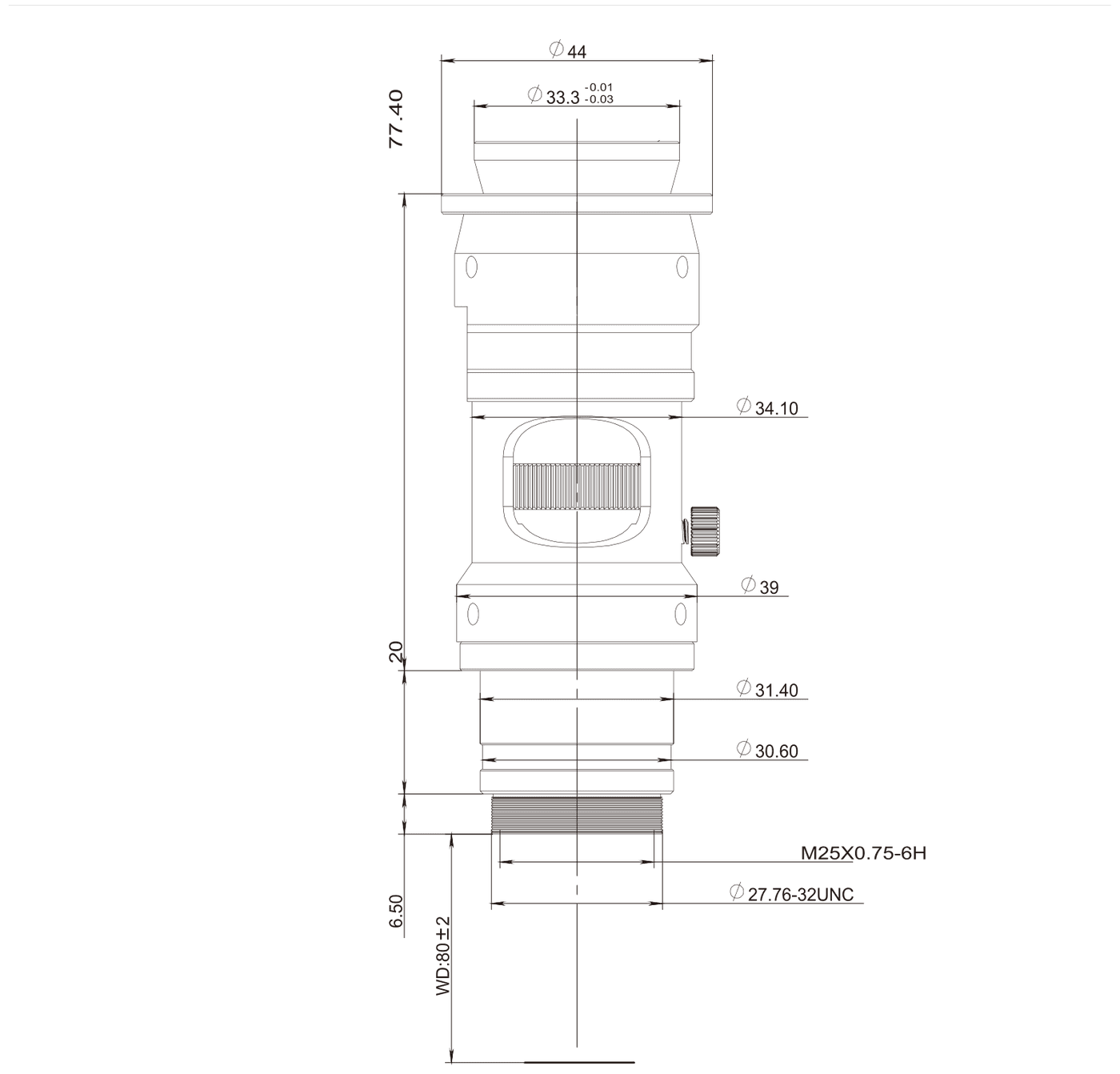

PMS-Z65C(A) dimension drawing
PMS-Z65C(A) dimension drawing (mm).
6.5X zoom lens system diagram
System diagram: TV adapter tubes, lens attachments, APO objectives with their coupler, LED illumination and the motorized controller box for each version.
Field of view of the 6.5X zoom lens with lens attachments and adapter tubes
Field of view and magnification with 0.25× to 2.0× lens attachments and 0.5×, 1.0× and 2.0× adapter tubes, for 2/3", 1/2" and 1/3" cameras. Values in brackets are theoretical; the image corners are dark there.

Datasheet

Full specification sheet for the PMS-Z65C(A).

Configure the PMS-Z65C(A) for your camera

Tell us your camera, field of view and working distance, and we will put together the lens, adapter tubes, attachments and illumination with a quotation.
