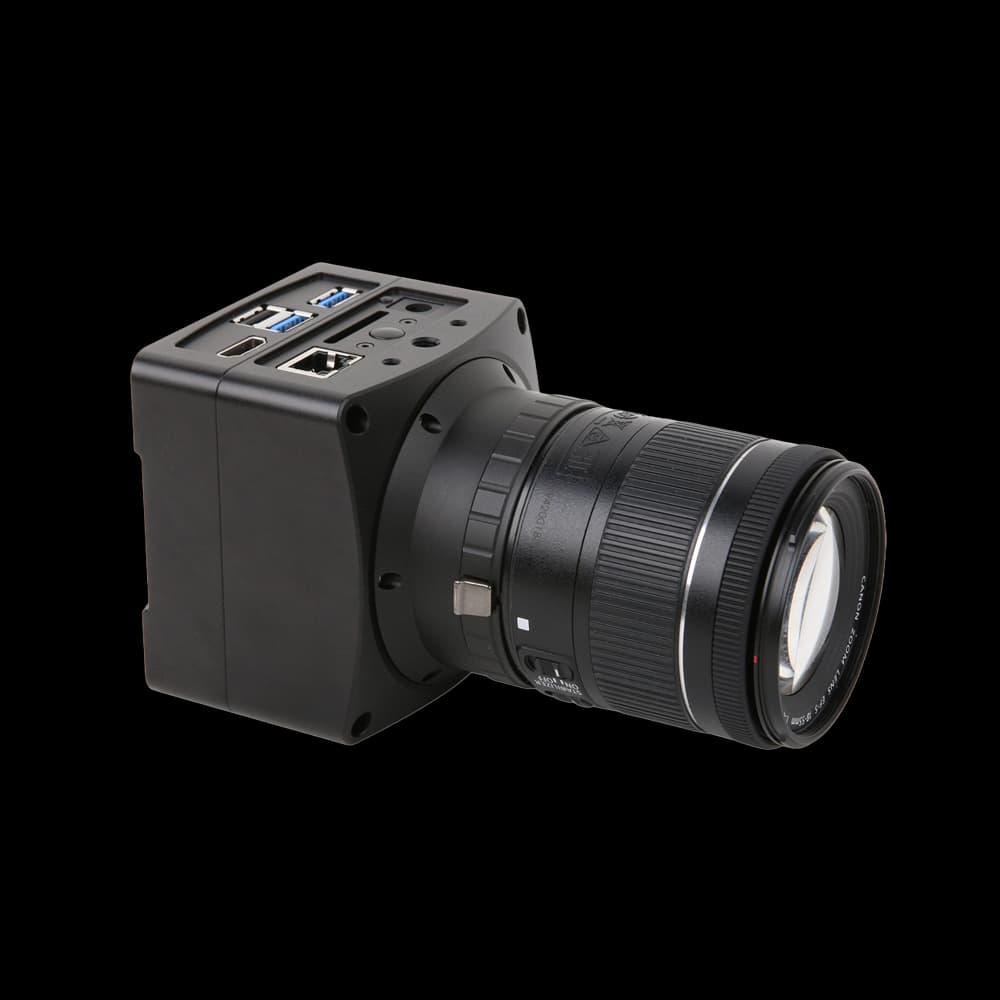

X8FCAM4K EF-Mount Autofocus Camera Series
X8FCAM4K22MPA_EFL combines a 22 MP Sony sensor, EF lens control, 4K output, HDMI, USB3.0 and Ethernet for high-resolution imaging.
Application context
X8FCAM4K22MPA_EFL: The Sony IMX571 (C) sensor, 22 MP (6240×3512) resolution, and 3.76 µm × 3.76 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The HDMI: 37 fps @ 3840×2160, 37 fps @ 1920×1080; USB: 15 fps @ 6240×3512, 37 fps @ 2688×1512, 37 fps @ 1920×1080; NETWORK: 30 fps @ 3840×2160, 37 fps @ 1920×1080, 37 fps @ 1280×720 frame-rate listing also sets the fastest full-frame acquisition regime.
X8FCAM4K22MPA_EFL: The Sony IMX571 (C) sensor, 22 MP (6240×3512) resolution, and 3.76 µm × 3.76 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The HDMI: 37 fps @ 3840×2160, 37 fps @ 1920×1080; USB: 15 fps @ 6240×3512, 37 fps @ 2688×1512, 37 fps @ 1920×1080; NETWORK: 30 fps @ 3840×2160, 37 fps @ 1920×1080, 37 fps @ 1280×720 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
18 specification rows
The X8FCAM4K22MPA_EFL is an intelligent imaging camera in the X8FCAM4K series, built around a Sony IMX571 (C) sensor, 22 MP (6240×3512) resolution, 3.76 µm × 3.76 µm pixels, frame rates up to HDMI: 37 fps @ 3840×2160, 37 fps @ 1920×1080; USB: 15 fps @ 6240×3512, 37 fps @ 2688×1512, 37 fps @ 1920×1080; NETWORK: 30 fps @ 3840×2160, 37 fps @ 1920×1080, 37 fps @ 1280×720, a HDMI2.0 / USB3.0 / Ethernet / Wi-Fi interface. It suits x8fcam4k ef-mount autofocus camera series where reliable imaging performance and interface compatibility matter.
| Product Model | X8FCAM4K22MPA_EFL |
|---|---|
| Product Series | X8FCAM4K EF-Mount Autofocus Camera Series |
| Autofocus | Supported |
| Sensor Model | Sony IMX571 (C) |
|---|---|
| Sensor Size | 1.7" (23.46 × 13.21 mm) |
| Pixel Size | 3.76 µm × 3.76 µm |
| Maximum Resolution | 22 MP (6240×3512) |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Output Interfaces | HDMI2.0 / USB3.0 / Ethernet / Wi-Fi |
|---|---|
| Frame Rate | HDMI: 37 fps @ 3840×2160, 37 fps @ 1920×1080; USB: 15 fps @ 6240×3512, 37 fps @ 2688×1512, 37 fps @ 1920×1080; NETWORK: 30 fps @ 3840×2160, 37 fps @ 1920×1080, 37 fps @ 1280×720 |
| Storage Support | SD Card / USB Flash Drive |
| Software Support | XCamView / ToupView / ToupLite |
| Power Supply | DC 12 V / 2 A |
| Weight | 1.7 kg (including packaging) |
|---|---|
| Operating Temperature | 10 °C to +50 °C |
| Operating System | Windows 8/10/11 / Linux / macOS / Android / iOS |
|---|---|
| Certification | CE / FCC / RoHS |
System integration
Use these checks to connect X8FCAM4K22MPA_EFL to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Sensor: Sony IMX571 (C) · Resolution: 22 MP (6240×3512). Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: HDMI: 37 fps @ 3840×2160, 37 fps @ 1920×1080; USB: 15 fps @ 6240×3512, 37 fps @ 2688×1512, 37 fps @ 1920×1080; NETWORK: 30 fps @ 3840×2160, 37 fps @ 1920×1080, 37 fps @ 1280×720 · Interface: HDMI2.0 / USB3.0 / Ethernet / Wi-Fi. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
The IMX571 appears in 16 models across the catalogue, differing in cooling, shutter, interface and colour filter. Compare them side by side before settling on a variant.
