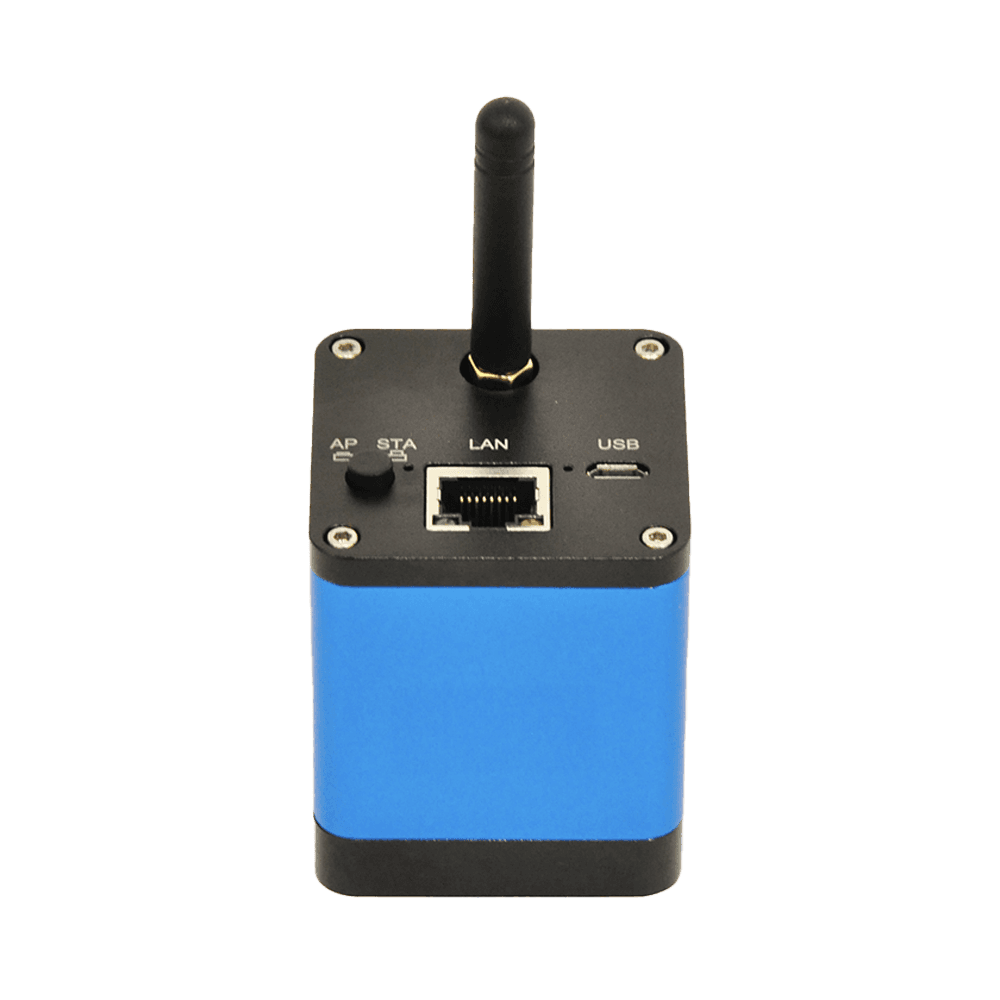

Color · Multi-interface camera
WEUCAM4MPA
- Sensor
- Sony IMX347(C) 1/1.8" (7.8×4.38 mm)
- Frame Rate
- USB: 30 fps @ 2688×1512; LAN/Wi-Fi: 30 fps @ 2688×1512
- Interface
- USB2.0 LAN Wi-Fi 802.11ac
- Resolution
- 4MP (2688×1512)
- Pixel Size
- 2.9 µm × 2.9 µm
Complete Specifications
Sensor & Imaging
| Sensor/Size | Sony IMX347(C) 1/1.8" (7.8×4.38 mm) |
|---|---|
| Effective Pixels | 2.9 µm × 2.9 µm |
| Sensor | Sony IMX347(C) 1/1.8" (7.8×4.38 mm) |
| Resolution | 4MP (2688×1512) |
| Pixel Size | 2.9 µm × 2.9 µm |
Performance
| Frame Rate (fps) | USB: 30 fps @ 2688×1512; LAN/Wi-Fi: 30 fps @ 2688×1512 |
|---|---|
| Frame Rate | USB: 30 fps @ 2688×1512; LAN/Wi-Fi: 30 fps @ 2688×1512 |
Interface & Connectivity
| Output Resolution | 4MP (2688×1512) |
|---|---|
| Output Interface | USB2.0 LAN Wi-Fi 802.11ac |
| Storage Support | No local storage |
| Interface | USB2.0 LAN Wi-Fi 802.11ac |
Cooling & Mechanical
| Lens Mount | C-mount |
|---|
Other Published Specifications
| Model | WEUCAM4MPA |
|---|---|
| Featured Functions | Triple-interface output Flexible connectivity options AP/STA modes Network bandwidth adjustment |
Technical Files & Images
Datasheet (PDF)Technical images (2)
Related Products
| Selection parameter | WEUCAM4MPA (current) | C3CMOS04100KPASame IMX347 sensor | U3CMOS04100KPASame IMX347 sensor | UA410CASame IMX347 sensor |
|---|---|---|---|---|
| Sensor | Sony IMX347(C) 1/1.8" (7.8×4.38 mm) | IMX347(C) | IMX347 (C) | IMX347(C) |
| Image type | Color | Color | Color | Color |
| Resolution | 4MP (2688×1512) | 4.1M (2688×1536) | 4.1M (2688×1536) | 4.1M (2688×1536) |
| Pixel size | 2.9 µm × 2.9 µm | 2.9 µm × 2.9 µm | 2.9 µm × 2.9 µm | 2.9 µm × 2.9 µm |
| Frame / line rate | USB: 30 fps @ 2688×1512; LAN/Wi-Fi: 30 fps @ 2688×1512 | 20 fps @ 2688×1536; 30 fps @ 2048×1536; 40 fps @ 1536×1536; 100 fps @ 1344×768 | 20 fps @ 2688×1536; 30 fps @ 2048×1536; 40 fps @ 1536×1536; 100 fps @ 1344×768 | 8.5 fps @ 2688×1536; 11.5 fps @ 2048×1536; 15 fps @ 1536×1536; 34 fps @ 1344×768 |
| Interface | USB2.0 LAN Wi-Fi 802.11ac | USB3.0 | USB3.0 | USB2.0 |
