Scientific Camera

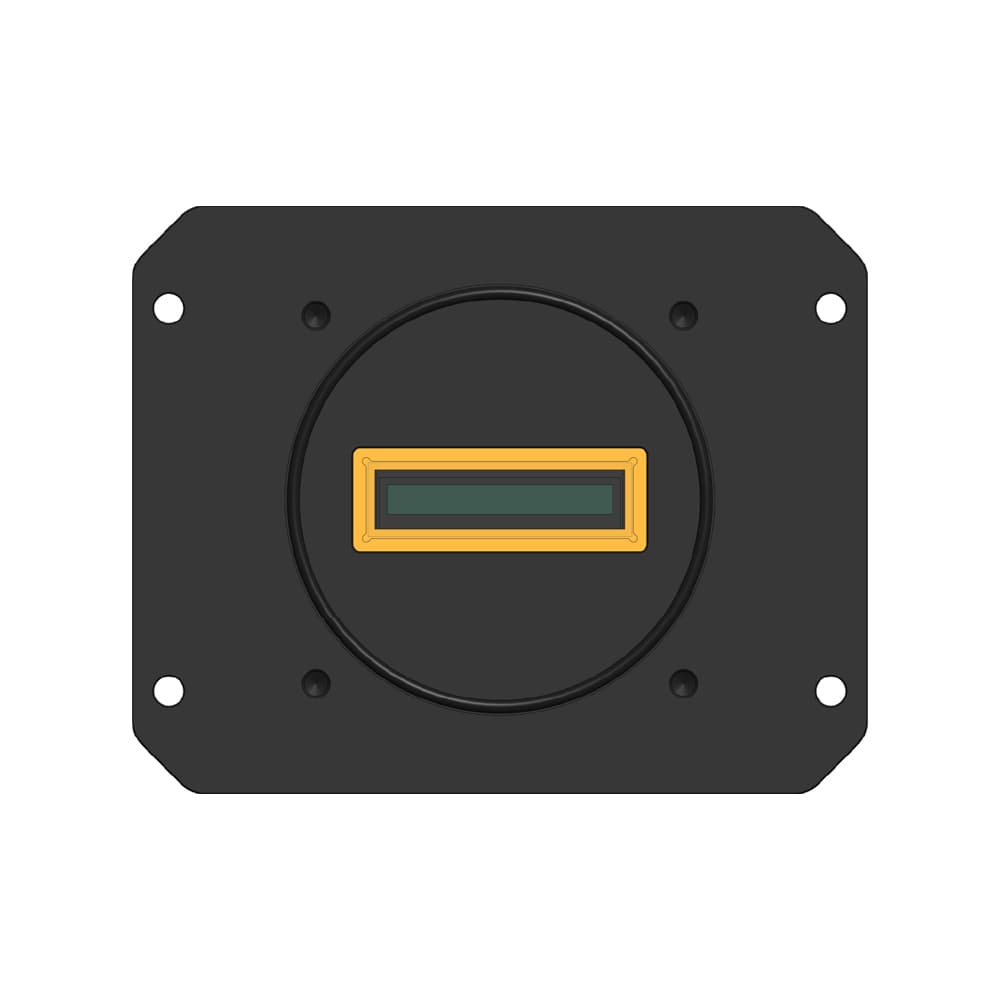

sCCD01AM E2V sCCD camera provides deep cooling, low-noise CCD imaging, high sensitivity and SDK support for scientific applications.
Application context
sCCD01AM: The E2V CCD261 sensor, 2048 × 1 resolution, and 15 µm × 15 µm pixels defines the sensitivity, sampling and field coverage available for Scientific imaging. The 12 fps @ 2048 × 1 frame-rate listing also sets the fastest full-frame acquisition regime.
sCCD01AM: The E2V CCD261 sensor, 2048 × 1 resolution, and 15 µm × 15 µm pixels defines the sensitivity, sampling and field coverage available for Instrument integration. The 12 fps @ 2048 × 1 frame-rate listing also sets the fastest full-frame acquisition regime.
Specifications
40 specification rows
The sCCD01AM is a scientific camera in the E2V series, built around a E2V CCD261 sensor, 2048 × 1 resolution, 15 µm × 15 µm pixels, frame rates up to 12 fps @ 2048 × 1, a USB3 interface. It suits scientific camera where reliable imaging performance and interface compatibility matter.
| Model | sCCD01AM |
|---|---|
| Sensor | E2V CCD261 |
| Sensor Type | CCD image sensor |
| Shutter Type | Available on request |
| Color Type | Monochrome |
| Resolution | 2048 × 1 |
| Sensor Size | 30.7 mm × 4.0 mm |
| Sensor Diagonal | 1.9" (30.97 mm) |
| Pixel Size | 15 µm × 15 µm |

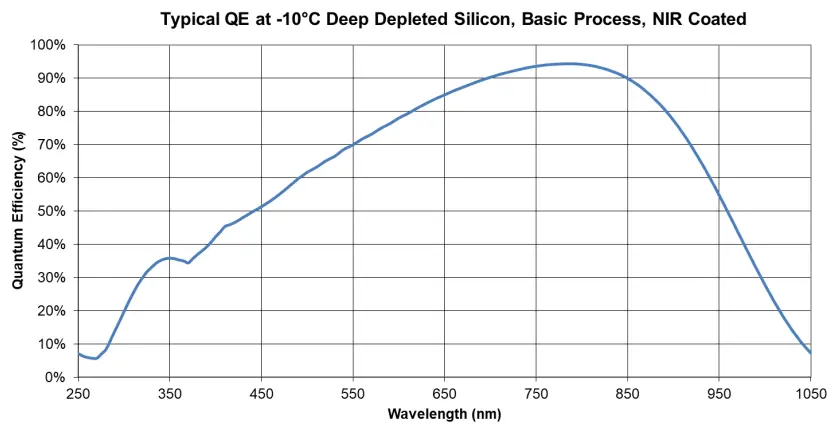

| Spectral Range | 300–1000 nm |
| Frame Rate | 12 fps @ 2048 × 1 |
|---|---|
| Bit Depth | 8-bit / 16-bit |
| Memory | 512 MB (4 Gb) |
| Conversion Gain | 7 e-/ADU |
| Dynamic Range | 86.5 dB |
| Readout Noise | 22e- rms |
| Full Well Capacity | 459 ke- |
| SNR | 56.6 dB |
| Sensitivity | Available on request |
| Dark Current | 184 e-/pixel/s @ -35 °C @ 2048 × 1 binning |
| Quantum Efficiency | 95% @ 800 nm |
| Dark Signal Non-Uniformity | Available on request |
| Photo Response Non-Uniformity | Available on request |
| Exposure Time Range | ≤60 mins |
| Gain Range | Available on request |
| GPIO | Available on request |
|---|
| Data Interface | USB3 |
|---|---|
| Data Format | 8-bit / 16-bit |
| Power Supply | Powered by a 12 V / 5 A power adapter |
| Cooling Capacity | 55 °C below ambient |

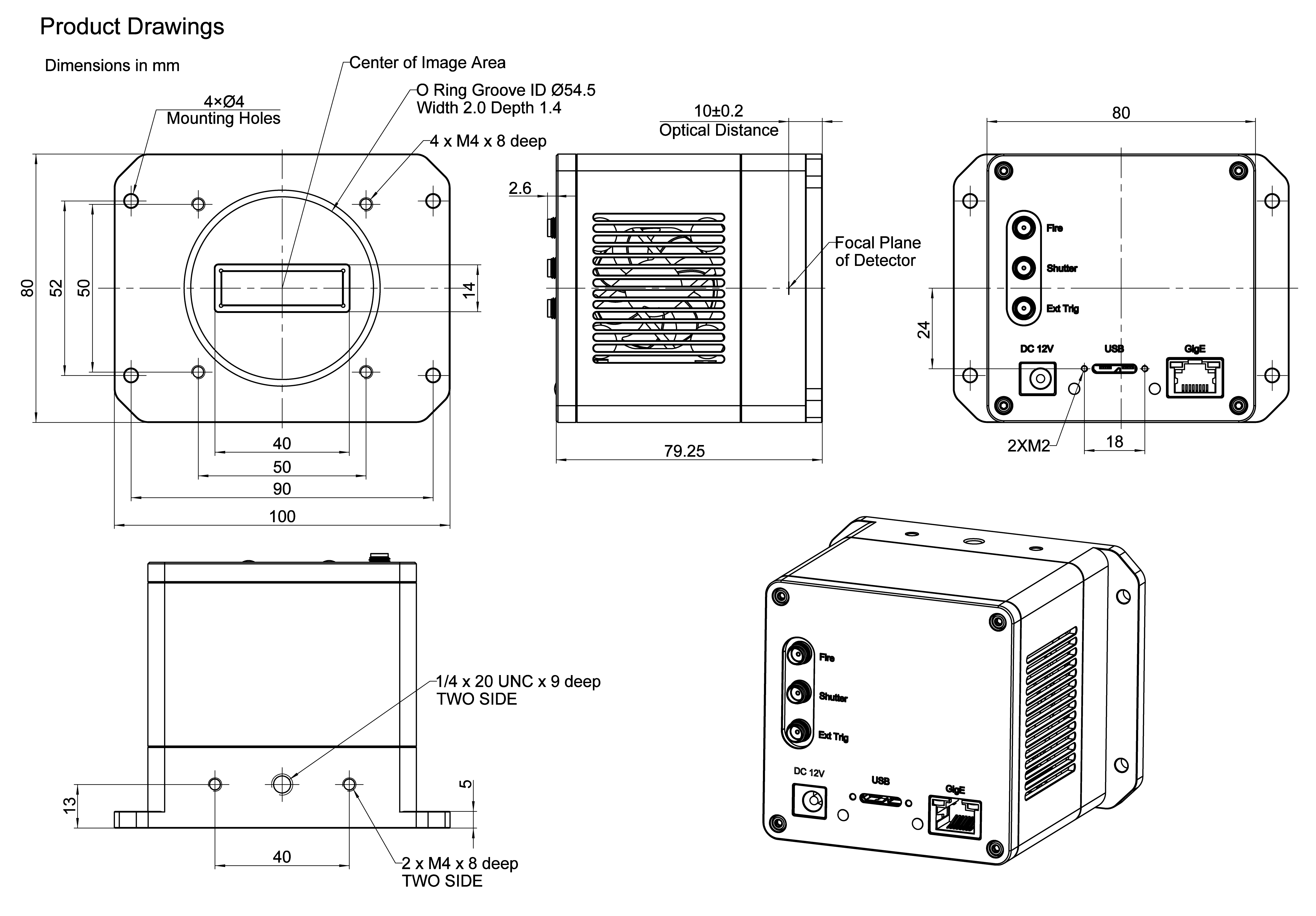

| Dimensions | 100 × 80 × 79.25 mm |
|---|---|
| Weight | 800 g |
| Operating Temperature | 20 °C to +45 °C |
|---|---|
| Operating Humidity | 0–95% |
| Storage Temperature | 40 °C to +60 °C |
| Storage Humidity | Available on request |
| OS Support | Windows/Linux |
|---|---|
| Software | ToupView, CLView based on Delsa frame grabber, LabVIEW, MATLAB, etc. |
| SDK Support | C, C++, C#, Python |
| Certification | Available on request |
System integration
Use these checks to connect sCCD01AM to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
Technical FAQ
Sensor: E2V CCD261 · Resolution: 2048 × 1. Match pixel pitch to the diffraction-limited spot the optics deliver. Sampling finer than the optics resolve multiplies data volume without adding information; sampling coarser discards resolution you have paid for.
Frame Rate: 12 fps @ 2048 × 1 · Interface: USB3. Confirm the host can sustain the interface bandwidth continuously, not in burst. A camera that outruns the write path stalls acquisition rather than dropping quietly to a lower rate.
GPIO: Available on request. Confirm edge polarity, pulse-width limits and whether each line is opto-isolated before connecting TTL or GPIO signals. A software exposure command is not equivalent to a hardware trigger.
Dynamic Range: 86.5 dB · Full Well Capacity: 459 ke-. Judge these figures at the exposure time you will actually use. Cooling matters where dark current accumulates over seconds; read noise dominates short exposures where it never does.
Tell us your sensor, resolution, spectral range, frame-rate, interface, and software requirements and we will confirm the matching configuration and lead time.
Compare the sCCD01AM with other E2V models and scientific cameras in the range.
