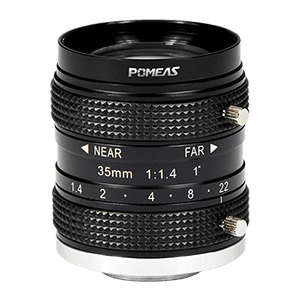

PMS-35LC5M — 35 mm FA lens
PMS-35LC5M 35 mm fa lens in the 5 MP · 1-inch FA lenses range. Focal length 35mm; iris range F1.4- F22. Focus range 0.3m-∞.
- Focal Length
- 35mm
- Iris Range
- F1.4- F22
- Sensor Format
- 1"
- Image Circle
- φ16mm
- Lens Mount
- C-mount
- Focus Range
- 0.3m-∞
Complete specifications
| Sensor Format | 1" |
|---|---|
| Sensor Dimensions | 12.8mm×9.6mm |
| Image Circle | φ16mm |
| Focal Length | 35mm |
| Iris Range | F1.4- F22 |
| Focus Range | 0.3m-∞ |
| Distortion | -0.07%@y = 5.5mm -0.06%@y = 4.0mm |
| Back Focal Length | 12.82mm |
| Lens Mount | C-mount |
| Filter Thread | M37.5×0.5mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Field of View (D×H×V) — 1" | 18.2°×14.1° |
| Field of View (D×H×V) — 2/3" | 12.9°×9.6° |
| Resolution Rating | 5 MP |

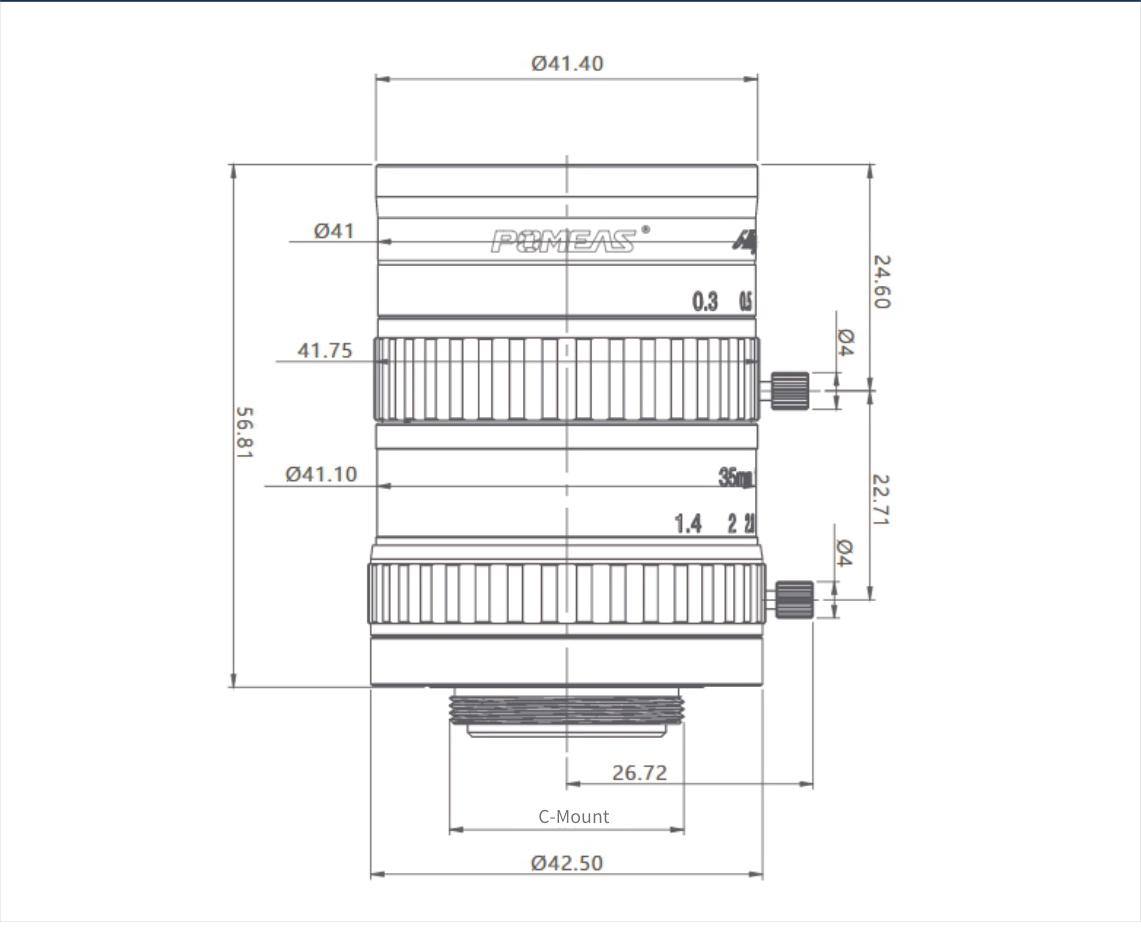

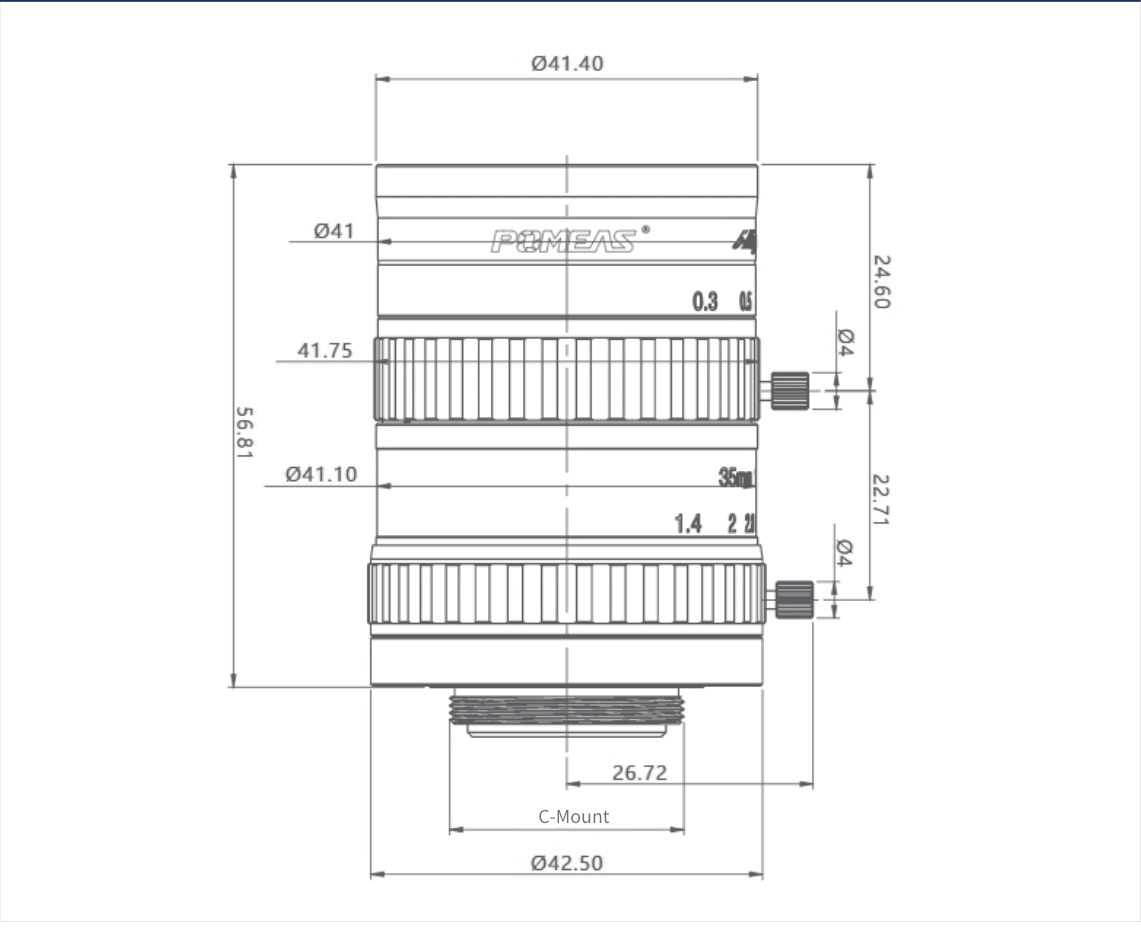

Technical drawings
