PMS-12LC5M — 12 mm FA lens
PMS-12LC5M 12 mm fa lens in the 5 MP · 1-inch FA lenses range. Focal length 12 mm; iris range F1.6- F22. Focus range 1m-∞.
- Focal Length
- 12 mm
- Iris Range
- F1.6- F22
- Sensor Format
- 1"
- Image Circle
- φ16mm
- Lens Mount
- C-mount
- Focus Range
- 1m-∞
Complete specifications
| Sensor Format | 1" |
|---|---|
| Sensor Dimensions | 12.8mm×9.6mm |
| Image Circle | φ16mm |
| Focal Length | 12 mm |
| Iris Range | F1.6- F22 |
| Focus Range | 1m-∞ |
| Distortion | -0.04%@y = 8.0mm |
| Back Focal Length | 13.54mm |
| Lens Mount | C-mount |
| Filter Thread | M52.0×0.72mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Field of View (D×H×V) — 1" | 57.1°×44.1° |
| Field of View (D×H×V) — 2/3" | 40.6°×30.9° |
| Resolution Rating | 5 MP |

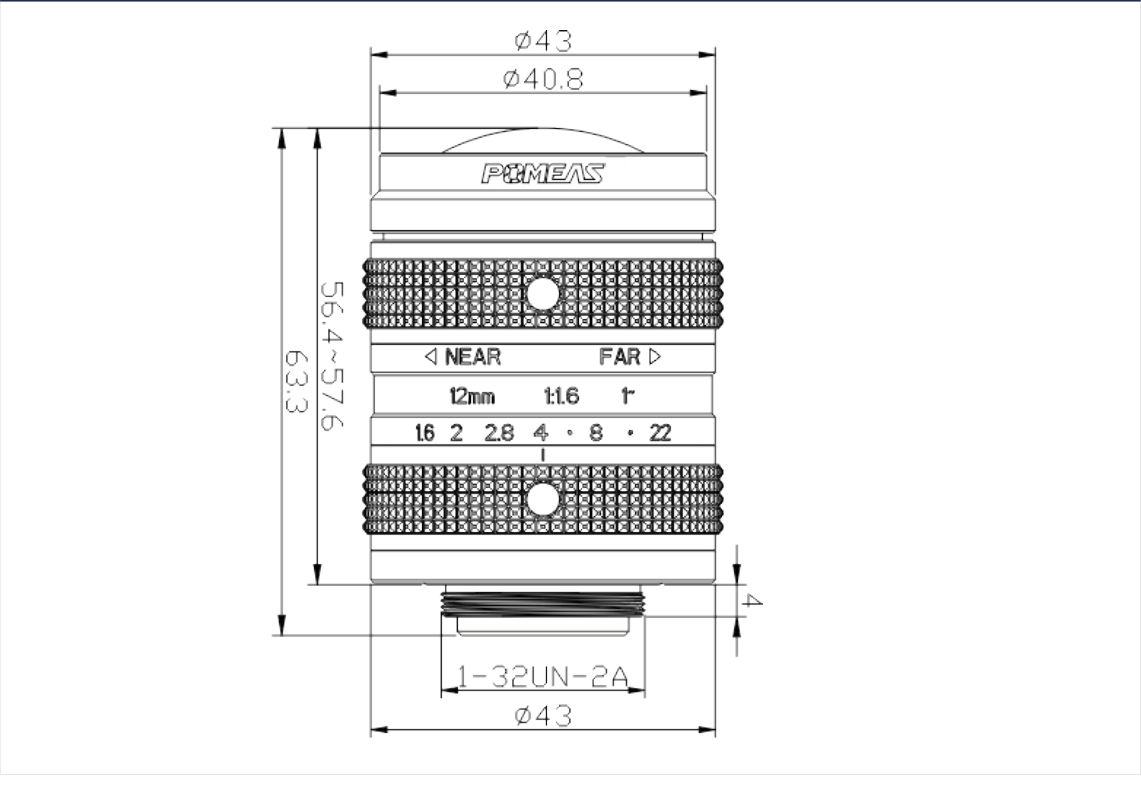

Technical drawings
