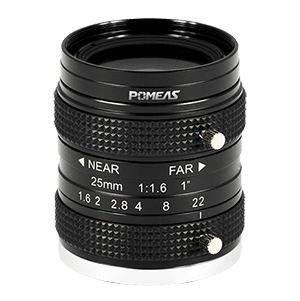

PMS-25LC5M — 25 mm FA lens
PMS-25LC5M 25 mm fa lens in the 5 MP · 1-inch FA lenses range. Focal length 25 mm; iris range F1.6- F22. Focus range 1m-∞.
- Focal Length
- 25 mm
- Iris Range
- F1.6- F22
- Sensor Format
- 1"
- Image Circle
- φ16mm
- Lens Mount
- C-mount
- Focus Range
- 1m-∞
Complete specifications
| Sensor Format | 1" |
|---|---|
| Sensor Dimensions | 12.8mm×9.6mm |
| Image Circle | φ16mm |
| Focal Length | 25 mm |
| Iris Range | F1.6- F22 |
| Focus Range | 1m-∞ |
| Distortion | -2.06%@y = 8.0mm -0.98%@y = 5.5mm |
| Back Focal Length | 12.69mm |
| Lens Mount | C-mount |
| Filter Thread | M33.7×0.5mm |
| Operating Environment | Temperature-10°C~+50°C; Humidity: 30-80% (no Condensation) |
| Field of View (D×H×V) — 1" | 36.2°×29.0°×21.8° |
| Field of View (D×H×V) — 2/3" | 25.0°×20.0°×15.0° |
| Resolution Rating | 5 MP |

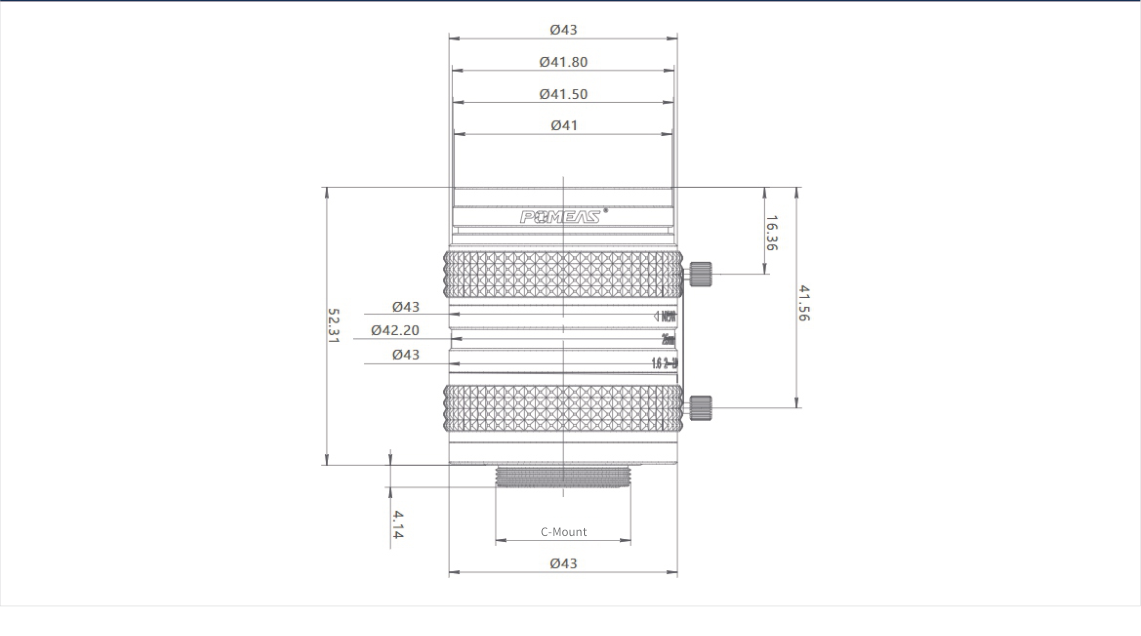

Technical drawings
