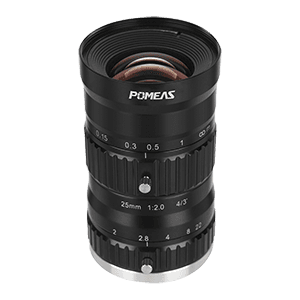

PMS-25LC10M — 25 mm FA lens
PMS-25LC10M 25 mm fa lens in the 10 MP · 4/3-inch FA lenses range. Focal length 25mm; iris range F2.0- F22. Focus range 0.15m-∞.
- Focal Length
- 25mm
- Iris Range
- F2.0- F22
- Sensor Format
- 4/3"
- Image Circle
- φ22mm
- Lens Mount
- C-mount
- Focus Range
- 0.15m-∞
Complete specifications
| Sensor Format | 4/3" |
|---|---|
| Sensor Dimensions | 17.6mm×13.2mm |
| Image Circle | φ22mm |
| Focal Length | 25mm |
| Iris Range | F2.0- F22 |
| Focus Range | 0.15m-∞ |
| Distortion | -064%@y = 11.5mm |
| Back Focal Length | 22mm |
| Lens Mount | C-mount |
| Filter Thread | M46.0XP0.75mm |
| Field of View (D×H×V) — 4/3" | 40.6°×31.0° |
| Field of View (D×H×V) — 1" | 28.8°×21.8° |
| Field of View (D×H×V) — 2/3" | 20.0°×15.1° |
| Resolution Rating | 10 MP |

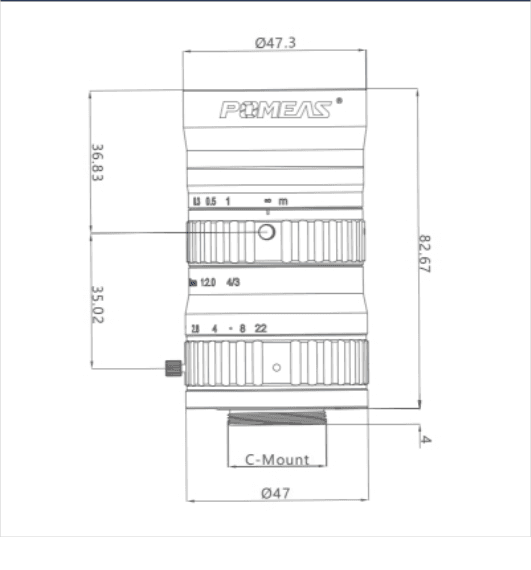

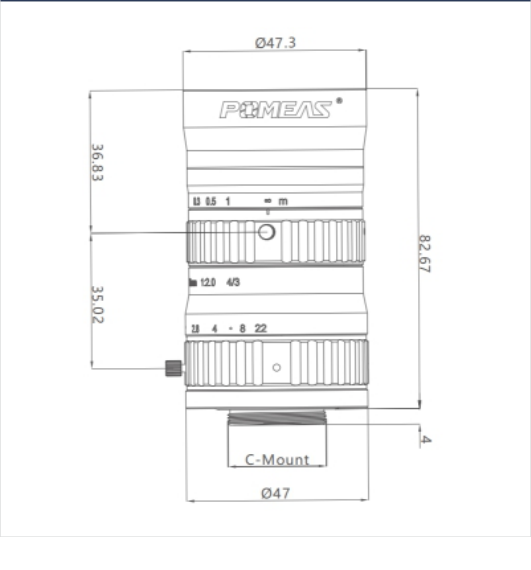

Technical drawings
