PMS-12LC10M — 12.0 mm FA lens
PMS-12LC10M 12.0 mm fa lens in the 10 MP · 4/3-inch FA lenses range. Focal length 12.0mm; iris range F2.0- F22. Focus range 0.15m~∞.
- Focal Length
- 12.0mm
- Iris Range
- F2.0- F22
- Sensor Format
- 4/3"
- Image Circle
- φ22mm
- Lens Mount
- C-mount
- Focus Range
- 0.15m~∞
Complete specifications
| Sensor Format | 4/3" |
|---|---|
| Sensor Dimensions | 17.6mm×13.2mm |
| Image Circle | φ22mm |
| Focal Length | 12.0mm |
| Iris Range | F2.0- F22 |
| Focus Range | 0.15m~∞ |
| Distortion | -2.05%@y = 11.5mm |
| Back Focal Length | 18.8mm |
| Lens Mount | C-mount |
| Filter Thread | M77×0.75mm |
| Field of View (D×H×V) — 4/3" | 89.1°×75.6°×61.2° |
| Field of View (D×H×V) — 1" | 69.0°×57.3°×44.3° |
| Field of View (D×H×V) — 1/2" | 37.4°×30.2°×22.7° |
| Resolution Rating | 10 MP |

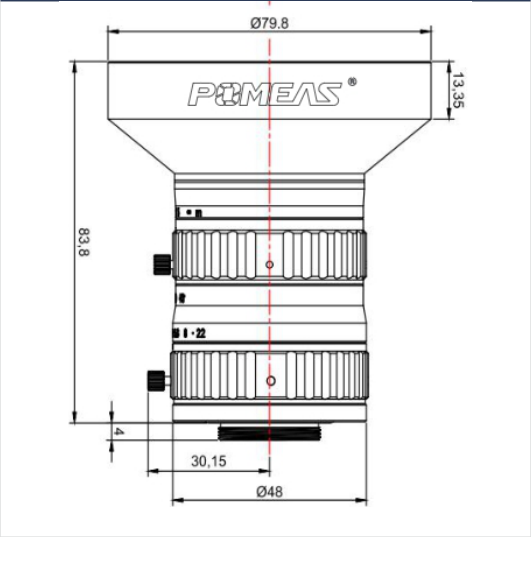

Technical drawings
