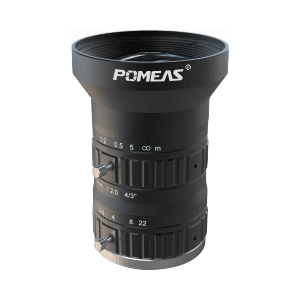

PMS-16LC10M — 16 mm FA lens
PMS-16LC10M 16 mm fa lens in the 10 MP · 4/3-inch FA lenses range. Focal length 16mm; iris range F2.0- F22. Focus range 0.1m-∞.
- Focal Length
- 16mm
- Iris Range
- F2.0- F22
- Sensor Format
- 4/3"
- Image Circle
- φ22mm
- Lens Mount
- C-mount
- Focus Range
- 0.1m-∞
Complete specifications
| Sensor Format | 4/3" |
|---|---|
| Sensor Dimensions | 17.6mm×13.2mm |
| Image Circle | φ22mm |
| Focal Length | 16mm |
| Iris Range | F2.0- F22 |
| Focus Range | 0.1m-∞ |
| Distortion | -2.81%@y = 11.0mm |
| Back Focal Length | 21mm |
| Lens Mount | C-mount |
| Filter Thread | M58.0×0.75mm |
| Field of View (D×H×V) — 4/3" | 61.0°×47.2° |
| Field of View (D×H×V) — 1" | 44.2°×33.6° |
| Field of View (D×H×V) — 2/3" | 31.0°×23.4° |
| Resolution Rating | 10 MP |

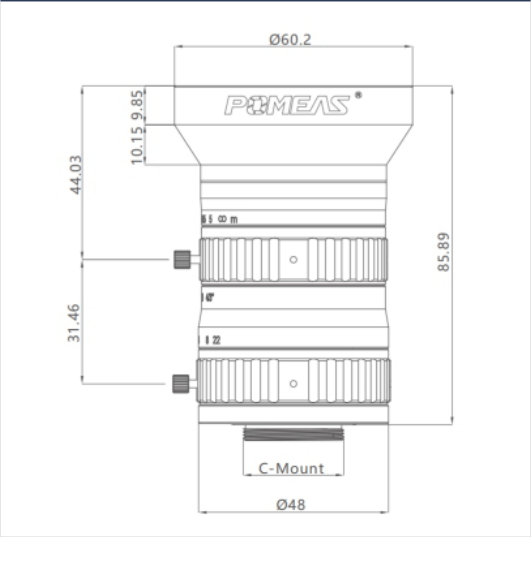

Technical drawings
