Results

7 cameras matched

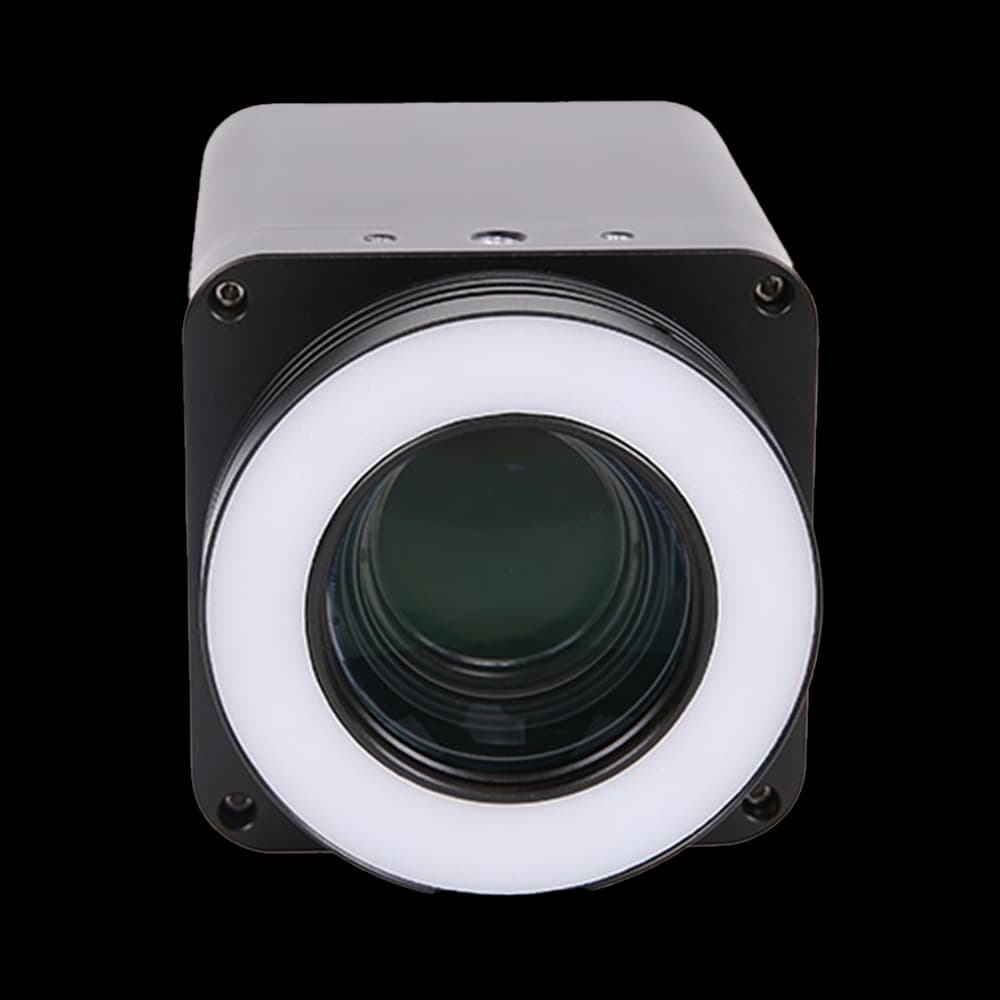

AFDM101 (Discontinued)
Autofocus CameraColor
AFDM101 (Discontinued)

Continuous-zoom autofocus microscopes (AFDM)

Sensor
Sony IMX462LQR-C
Resolution
2MP (1920×1080)
Pixel size
2.9 µm × 2.9 µm
Frame rate
HDMI: 60 fps@1920×1080
Mount
Model-specific
Interface
HDMI1.4, USB2.0
Sensor format
1/2.8-inch
Sensor size
1/2.8" (5.57×3.13 mm)
Band
380–700 nm (visible)
Shutter
Rolling
Open page ↗Datasheet

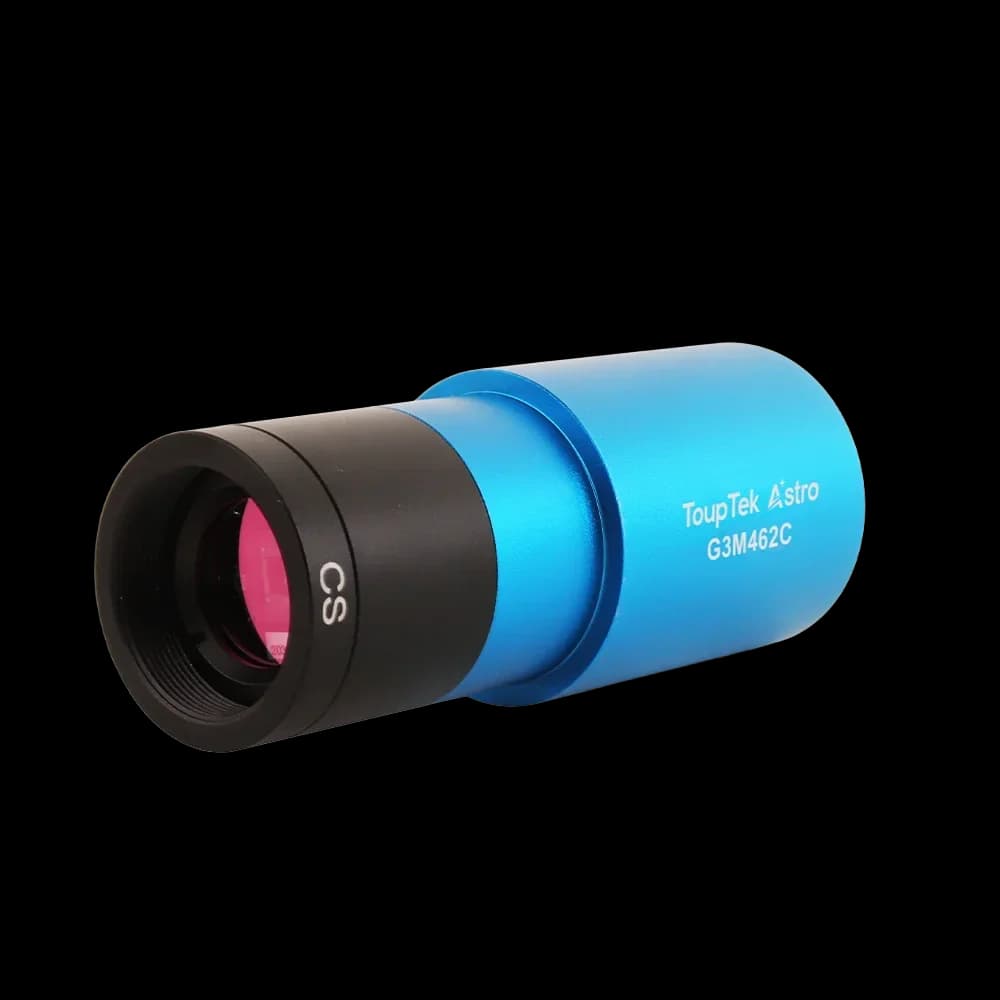

G3M462C
Astronomy CameraColor
G3M462C

Astronomy Camera (G3M planetary / guide)

Sensor
Sony IMX462 color CMOS — Back-illuminated color CMOS
Resolution
2.1 MP (1920 × 1080)
Pixel size
2.9 µm
Frame rate
152 fps
Mount
1.25-inch telescope nosepiece / C-mount
Interface
USB 3.0
Sensor format
1/2.8-inch
Sensor size
1/2.8-inch, 5.57 × 3.13 mm
Band
380–690 nm
Shutter
Rolling
Open page ↗

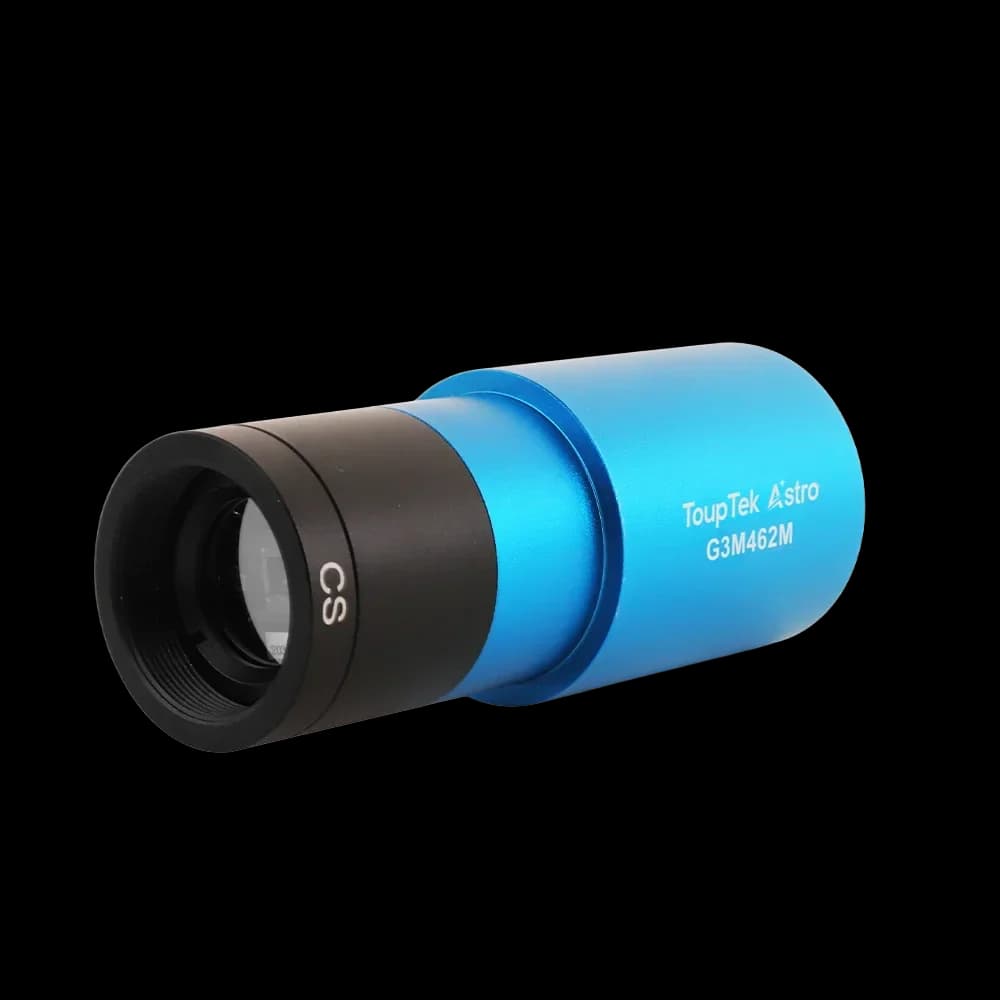

G3M462M
Astronomy CameraMonochrome
G3M462M

Astronomy Camera (G3M planetary / guide)

Sensor
Sony IMX462 monochrome CMOS — Back-illuminated monochrome CMOS
Resolution
2.1 MP (1920 × 1080)
Pixel size
2.9 µm
Frame rate
152 fps
Mount
1.25-inch telescope nosepiece / C-mount
Interface
USB 3.0
Sensor format
1/2.8-inch
Sensor size
1/2.8-inch, 5.57 × 3.13 mm
Band
380–1100 nm
Shutter
Rolling
Open page ↗
GPM462C
Astronomy CameraColor
GPM462C

Astronomy Camera (GPM guide)

Sensor
Sony IMX462 color CMOS — Back-illuminated color CMOS
Resolution
2.1 MP (1920 × 1080)
Pixel size
2.9 µm
Frame rate
17.8 fps
Mount
1.25-inch telescope nosepiece / CS-mount
Interface
USB 2.0 + ST4
Sensor format
1/2.8-inch
Sensor size
1/2.8-inch, 5.57 × 3.13 mm
Band
380–690 nm
Shutter
Rolling
Open page ↗

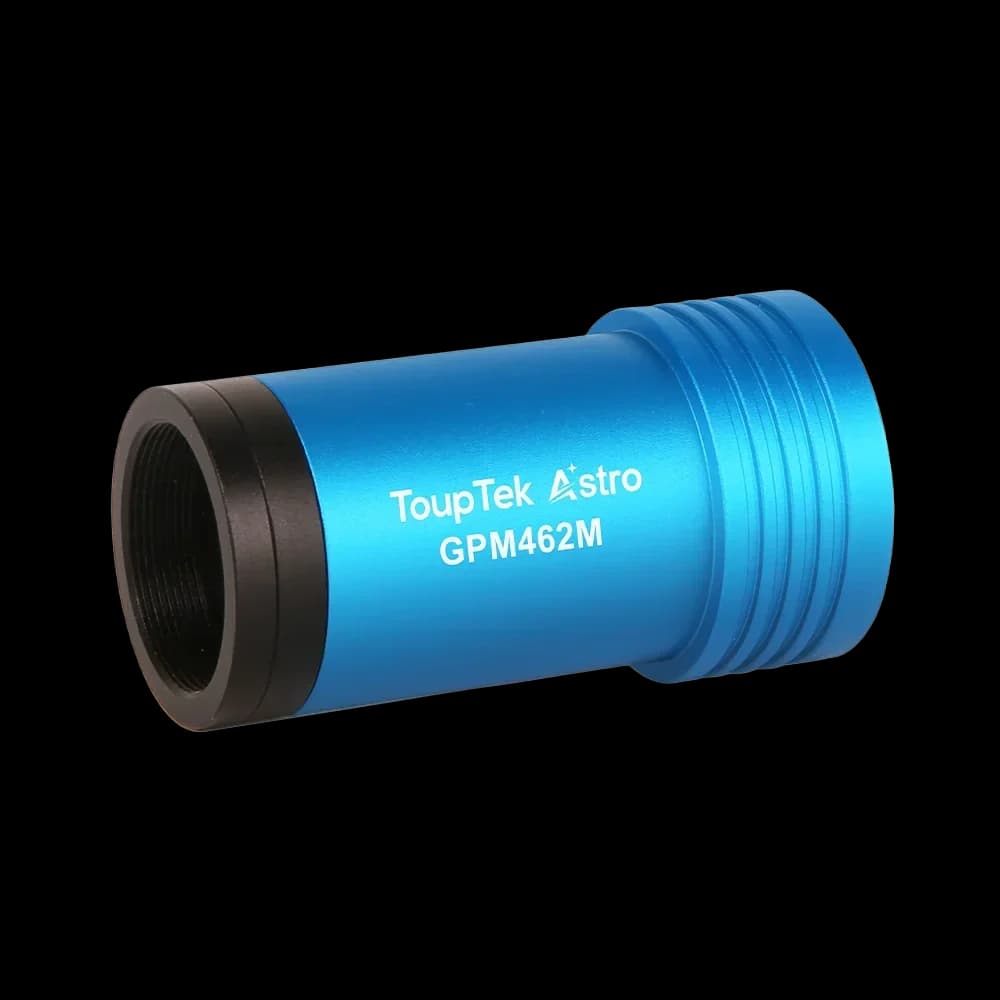

GPM462M
Astronomy CameraMonochromeDiscontinued
GPM462M

Astronomy Camera (GPM guide)

Sensor
Sony IMX462 monochrome CMOS — Back-illuminated monochrome CMOS
Resolution
2.1 MP (1920 × 1080)
Pixel size
2.9 µm
Frame rate
17.8 fps
Mount
1.25-inch telescope nosepiece / CS-mount
Interface
USB 2.0 + ST4
Sensor format
1/2.8-inch
Sensor size
1/2.8-inch, 5.57 × 3.13 mm
Band
380–1100 nm
Shutter
Rolling
Open page ↗
IUA2100KPA(NIR)
Industrial / Analytical CameraColor
IUA2100KPA(NIR)

USB3.0 / 10GigE industrial sensor configurations (IUA)

Sensor
Sony IMX462LQR
Resolution
2.1MP (1920×1080)
Pixel size
2.9 µm × 2.9 µm
Frame rate
120.3 fps @ 1920×1080
Mount
C-mount
Interface
USB3.0 (USB3.1 GEN1)
Sensor format
1/2.5-inch
Sensor size
5.57 mm × 3.13 mm
Band
380–700 nm (visible)
Shutter
Rolling
Open page ↗Datasheet

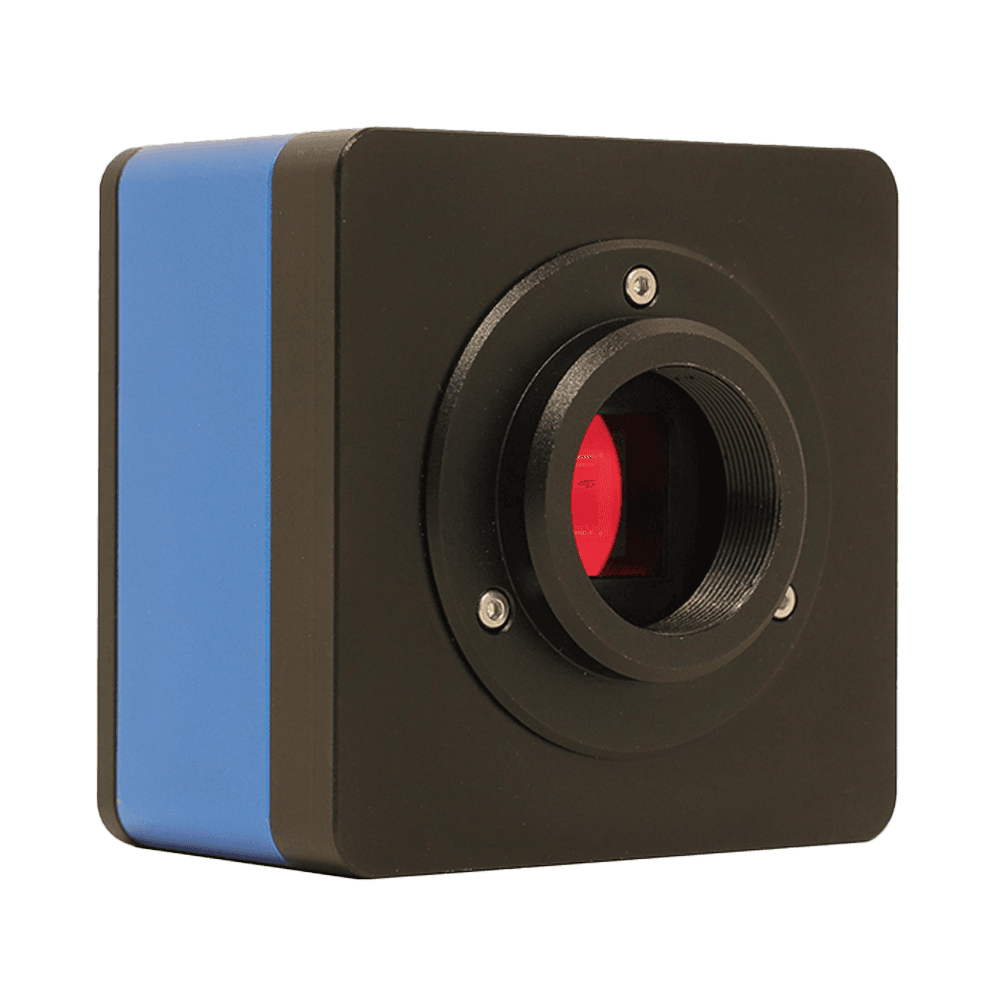

OCAM1080P2MPB
Multi-Interface CameraColor
OCAM1080P2MPB

HDMI monitor cameras (OCAM)

Sensor
Sony IMX462(C)
Resolution
2MP
Pixel size
2.9 μm × 2.9 μm
Frame rate
HDMI: 60 fps @ 1920×1080
Mount
C-mount
Interface
HDMI1.4
Sensor format
1/2.8-inch
Sensor size
1/2.8" (5.57×3.13 mm)
Band
380–700 nm (visible)
Shutter
Rolling
Open page ↗Datasheet
