Precisometer

Camera finder

Build a camera shortlist

Showing cameras built around IMX428. Refine the shortlist with your application requirements.

650
Camera models
71
Cooled
216
Global shutter
16
Matched

Results

16 cameras matched

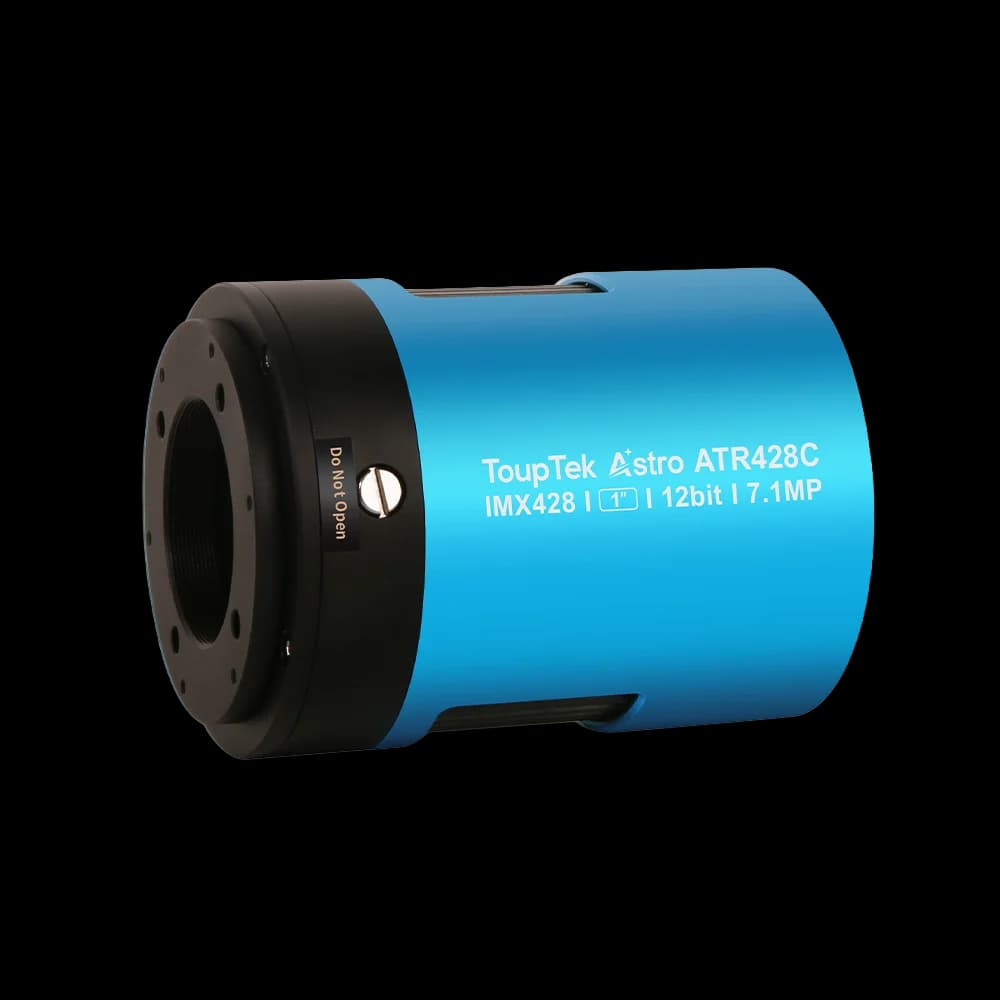

ATR428C
Astronomy CameraCooledGlobal shutterMatch 1
ATR428C

ATR DSO cooled

Sensor
Sony IMX428 color CMOS — Global-shutter color CMOS
Resolution
7.04 MP (3200 × 2200)
Pixel size
4.5 µm
Frame rate
25.7 fps
Mount
M42 / M54 astronomy adapters
Interface
USB 3.0
Sensor size
1-inch, 14.4 × 9.9 mm
Band
380–690 nm
Shutter
Global
ATR428M
Astronomy CameraCooledGlobal shutterMatch 1
ATR428M

ATR DSO cooled

Sensor
Sony IMX428 monochrome CMOS — Global-shutter monochrome CMOS
Resolution
7.04 MP (3200 × 2200)
Pixel size
4.5 µm
Frame rate
25.7 fps
Mount
M42 / M54 astronomy adapters
Interface
USB 3.0
Sensor size
1-inch, 14.4 × 9.9 mm
Band
380–1100 nm
Shutter
Global

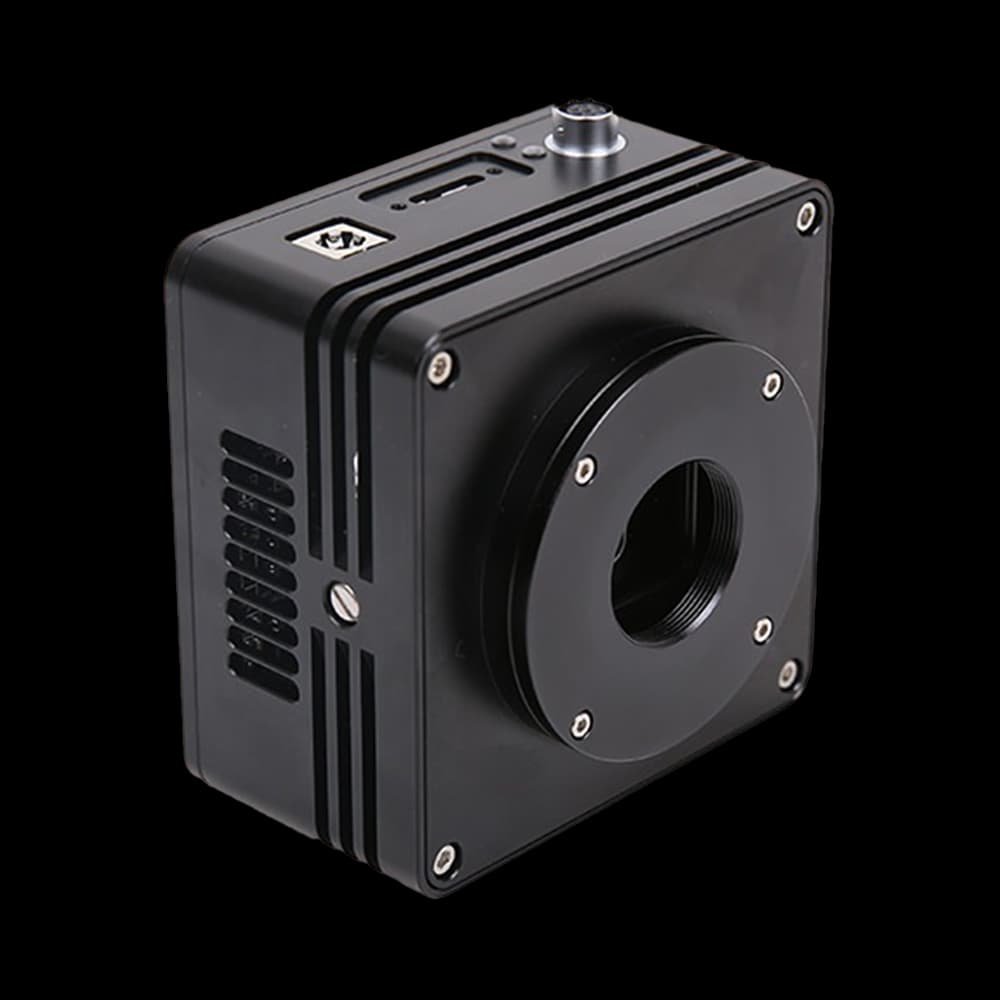

CTR3CMOS07100KMA
Low-Light / Cooled CameraGlobal shutterMatch 1
CTR3CMOS07100KMA

CTR3CMOS

Sensor
Sony IMX428LLJ
Resolution
7.1MP (3200×2200)
Pixel size
4.5 µm × 4.5 µm
Frame rate
51.3 fps @ 3200×2200; 133.8 fps @ 1584×1100
Mount
C-mount
Interface
USB3.0
Sensor size
14.4 mm × 9.9 mm
Band
380–700 nm (visible)
Shutter
Global
CTR3CMOS07100KMA-G
Low-Light / Cooled CameraGlobal shutterMatch 1
CTR3CMOS07100KMA-G

CTR3CMOS

Sensor
Sony IMX428LLJ
Resolution
7.1MP (3200×2200)
Pixel size
4.5 µm × 4.5 µm
Frame rate
16.4 fps @ 3200×2200; 66 fps @ 1600×1100
Mount
C-mount
Interface
GigE
Sensor size
14.4 mm × 9.9 mm
Band
380–700 nm (visible)
Shutter
Global
CTR3CMOS07100KPA
Low-Light / Cooled CameraGlobal shutterMatch 1
CTR3CMOS07100KPA

CTR3CMOS

Sensor
Sony IMX428LQJ
Resolution
7.1MP (3200×2200)
Pixel size
4.5 µm × 4.5 µm
Frame rate
51.3 fps @ 3200×2200; 133.8 fps @ 1584×1100
Mount
C-mount
Interface
USB3.0
Sensor size
14.4 mm × 9.9 mm
Band
380–700 nm (visible)
Shutter
Global
CTR3CMOS07100KPA-G
Low-Light / Cooled CameraGlobal shutterMatch 1
CTR3CMOS07100KPA-G

CTR3CMOS

Sensor
Sony IMX428LQJ
Resolution
7.1MP (3200×2200)
Pixel size
4.5 µm × 4.5 µm
Frame rate
16.4 fps @ 3200×2200; 66 fps @ 1600×1100
Mount
C-mount
Interface
GigE
Sensor size
14.4 mm × 9.9 mm
Band
380–700 nm (visible)
Shutter
Global
I3CMOS07100KMA
Industrial / Analytical CameraGlobal shutterMatch 1
I3CMOS07100KMA

I3CMOS

Sensor
Sony IMX428LLJ
Resolution
7.1 MP (3200×2200)
Pixel size
4.5 µm × 4.5 µm
Frame rate
51.3 fps @ 3200×2200; 133.8 fps @ 1584×1100
Mount
C-mount
Interface
USB3.0
Sensor size
14.4 mm × 9.9 mm
Band
380–700 nm (visible)
Shutter
Global

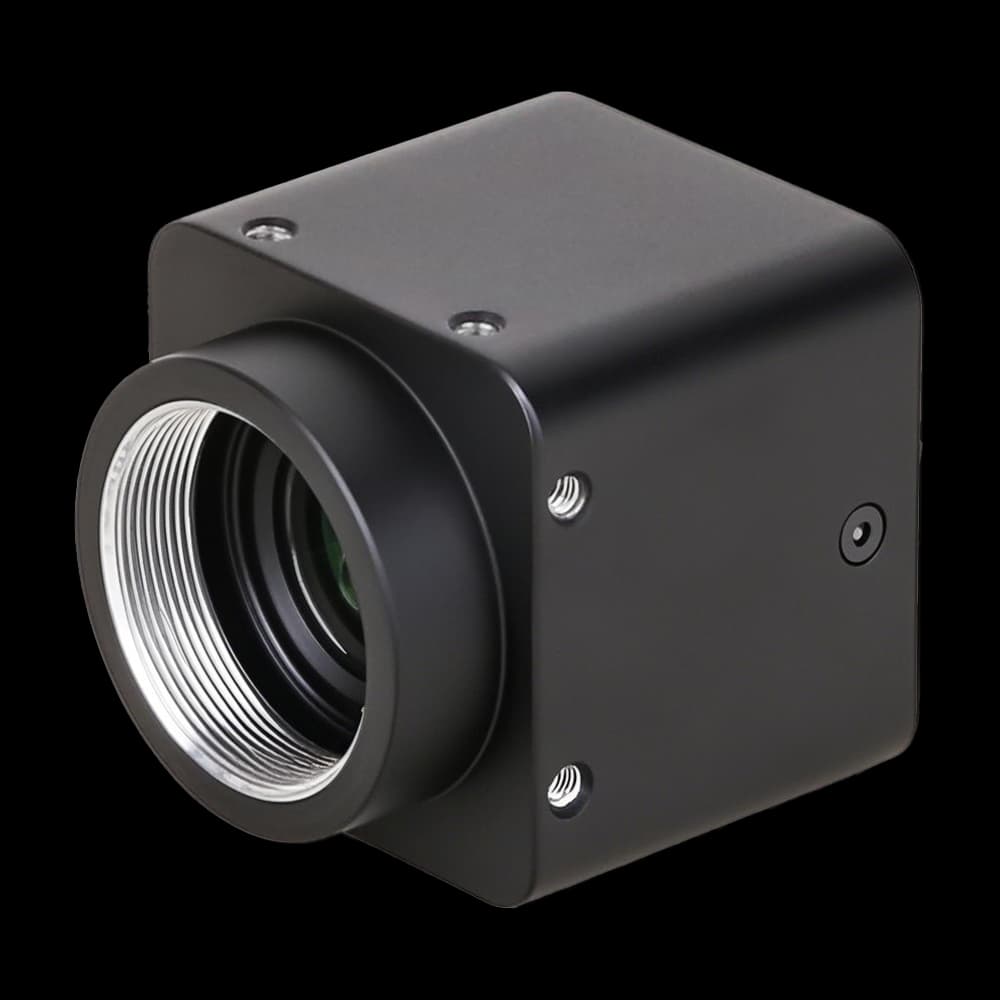

I3ISPM07100KPA
Industrial / Analytical CameraGlobal shutterMatch 1
I3ISPM07100KPA

I3ISPM

Sensor
Sony IMX428LQJ
Resolution
7.1 MP (3200×2200)
Pixel size
4.5 µm × 4.5 µm
Frame rate
51.4 fps @ 3200×2200; 133.8 fps @ 1584×1100
Mount
C-mount
Interface
USB3.0
Sensor size
14.4 mm × 9.9 mm
Band
380–700 nm (visible)
Shutter
Global
ITR3CMOS07100KMA
Low-Light / Cooled CameraGlobal shutterMatch 1
ITR3CMOS07100KMA

ITR3CMOS

Sensor
Sony IMX428LLJ
Resolution
7.1MP (3200×2200)
Pixel size
4.5 µm × 4.5 µm
Frame rate
51.3 fps @ 3200×2200; 133.8 fps @ 1584×1100
Mount
C-mount
Interface
USB3.0
Sensor size
14.4 mm × 9.9 mm
Band
380–700 nm (visible)
Shutter
Global
ITR3CMOS07100KMA-G
Low-Light / Cooled CameraGlobal shutterMatch 1
ITR3CMOS07100KMA-G

ITR3CMOS

Sensor
Sony IMX428LLJ
Resolution
7.1MP (3200×2200)
Pixel size
4.5 µm × 4.5 µm
Frame rate
16.4 fps @ 3200×2200; 66 fps @ 1584×1100
Mount
C-mount
Interface
GigE
Sensor size
14.4 mm × 9.9 mm
Band
380–700 nm (visible)
Shutter
Global
ITR3CMOS07100KPA
Low-Light / Cooled CameraGlobal shutterMatch 1
ITR3CMOS07100KPA

ITR3CMOS

Sensor
Sony IMX428LQJ
Resolution
7.1MP (3200×2200)
Pixel size
4.5 µm × 4.5 µm
Frame rate
51.3 fps @ 3200×2200; 133.8 fps @ 1584×1100
Mount
C-mount
Interface
USB3.0
Sensor size
14.4 mm × 9.9 mm
Band
380–700 nm (visible)
Shutter
Global
ITR3CMOS07100KPA-G
Low-Light / Cooled CameraGlobal shutterMatch 1
ITR3CMOS07100KPA-G

ITR3CMOS

Sensor
Sony IMX428LQJ
Resolution
7.1MP (3200×2200)
Pixel size
4.5 µm × 4.5 µm
Frame rate
16.4 fps @ 3200×2200; 66 fps @ 1584×1100
Mount
C-mount
Interface
GigE
Sensor size
14.4 mm × 9.9 mm
Band
380–700 nm (visible)
Shutter
Global

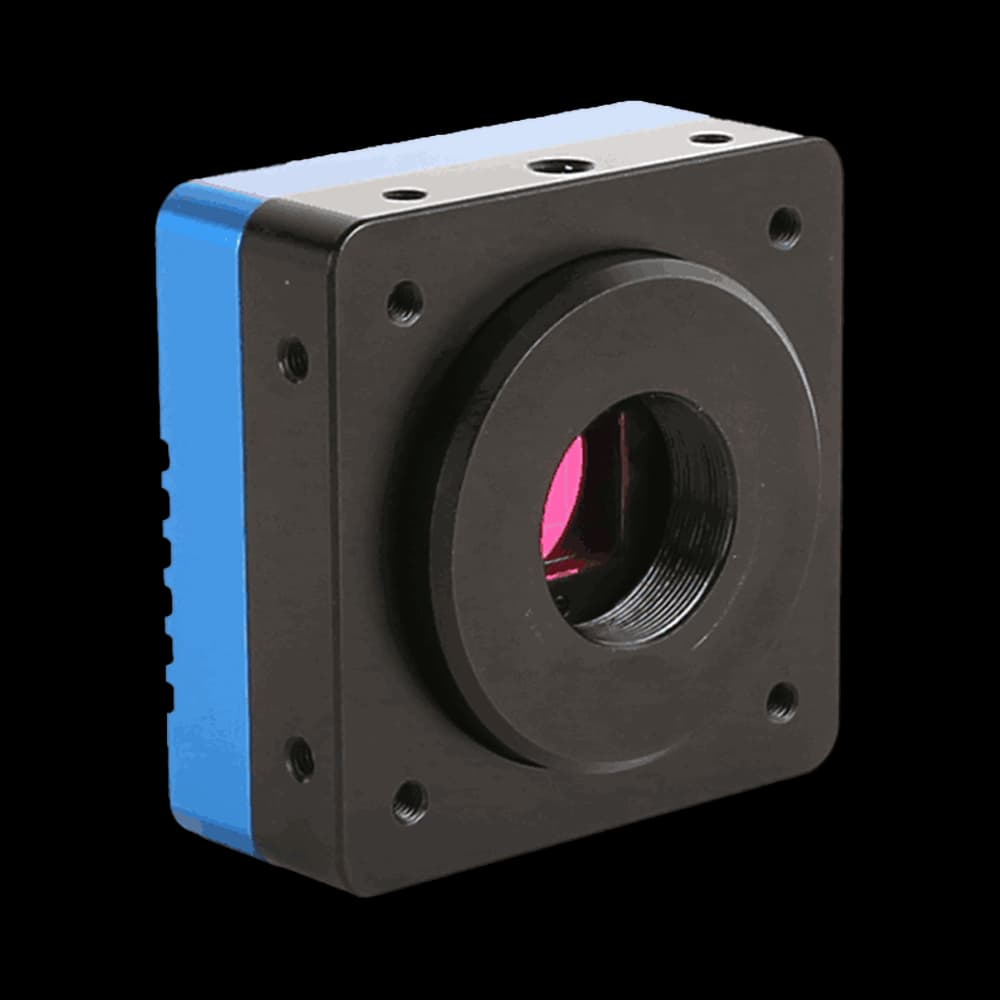

IUA7100KMA
Industrial / Analytical CameraGlobal shutterMatch 1
IUA7100KMA

IUA

Sensor
Sony IMX428LLJ
Resolution
7.1MP (3200×2200)
Pixel size
4.5 µm × 4.5 µm
Frame rate
51.3 fps @ 3200×2200; 133.8 fps @ 1584×1100
Mount
C-mount
Interface
USB3.0 (USB3.1 GEN1)
Sensor size
14.4 mm × 9.9 mm
Band
380–700 nm (visible)
Shutter
Global
IUA7100KPA
Industrial / Analytical CameraGlobal shutterMatch 1
IUA7100KPA

IUA

Sensor
Sony IMX428LQJ
Resolution
7.1MP (3200×2200)
Pixel size
4.5 µm × 4.5 µm
Frame rate
51.4 fps @ 3200×2200; 133.8 fps @ 1584×1100
Mount
C-mount
Interface
USB3.0 (USB3.1 GEN1)
Sensor size
14.4 mm × 9.9 mm
Band
380–700 nm (visible)
Shutter
Global

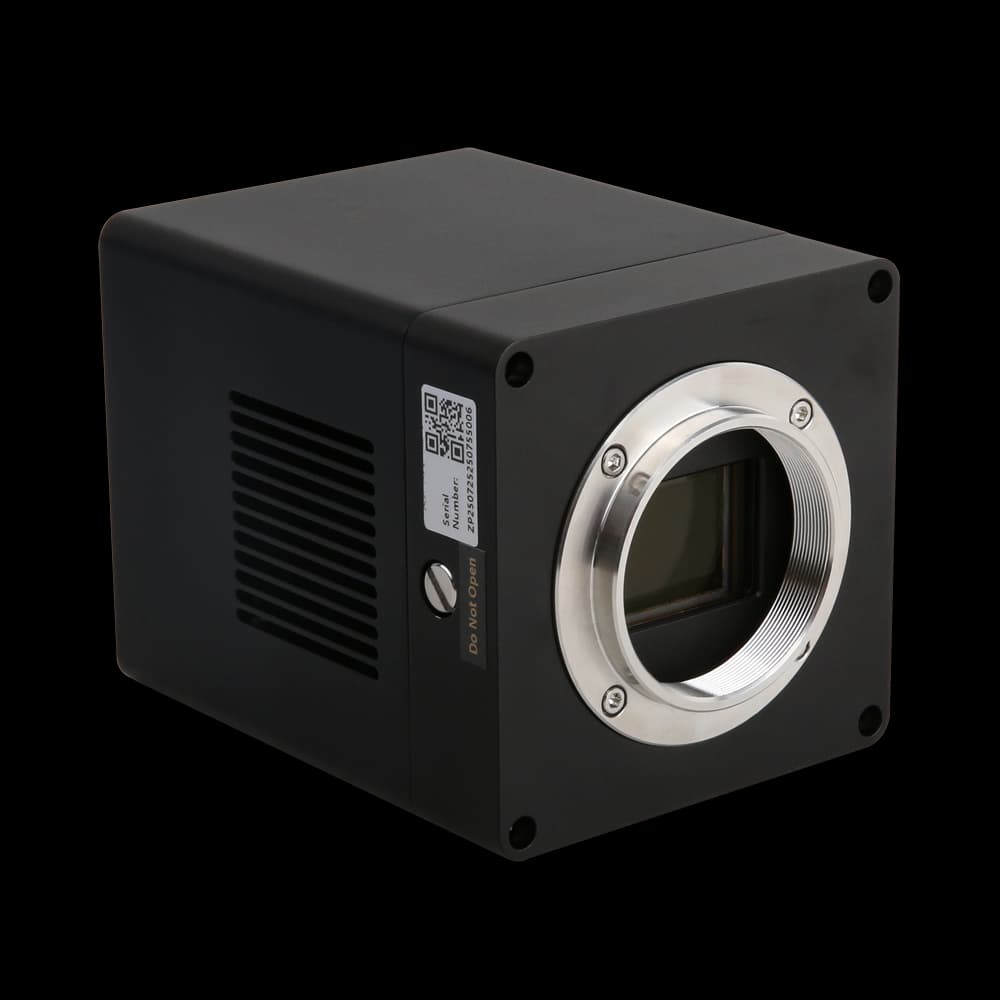

MTR3CMOS07100KMA
Low-Light / Cooled CameraCooledGlobal shutterMatch 1
MTR3CMOS07100KMA

MTR3CMOS

Sensor
IMX428 (M, GS)
Resolution
7.0MP (3200×2200)
Pixel size
4.5 µm × 4.5 µm
Frame rate
51.3 fps @ 3200×2200; 133.8 fps @ 1584×1100
Mount
C-mount
Interface
USB3.0
Sensor size
14.4 mm × 9.9 mm
Band
380–700 nm (visible)
Shutter
Global
MTR3CMOS07100KPA
Low-Light / Cooled CameraCooledGlobal shutterMatch 1
MTR3CMOS07100KPA

MTR3CMOS

Sensor
IMX428 (C, GS)
Resolution
7.0MP (3200×2200)
Pixel size
4.5 µm × 4.5 µm
Frame rate
51.3 fps @ 3200×2200; 133.8 fps @ 1584×1100
Mount
C-mount
Interface
USB3.0
Sensor size
14.4 mm × 9.9 mm
Band
380–700 nm (visible)
Shutter
Global
