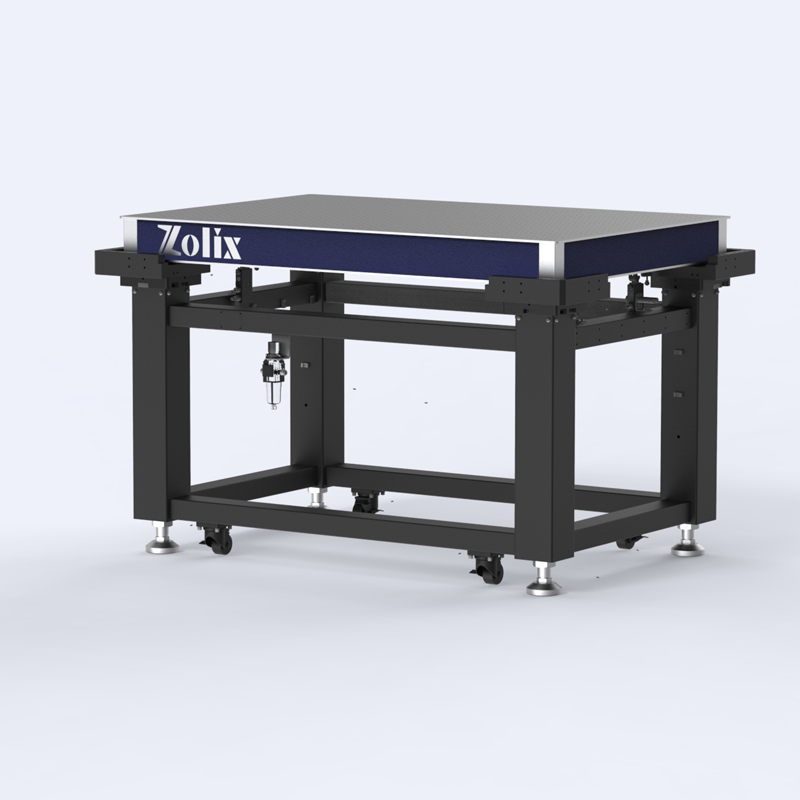

Opto-Mechanics · NAP Series Pneumatic Vibration Isolation Optical Table
NAP15-10-K
Pneumatic Isolation Optical Table | 1500×1000×800
Datasheet (PDF) ↗Specifications
| Size(mm) | 1500×1000×800 |
|---|---|
| Tabletop pthickness(mm) | 100 |
| Tabletop pweight(Kg) | 173 |
| Table Feet Area(mm) | 100×100 |
| Supports Load(Kg) | 500 |
| Notes | 4legs |
Applications
Vibration-critical measurement
Isolate interferometry, super-resolution imaging and metrology from building floor motion.
Upper-floor and noisy environments
Pneumatic isolators attenuate the 1–100 Hz band where structural vibration is worst.
Long-integration acquisition
Hold a setup stable across exposures where any relative motion is recorded as blur or drift.
