Cage Systems · 30mm Cage Plates

CSP1-25.4

30mm Cage Plates

Zolix offers a wide range of cage plates ideally suit for assembling Ø25.4mm optics or lens tubes.

Specifications

Plate Thickness	9mm
Acceptable Optic Thickness	5mm
Material	6061 Aluminum Alloy
Surface Treatment	Black Anodic-Oxidation
Optic Diameter	Optic Diameter
Post Mounting	M4

Related products

CSP1R-SM1

30mm Cage Plates

CSP1-RMS

30mm Cage Plates

CSP1-SM1

30mm Cage Plates

CSP1Q-M-A

Quick-remove cage plate.

Before you specify

Guides that cover this decision

Engineering context for choosing this class of component, with the tradeoffs worked through on real specifications.

All guides

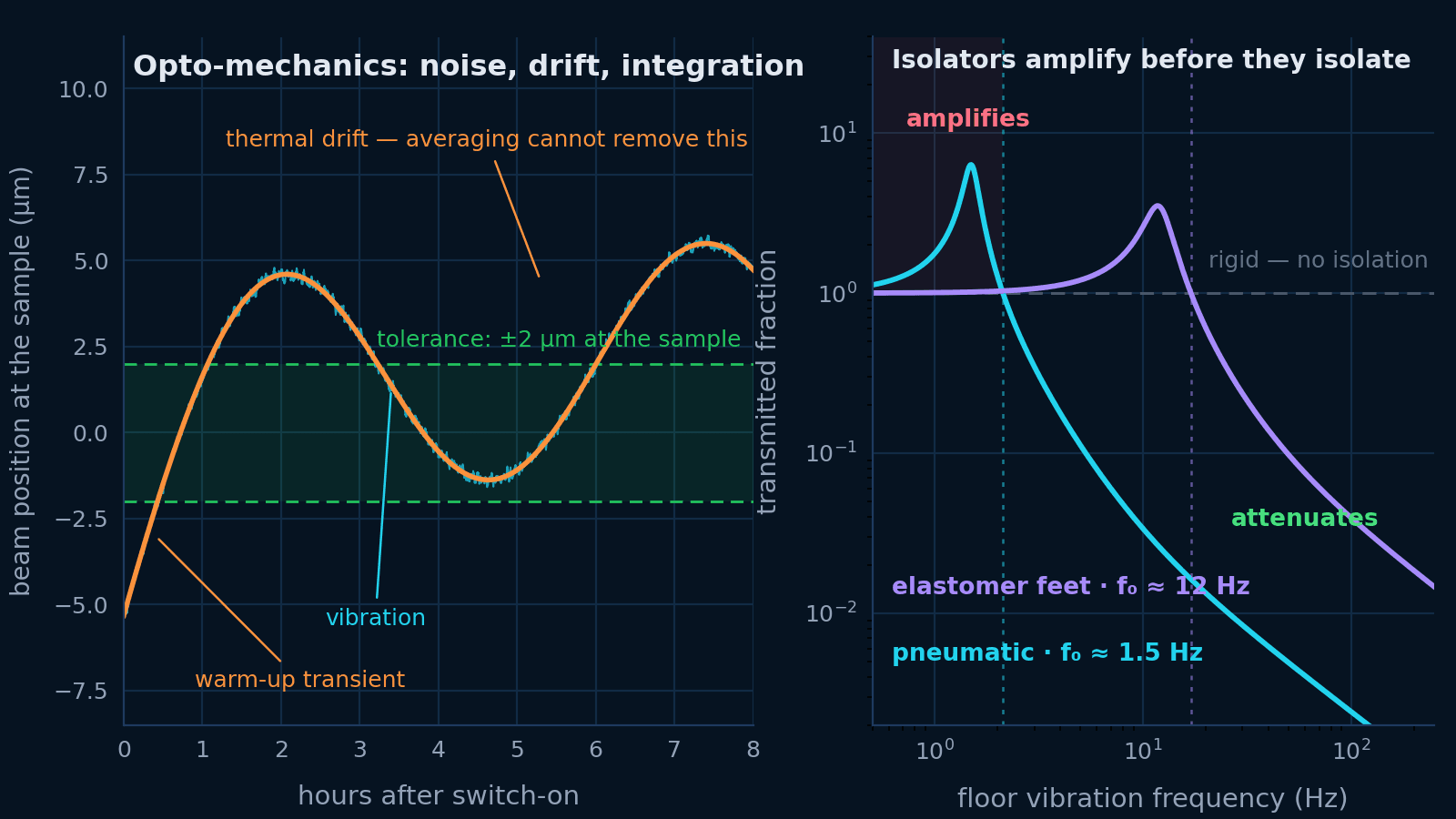

Beam position drifting out of tolerance over a working day, beside isolator transmissibility curves
