Opto-Mechanics · TSMG Series Manual Goniometer

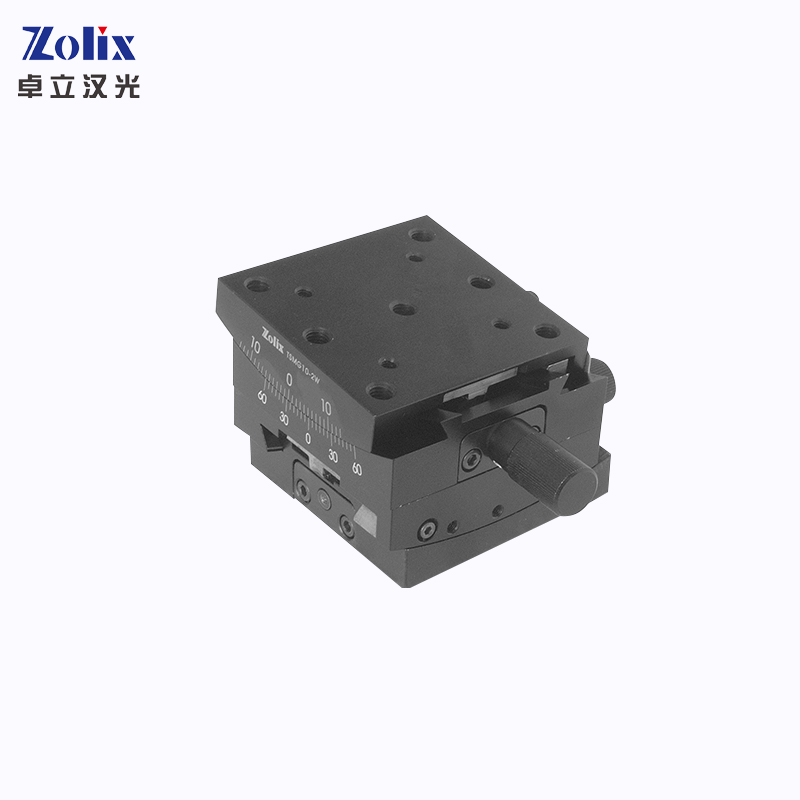

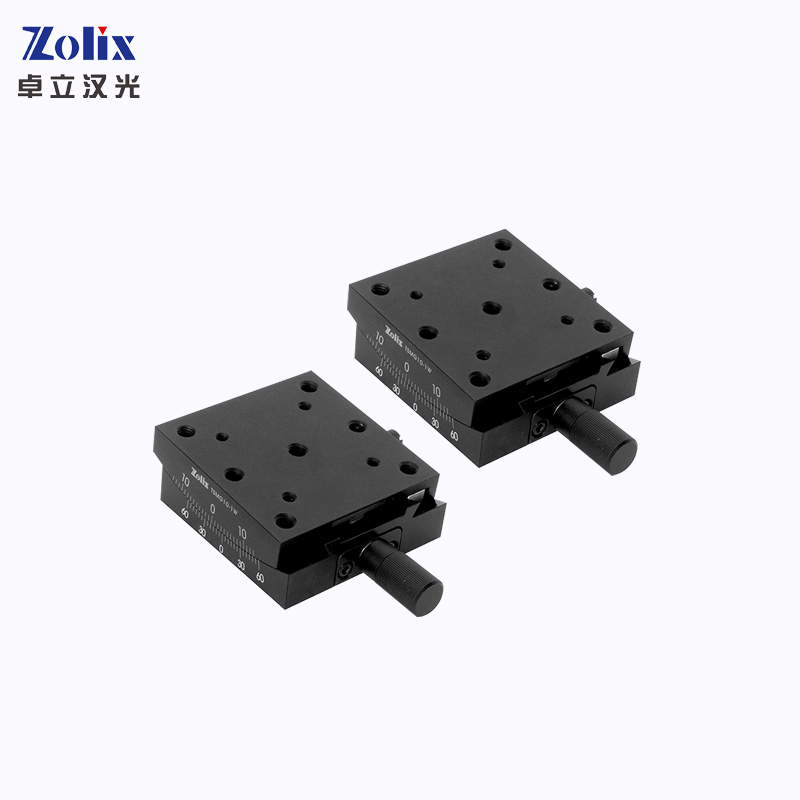

TSMG10-2W
Manual Goniometers

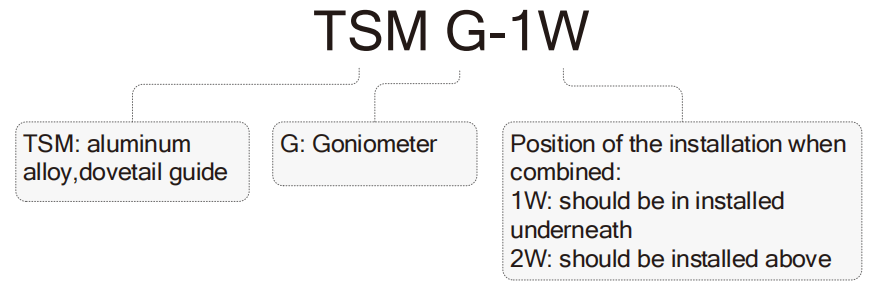

Datasheet (PDF) ↗CAD Model (STEP) ↗Specifications
| Model | TSMG10-2W |
|---|---|
| Travel range(°) | ±10 |
| Design center height(mm) | 76 |
| Stage surface size(mm) | 65×65 |
| Thickness(mm) | 24 |
| Guide mechanism | Dovetail guide |
| Drive type | worm gear and worm |
| Main body material and surface treatment | Black anodized aluminum alloy |
| Vernier minimum reading(°) | 5 |
| Central load capacity(Kg) | 2 |
Applications
Set-and-forget alignment
Adjust once during setup and lock, on axes that do not need to move again during the run.
Coarse positioning ahead of fine stages
Establish the optical axis by hand before a piezo or motorised stage takes the fine motion.
Prototyping and teaching rigs
Reconfigure a layout quickly, with no cabling, controllers or electrical noise added to the experiment.
