APFP-GB

Opto-Mechanics · Fiber Alignment Accessories

APFP-GB

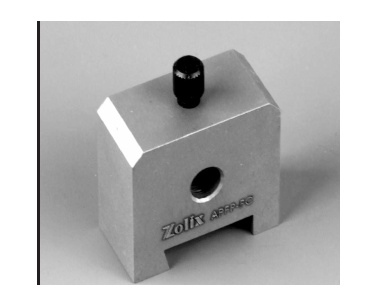

APFP-GB right-angle mounting module

Right-angle dovetail module for installing the APFP-θx stage and building a six-degree-of-freedom fiber alignment frame.

View quote list

Datasheet (PDF) ↗

Specifications

Type	Right-angle dovetail module
Application	APFP-θx frame adapter
Fastening	Side jackscrew
Base	APFP dovetail

Applications

Set-and-forget alignment

Adjust once during setup and lock, on axes that do not need to move again during the run.

Coarse positioning ahead of fine stages

Establish the optical axis by hand before a piezo or motorised stage takes the fine motion.

Prototyping and teaching rigs

Reconfigure a layout quickly, with no cabling, controllers or electrical noise added to the experiment.
