Opto-Mechanics · Fiber Alignment Accessories
APFP-US

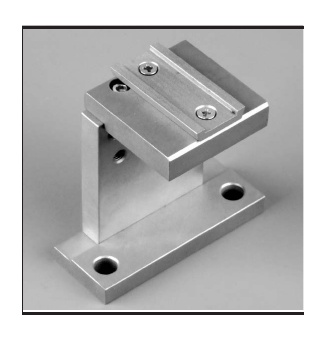

APFP-US universal dovetail stand
Universal fixed platform with an upper dovetail seat for fiber accessories at the standard APFP optical centre height.
Datasheet (PDF) ↗Specifications
| Type | Universal fixed platform |
|---|---|
| Interface | Upper APFP dovetail |
| Fastening | Jackscrew |
| Compatibility | UFP, NFP, and APFP fiber-alignment systems |
Applications
Set-and-forget alignment
Adjust once during setup and lock, on axes that do not need to move again during the run.
Coarse positioning ahead of fine stages
Establish the optical axis by hand before a piezo or motorised stage takes the fine motion.
Prototyping and teaching rigs
Reconfigure a layout quickly, with no cabling, controllers or electrical noise added to the experiment.
