APFP-OM

Opto-Mechanics · Fiber Alignment Accessories

APFP-OM

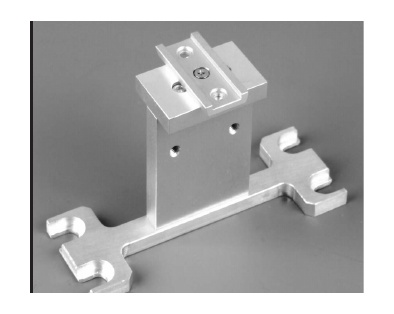

APFP-OM objective-lens mount

Dovetail objective mount for positioning microscope objectives in fiber-coupling and photonic-device assemblies.

View quote list

Datasheet (PDF) ↗

Specifications

Type	Objective-lens mount
Objective thread	WJ 4/5-1/36″
Base	APFP dovetail
Compatibility	UFP, NFP, and APFP stages

Applications

Set-and-forget alignment

Adjust once during setup and lock, on axes that do not need to move again during the run.

Coarse positioning ahead of fine stages

Establish the optical axis by hand before a piezo or motorised stage takes the fine motion.

Prototyping and teaching rigs

Reconfigure a layout quickly, with no cabling, controllers or electrical noise added to the experiment.
