Opto-Mechanics · GONX Series Motorized Goniometers

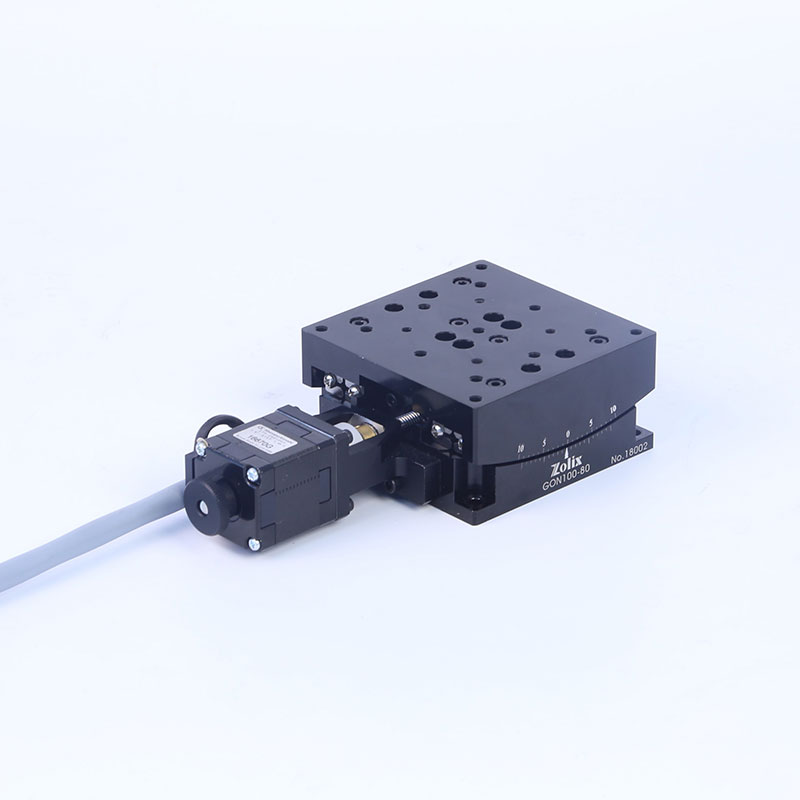

GON100-80-ST528

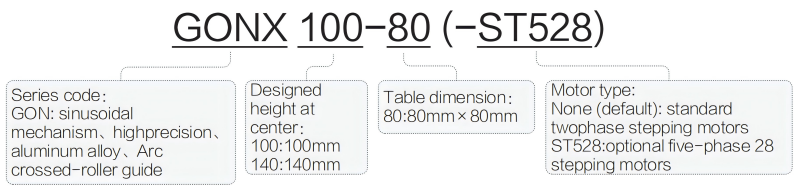

GON motorized single-axis goniometer; 100 mm arc radius; 80 mm platform class; +/-15 deg tilt range; 0.001 deg step size. Options: ST528 stepper-motor bundle.
Datasheet (PDF) ↗Specifications
Full specifications for this product are available on request. Contact us for the datasheet.
Applications
Automated scanning and mapping
Step-and-acquire across areas far wider than a single field of view.
Repeatable production indexing
Move parts between fixed stations with closed-loop encoders holding position over long shifts.
Programmable multi-axis motion
Coordinate several axes from software for processing, inspection and test sequences.
