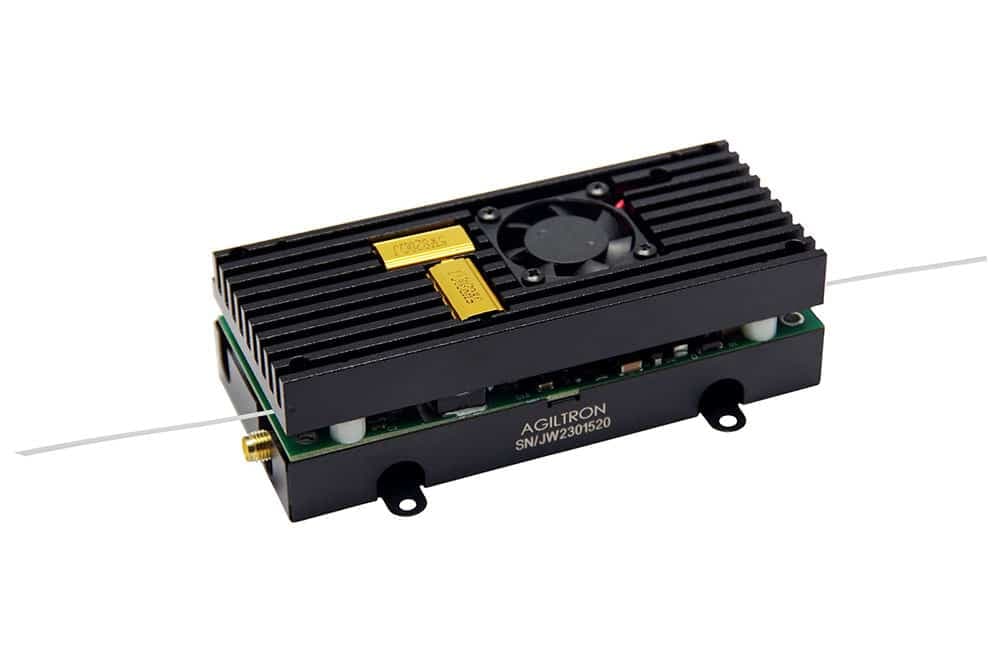

Ultra-Fast 1×1, 1×2, 2×2 Fiber Optical Switch: 10ns, 16dB On/Off, 1MHz

The NS Ultra-Fast Series (NF) fiber optical switch is based on our patented electro-optical configuration, featuring low optical loss, wide temperature operation, and polarization insensitivity. Our NS fiber optical switch has ultra-high reliability and can continuously operate for over 25 years in a vibration environment (passed Telcordia and space qualifications). The switch is bidirectional and available with configurations of polarization-independent or polarization-maintain. The rise/fall time is intrinsically related to the crystal properties, and the repetition rate is associated with the driver. The NF Series switch is mounted on an electronic driver having a 5V TTL control signal SMA input and a DC power supplier. There are poor frequency response sections in which the on/off ratio does not meet the spec due to the device’s mechanical resonances.

Configure & add to enquiry Datasheet (PDF)Back to Optical Switches

Ultra-Fast 1×1, 1×2, 2×2 Fiber Optical Switch: 10ns, 16dB On/Off, 1MHz

Configuration options

Build & quote

Configure the options below and add your exact build to the enquiry — we confirm the part number and availability.

TypeWavelengthConfigurationRepetition RateFiber TypeFiber CoverFiber LengthConnectorOptical PowerBenchtopSelector Field 0

We confirm the exact part number for your configuration on enquiry.

Type: 1x1 · Wavelength: 1060nm · Configuration: Single stage · Repetition Rate: 900kHz · Fiber Type: SMF-28 · Fiber Cover: Bare fiber · Fiber Length: 0.25m · Connector: None · Optical Power: Regular · Benchtop: None · Selector Field 0: None

Application context

Why this design is used

Application guidance is tied to the configured wavelength, fiber interface and optical-budget fields for this family.

Optical signal routing

Ultra-Fast 1×1, 1×2, 2×2 Fiber Optical Switch: 10ns, 16dB On/Off, 1MHz: Optical signal routing depends on preserving the optical budget through the complete path. The 1060nm, 2000nm, 1310nm, 1480nm, 1550nm, 1625nm, 1750nm, 780nm, 850nm, 650nm, 550nm, 450nm wavelength specification sets source and detector compatibility. The fiber/interface entry (SMF-28, HI1060, HI780, PM1550, SM600, SM800, PM850, PM780, PM630, PM980, MM50/125, SM400, SM450, Hi980, SM1950, PM405, PM460, PM1950) must match the connected components.

Automated fiber test

Ultra-Fast 1×1, 1×2, 2×2 Fiber Optical Switch: 10ns, 16dB On/Off, 1MHz: Automated fiber test depends on preserving the optical budget through the complete path. The 1060nm, 2000nm, 1310nm, 1480nm, 1550nm, 1625nm, 1750nm, 780nm, 850nm, 650nm, 550nm, 450nm wavelength specification sets source and detector compatibility. The fiber/interface entry (SMF-28, HI1060, HI780, PM1550, SM600, SM800, PM850, PM780, PM630, PM980, MM50/125, SM400, SM450, Hi980, SM1950, PM405, PM460, PM1950) must match the connected components.

Downloads

Datasheets & documents

System integration

Integration and compatibility

Use these checks to connect Ultra-Fast 1×1, 1×2, 2×2 Fiber Optical Switch: 10ns, 16dB On/Off, 1MHz to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.

Optical interface and fiber: Fiber Type: SMF-28, HI1060, HI780, PM1550, SM600, SM800, PM850, PM780, PM630, PM980, MM50/125, SM400, SM450, Hi980, SM1950, PM405, PM460, PM1950 · Fiber Cover: Bare fiber, 900um tube; Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
Wavelength and loss budget: Wavelength: 1060nm, 2000nm, 1310nm, 1480nm, 1550nm, 1625nm, 1750nm, 780nm, 850nm, 650nm, 550nm, 450nm; Check the Optical Switches passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.

Technical FAQ

Integration questions for Ultra-Fast 1×1, 1×2, 2×2 Fiber Optical Switch: 10ns, 16dB On/Off, 1MHz

Which fiber and connector does the Ultra-Fast 1×1, 1×2, 2×2 Fiber Optical Switch: 10ns, 16dB On/Off, 1MHz use?

Fiber Type: SMF-28, HI1060, HI780, PM1550, SM600, SM800, PM850, PM780, PM630, PM980, MM50/125, SM400, SM450, Hi980, SM1950, PM405, PM460, PM1950 · Fiber Cover: Bare fiber, 900um tube. Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.

How should the Ultra-Fast 1×1, 1×2, 2×2 Fiber Optical Switch: 10ns, 16dB On/Off, 1MHz be included in an optical power budget?

Wavelength: 1060nm, 2000nm, 1310nm, 1480nm, 1550nm, 1625nm, 1750nm, 780nm, 850nm, 650nm, 550nm, 450nm. Check the Optical Switches passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.

Need this configured?

Share your wavelength, fiber type, connector, power handling and control requirements and we will qualify the matching configuration and part number.

Configure & add to enquiry

Model selection

Nearby series comparison

Compare Ultra-Fast 1×1, 1×2, 2×2 Fiber Optical Switch: 10ns, 16dB On/Off, 1MHz with the closest available models in the Optical Switches family. Confirm option-dependent values on the final configuration before ordering.

Selection parameter	Ultra-Fast 1×1, 1×2, 2×2 Fiber Optical Switch: 10ns, 16dB On/Off, 1MHz (current)	Ultra-Broadband/Low-Loss Single or Dual 1×N Fiber Optic Switch System	Ultra-Low Latency Multicast Switch Multi-Port Output
Wavelength range	1060nm, 2000nm, 1310nm, 1480nm, 1550nm, 1625nm, 1750nm, 780nm, 850nm, 650nm, 550nm, 450nm	488 nm, 360 nm, 430 nm, 532 nm, 630 nm, 780 nm, 850 nm, 980 nm, 1060 nm, 1310 nm, 1550 nm, 2000 nm	1310, 1550, Special
Optical performance	Confirm for this model	Confirm for this model	Confirm for this model
Fiber type	SMF-28, HI1060, HI780, PM1550, SM600, SM800, PM850, PM780, PM630, PM980, MM50/125, SM400, SM450, Hi980, SM1950, PM405, PM460, PM1950	50/125, SMF-28	Confirm for this model
Connector / control	None, FC/PC, FC/APC, ST/PC, LC/PC, LC/APC, E2000 APC, LC/UPC	USB, RS232, Ethernet, GPIB	RS232, USB, Ethernet
