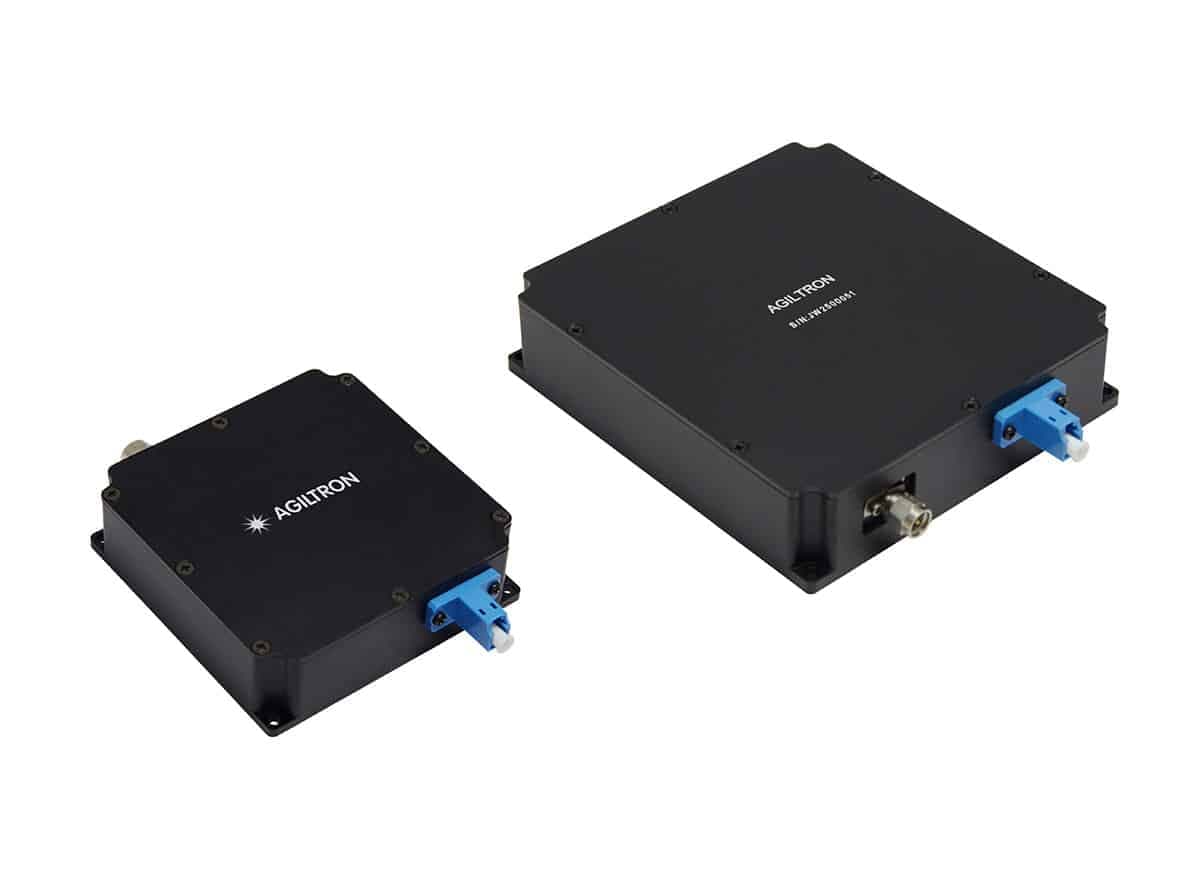

Fiber Optical Transmitter/Receiver 10MHz to 12GHz

The RFOF is designed to form an RF link between two points using fiber optical cables. It features immunity to interferences, high bandwidth, low signal loss over long distances, low signal distortion, low power consumption, high reliability, and is easy to implement. It converts an input RF electrical signal into an optical signal via an electro-optical modulator coupled with a DFB laser (transmitter) and re-converts the optical signal back into the RF signal at the other end of the fiber link via a high linearity photodiode integrated with low noise amplifier (receiver). The transmitter and receiver pair form a transceiver that provides a transparent data transmission channel. They are available in wavelengths 1550nm C-band, providing a versatile wavelength division multiplexing (WDM) capability.

Configure & add to enquiry Datasheet (PDF)Back to Optical / RF Delay Lines

Fiber Optical Transmitter/Receiver 10MHz to 12GHz

Configuration options

Build & quote

Configure the options below and add your exact build to the enquiry — we confirm the part number and availability.

RF FrequencyWavelengthTX/RXPackageBidirectionalFiber Connector

Part number: RFOF-10G11112

RF Frequency: 10GHz SM · Wavelength: 1550 nm · TX/RX: Receiver · Package: Module · Bidirectional: None · Fiber Connector: FC/APC

Downloads

Datasheets & documents

System integration

Integration and compatibility

Use these checks to connect Fiber Optical Transmitter/Receiver 10MHz to 12GHz to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.

Optical interface and fiber: Fiber Connector: FC/APC, Special; Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
Wavelength and loss budget: Wavelength: 1550 nm; Check the Optical / RF Delay Lines passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.

Technical FAQ

Integration questions for Fiber Optical Transmitter/Receiver 10MHz to 12GHz

Which fiber and connector does the Fiber Optical Transmitter/Receiver 10MHz to 12GHz use?

Fiber Connector: FC/APC, Special. Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.

How should the Fiber Optical Transmitter/Receiver 10MHz to 12GHz be included in an optical power budget?

Wavelength: 1550 nm. Check the Optical / RF Delay Lines passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.
