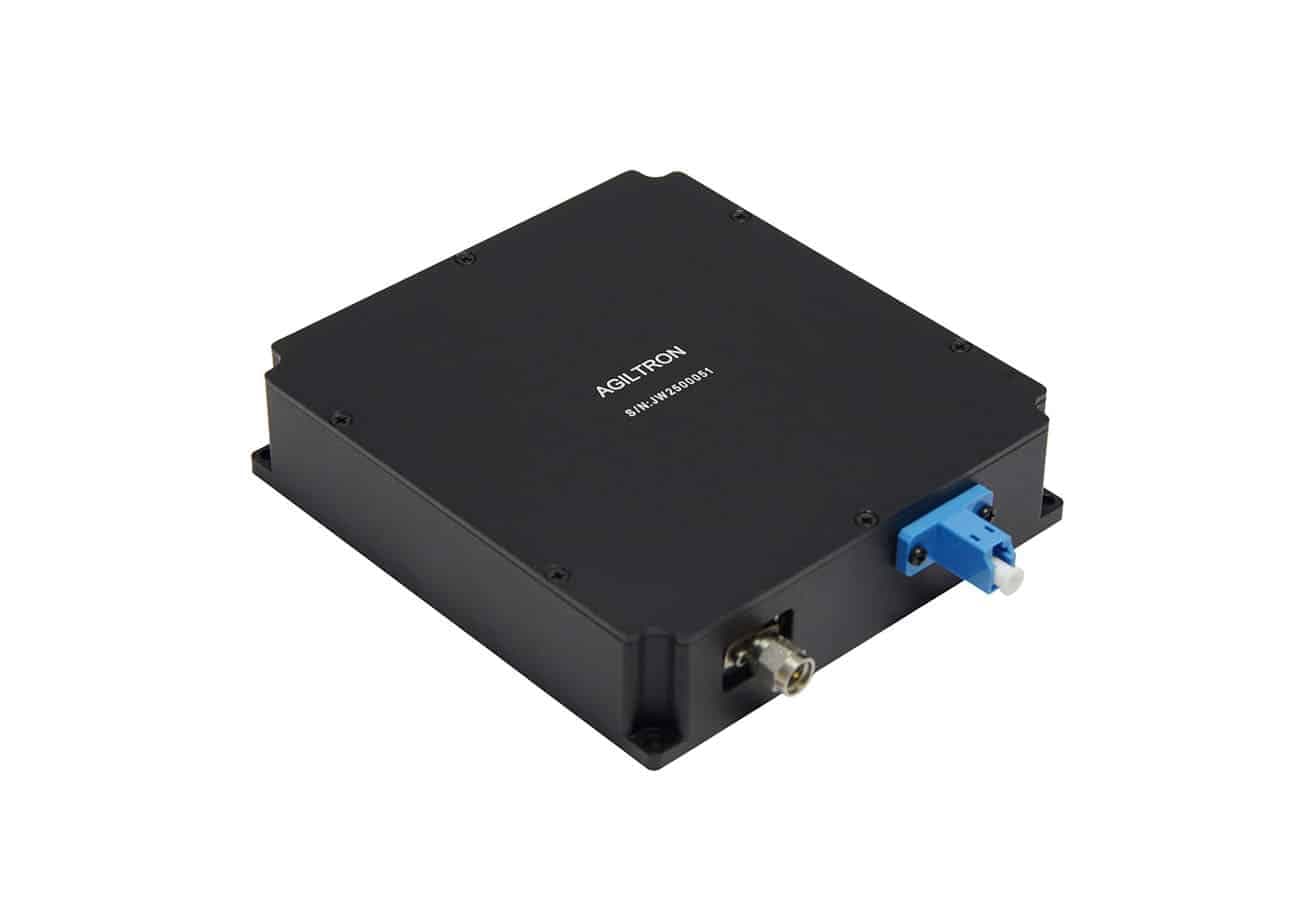

12 GHz Plug-Play Electro-Absorption Modulated Fiber Optical Transmitter
The EMTX is a 12 GHz fiber optic transmitter designed for RF-over-fiber, antenna remoting, and broadband digital communication, offering high-fidelity RF-to-optical signal conversion. It features a monolithically integrated distributed feedback (DFB) laser coupled with a high-speed electro-absorption modulator (EAM) for efficiently converting both analog and digital RF signals into optical signals with high fidelity. The module contains a precision laser and a TEC controller, with a built-in DC bias circuit to ensure a linear response. The EMTX operates on a low-noise ±5V DC power supply, available as an optional accessory. The bias T voltage is adjustable via USB to optimize performance.
Configuration options
Build & quote
Configure the options below and add your exact build to the enquiry — we confirm the part number and availability.
Part number: EMTX-125111113
Bandwidth: 12GHz · Wavelength: 1550nm · DC Power Supply: Non · Package: Standard · Fiber Type: SM28 · Connector: FC/APC
System integration
Integration and compatibility
Use these checks to connect 12 GHz Plug-Play Electro-Absorption Modulated Fiber Optical Transmitter to the surrounding optical, mechanical and control system. Every value shown is taken from this model's own specification record.
- Optical interface and fiber
- Fiber Type: SM28 · Connector: FC/APC
- Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
- Wavelength and loss budget
- Wavelength: 1550nm
- Check the Transmitters & Receivers passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.
- Control interface
- DC Power Supply: Non, DPPS5V
- Match supply voltage, analog or digital command range, connector pinout and default optical state to the instrument interlock. Confirm the unpowered state explicitly — it decides what happens to the link on a power failure.
Technical FAQ
Integration questions for 12 GHz Plug-Play Electro-Absorption Modulated Fiber Optical Transmitter
Which fiber and connector does the 12 GHz Plug-Play Electro-Absorption Modulated Fiber Optical Transmitter use?
Fiber Type: SM28 · Connector: FC/APC. Specify connector polish and fiber architecture together. FC/PC, FC/APC and SMA interfaces, and single-mode, multimode and polarization-maintaining fibers, impose different return-loss, mode-field and alignment requirements.
How should the 12 GHz Plug-Play Electro-Absorption Modulated Fiber Optical Transmitter be included in an optical power budget?
Wavelength: 1550nm. Check the Transmitters & Receivers passband, insertion loss, return loss and power handling at the actual source wavelength; a nominal telecom-band label is not a substitute for the configured range.
Does the 12 GHz Plug-Play Electro-Absorption Modulated Fiber Optical Transmitter require a controller?
DC Power Supply: Non, DPPS5V. Match supply voltage, analog or digital command range, connector pinout and default optical state to the instrument interlock. Confirm the unpowered state explicitly — it decides what happens to the link on a power failure.
Need this configured?
Share your wavelength, fiber type, connector, power handling and control requirements and we will qualify the matching configuration and part number.
Model selection
Nearby series comparison
Compare 12 GHz Plug-Play Electro-Absorption Modulated Fiber Optical Transmitter with the closest available models in the Transmitters & Receivers family.
| Selection parameter | 12 GHz Plug-Play Electro-Absorption Modulated Fiber Optical Transmitter (current) | 12 GHz LN Fiber Optical Transmitter/Converter – Turnkey | 12, 25 GHz Fiber Optical Amplified InGaAs PIN Photodiode |
|---|---|---|---|
| Wavelength range | 1550nm | C-Band, L-Band, 1550 nm, 1551.11 nm, 1562.22 nm, Tunable ITU Laser | 1230 - 1620 |
| Fiber type | SM28 | — | SM28, 50/125 |
| Connector / control | FC/APC | FC/APC, FC/UPC, Special | None, FC/APC, Special |
