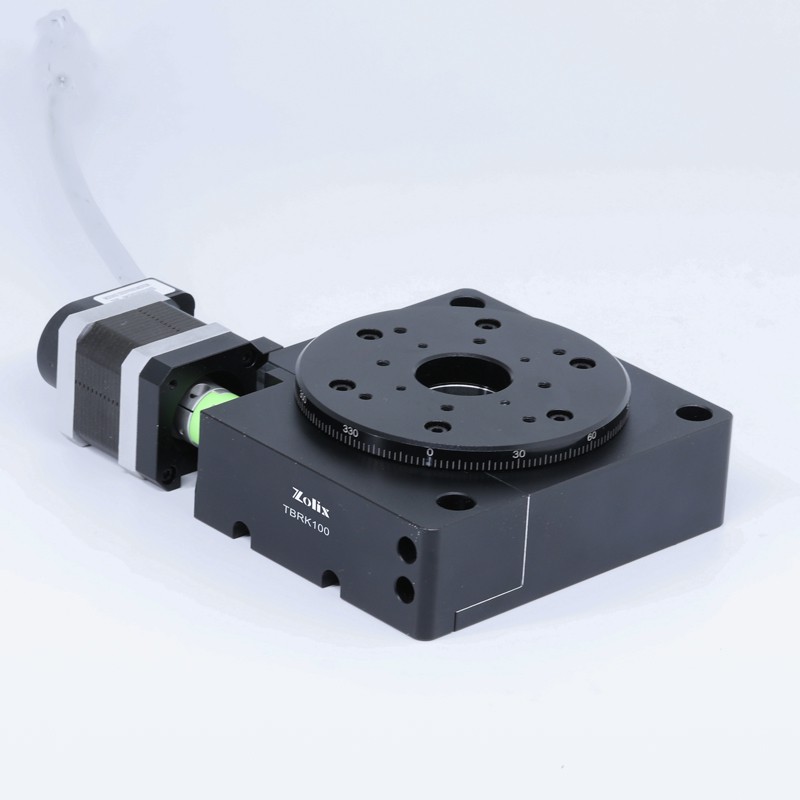

TBRK100-ASP1 Motorized Rotation Stage
Motorized rotation stage with 360° rotation, a φ102 mm table and a φ29 H7 centre bore. Transmission: worm gear 180:1; guide: crossed-roller ring. Repositioning accuracy ≤±0.003°. Horizontal load capacity 20 kg. With -ASP1 (AC servo motor 100 W).
- Repositioning accuracy
- ≤±0.003°
- Horizontal load capacity
- 20 kg
- Table diameter
- φ102 mm
- Centre bore (mm)
- φ29 H7
Specifications
Mechanical
| Table diameter (mm) | φ102 |
|---|---|
| Centre bore (mm) | φ29 H7 |
| Angle range (°) | 360 |
| Worm gear ratio | 180:1 |
| Guide mechanism | Crossed-roller ring |
| Worm gear material | Wear-resistant tin bronze |
| Worm material and treatment | Steel, high frequency quenched |
| Body material and finish | Black anodized aluminum alloy |
Accuracy
| Repositioning accuracy (°) | ≤±0.003 |
|---|---|
| Static clearance (µm) | ≤6 |
| Backlash (°) | ≤0.003 |
| Static parallelism (mm) | ≤0.08 |
| Axial runout (µm) | ≤36 |
| Radial runout (µm) | ≤27 |
Sensors & connection
| Limit sensors | None (external optional) |
|---|---|
| Origin sensor (built-in) | 1×PM-L25 (SUNX, Japan) |
| Sensor supply voltage | DC5~24V±10% |
| Sensor output | NPN open-collector output; DC5~24V 50mA or less |
| Sensor output logic | Output transistor ON when sensor is blocked |
Load capacity
| Horizontal load capacity (kg) | 20 |
|---|---|
| Inverted load capacity (kg) | 5 |
| Vertical load capacity (kg) | 5 |
