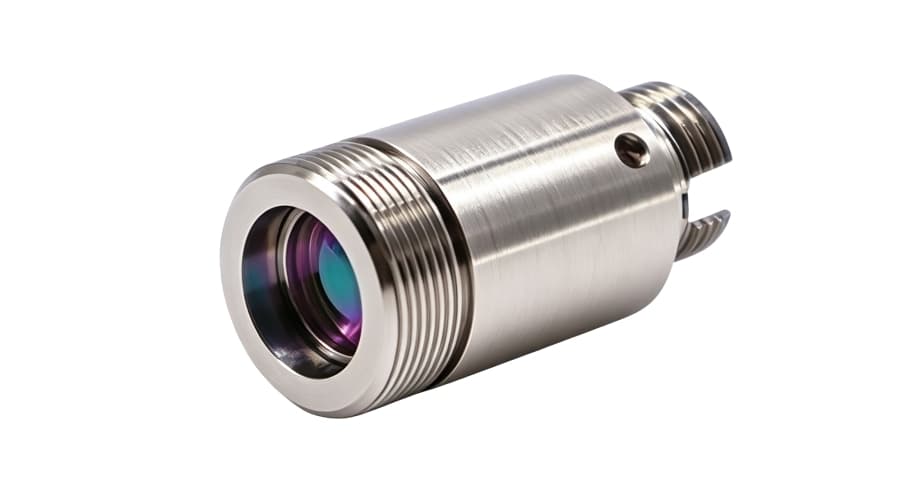

Standard Aspheric Collimator Lineup
Select your required wavelength, connector interface (FC/APC, FC/PC, SMA905), and click on any model to view complete optical specifications, beam profile measurements, and mechanical dimensions.
AFC-FC-APC-1550
1550 nm FC/APC Aspheric Fiber Collimator
Precision pre-aligned aspheric collimator for 1550 nm C/L band telecom single-mode fibers. 8° APC polish provides ≥ 60 dB return loss to protect sensitive DFB and fiber lasers.
AFC-FC-APC-1310
1310 nm FC/APC Aspheric Fiber Collimator
Single-mode FC/APC aspheric fiber collimator optimized for 1310 nm O-band zero-dispersion telecommunication windows.
AFC-FC-APC-1064
1064 nm FC/APC Aspheric Fiber Collimator
High-power handling FC/APC aspheric collimator for 1064 nm Nd:YAG, Yb fiber lasers, and seed laser injection.
AFC-FC-APC-850
850 nm FC/APC Aspheric Fiber Collimator
Single-mode aspheric collimator for 850 nm VCSEL and diode laser delivery in spectroscopy and optical coherence tomography.
AFC-FC-APC-780
780 nm FC/APC Aspheric Fiber Collimator
Single-mode aspheric collimator for 780 nm rubidium D2 transition spectroscopy, atomic clocks, and Ti:Sapphire laser delivery.
AFC-FC-APC-633
633 nm FC/APC Aspheric Fiber Collimator
Single-mode aspheric collimator for 633 nm He-Ne lasers, laser diode modules, and visible interferometry.
AFC-FC-APC-532
532 nm FC/APC Aspheric Fiber Collimator
Single-mode aspheric collimator for 532 nm green DPSS and fiber lasers, Raman excitation, and fluorescence microscopy.
AFC-FC-APC-405
405 nm FC/APC Aspheric Fiber Collimator
Single-mode aspheric collimator for 405 nm blue-violet diode lasers, photolithography, and UV-excited fluorescence.
AFC-FC-PC-1550
1550 nm FC/PC Aspheric Fiber Collimator
Standard FC/PC single-mode aspheric collimator for 1550 nm laboratory testbenches and optical instrumentation.
AFC-FC-PC-1310
1310 nm FC/PC Aspheric Fiber Collimator
Standard FC/PC single-mode aspheric collimator for 1310 nm O-band testing and optical communications research.
AFC-FC-PC-633
633 nm FC/PC Aspheric Fiber Collimator
Standard FC/PC single-mode aspheric collimator for 633 nm visible red laser diodes and helium-neon lasers.
AFC-FC-PC-532
532 nm FC/PC Aspheric Fiber Collimator
Standard FC/PC single-mode aspheric collimator for 532 nm green laser systems and spectroscopy.
AFC-SMA905-VIS
SMA905 Multimode Fiber Collimator (Visible: 400–700 nm)
Heavy-duty SMA905 threaded collimator for visible large-core multimode fibers, high-power industrial lasers, and spectroscopy probes.
AFC-SMA905-NIR
SMA905 Multimode Fiber Collimator (NIR: 700–1100 nm)
High-power SMA905 collimator for near-infrared 700–1100 nm laser diodes, fiber lasers, and NIR spectroscopy.
AFC-SMA905-SWIR
SMA905 Multimode Fiber Collimator (SWIR: 1050–1650 nm)
Short-wavelength infrared (SWIR) SMA905 collimator for 1050–1650 nm broadband sources, supercontinuum lasers, and SWIR spectroscopy.
Optical Architecture & Beam Performance
Engineered with monolithic aspheric singlets to eliminate spherical aberration completely in both collimation (fiber → space) and coupling (space → fiber) modes.

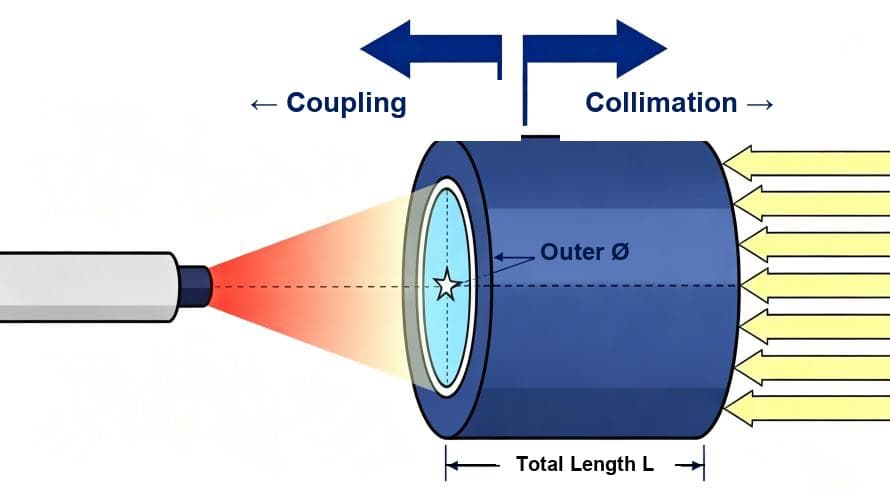

Ray Tracing: Collimation & Coupling Modes
Fixed-focal-length aspheric singlet reshapes wide-angle divergent fiber output into a collimated parallel beam, or compresses a free-space beam back into the guided single-mode fiber core.

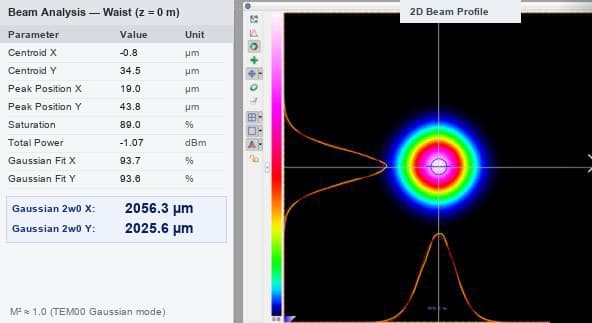

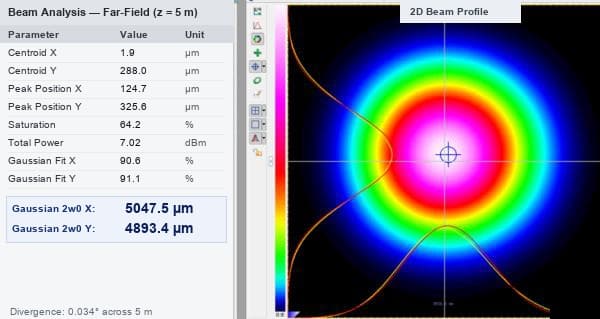

Far-Field Beam Quality (Near Field 0 mm vs Far Field 5 m)
Diffraction-limited Gaussian distribution maintained over distance without high-frequency spatial ripples or diffraction ring degradation (M² ≈ 1).

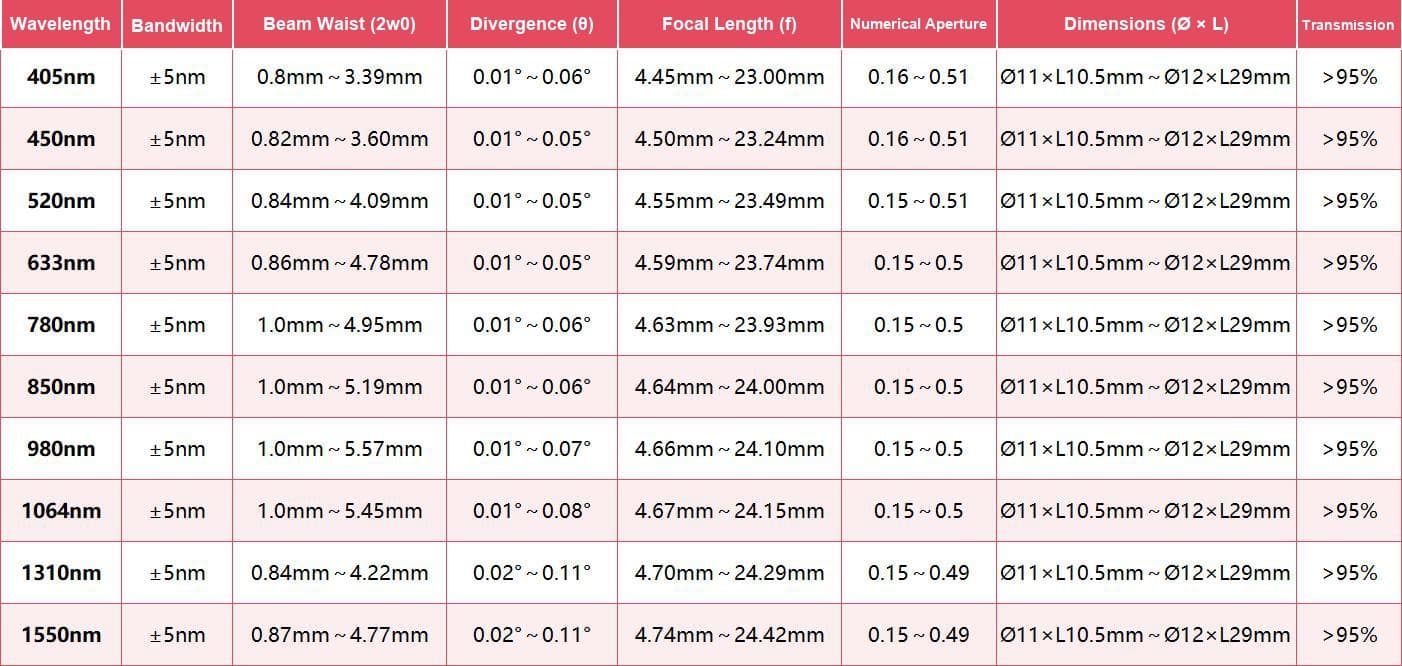

Complete Optical Specifications Matrix & Wavelength Bands
