DField-VS-A4

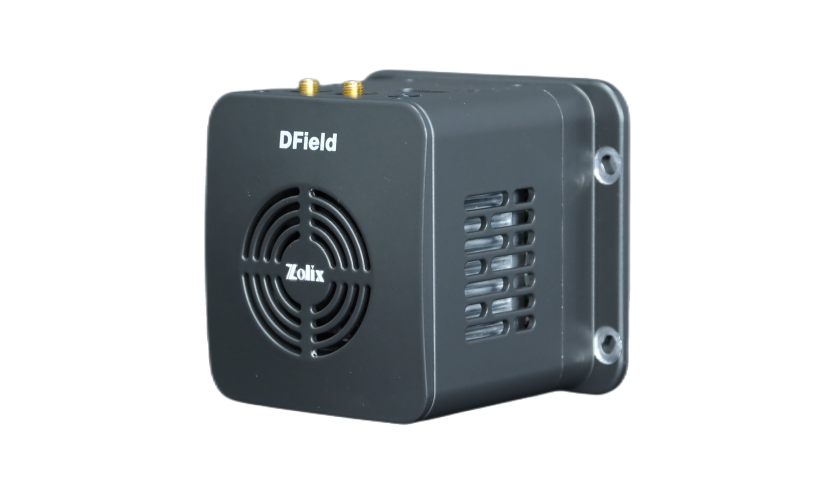

DField-VS-A4 TE-Cooled CCD
- Active pixels: 2048 × 264
- Pixel size: 15 × 15 µm
- Image area: 30.7 × 3.96 mm
- Peak quantum efficiency: 95% at 800 nm
- Digitization: 16 bit
- Maximum integration time: 60 min
Cataloguscontext
De plaats van DField-VS-A4 in het assortiment
DField-VS-A4 staat als DField-VS-A4 TE-Cooled CCD vermeld binnen de familie Scientific spectral CCD. Het lokale catalogusrecord bevat als eerste selectievelden: Active pixels: 2048 × 264; Pixel size: 15 × 15 µm; Image area: 30.7 × 3.96 mm.
Specifications
| Active pixels | 2048 × 264 |
|---|---|
| Pixel size | 15 × 15 µm |
| Image area | 30.7 × 3.96 mm |
| Peak quantum efficiency | 95% at 800 nm |
| Digitization | 16 bit |
| Maximum integration time | 60 min |
| Trigger | Internal or external TTL |
| Communication | USB 2.0 |
| Power | 12 V DC, < 50 W |
Volledige bronspecificatie
Vergelijking per model

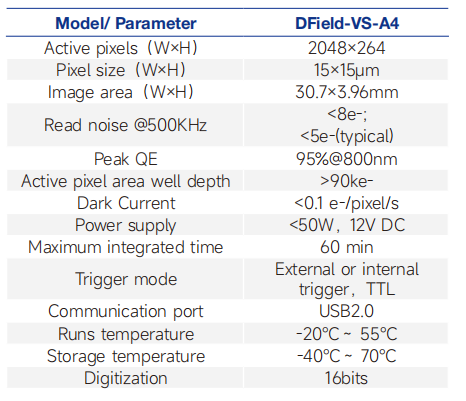

De volledige vergelijking van de fabrikant staat hieronder, zodat modelverschillen zichtbaar blijven en niet tot één bereik worden teruggebracht.
| Parameter | DField-VS-A4 |
|---|---|
| Active pixels (W × H) | 2048 × 264 |
| Pixel size (W × H) | 15 × 15 µm |
| Image area (W × H) | 30.7 × 3.96 mm |
| Read noise at 500 kHz | < 8 e⁻; < 5 e⁻ typical |
| Peak quantum efficiency | 95% at 800 nm |
| Active-pixel full-well depth | > 90 ke⁻ |
| Dark current | < 0.1 e⁻/pixel/s |
| Power supply | < 50 W, 12 V DC |
| Maximum integration time | 60 min |
| Trigger mode | Internal or external TTL |
| Communication port | USB 2.0 |
| Operating temperature | −20 to +55 °C |
| Storage temperature | −40 to +70 °C |
| Digitization | 16 bit |
Ontwerp- en integratiedetails
- Deep cooling specified at −60 °C with a 25 °C ambient temperature.
- 30.7 mm-wide sensor captures a broad spectral band in one acquisition.
- Low read noise and dark current for weak-light spectroscopy.
- Internal or external TTL triggering with USB 2.0 communication.
Toepassings- en aansluitnotities
- Designed as a spectrograph detector head for Raman, fluorescence and photoluminescence acquisition.

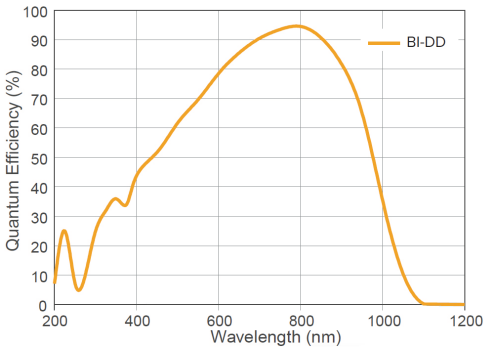

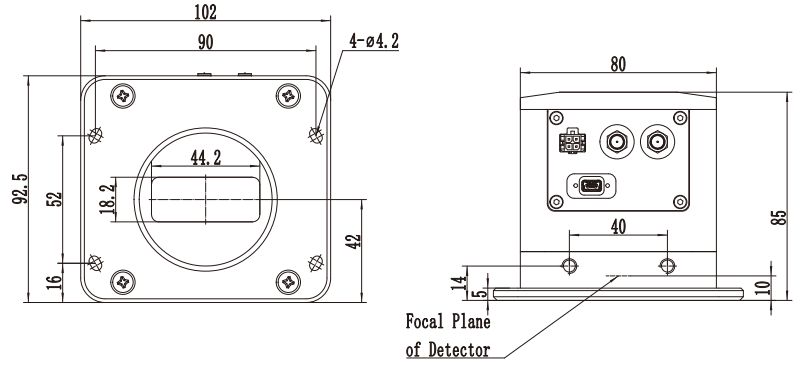

- The archived source includes the quantum-efficiency curve and CCD mechanical configuration in the product gallery.
Waarden zijn overgenomen uit de gearchiveerde producttabel en tekeningen. Bevestig de uiteindelijke detector, elektronica en spectrograafaansluiting voor uw configuratie.
