CSHS1-S

Cage Systems · CSHS1-S Kinematic Mirror Mounts

CSHS1-S

CSHS1-S Kinematic Mirror Mounts

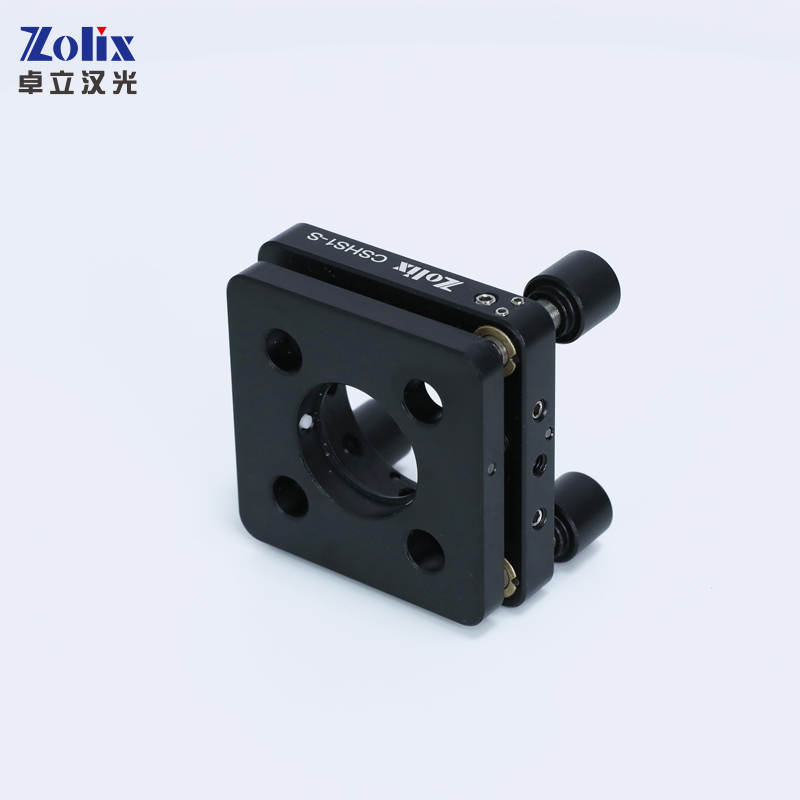

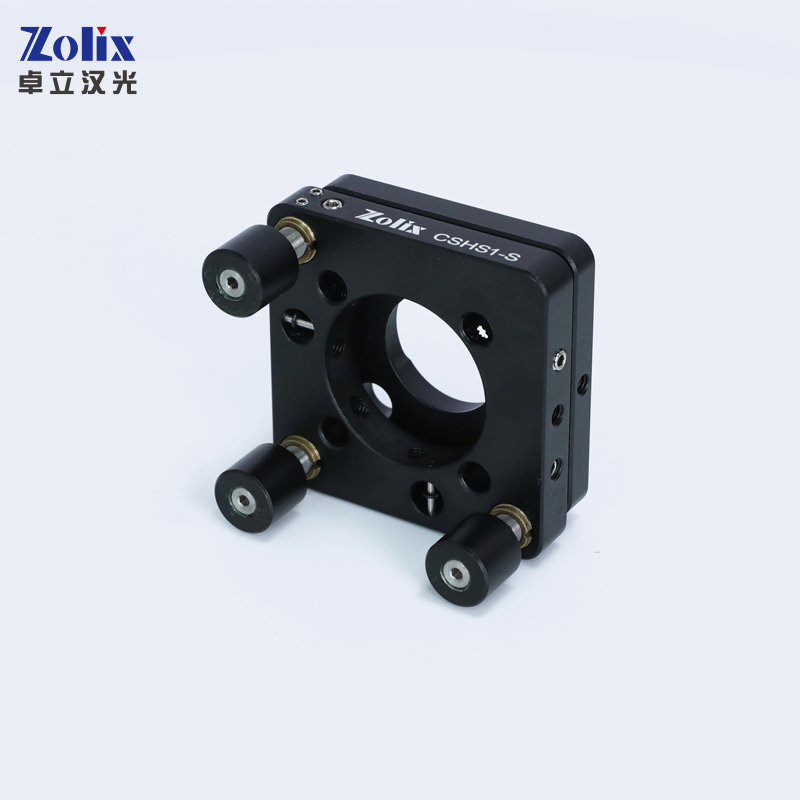

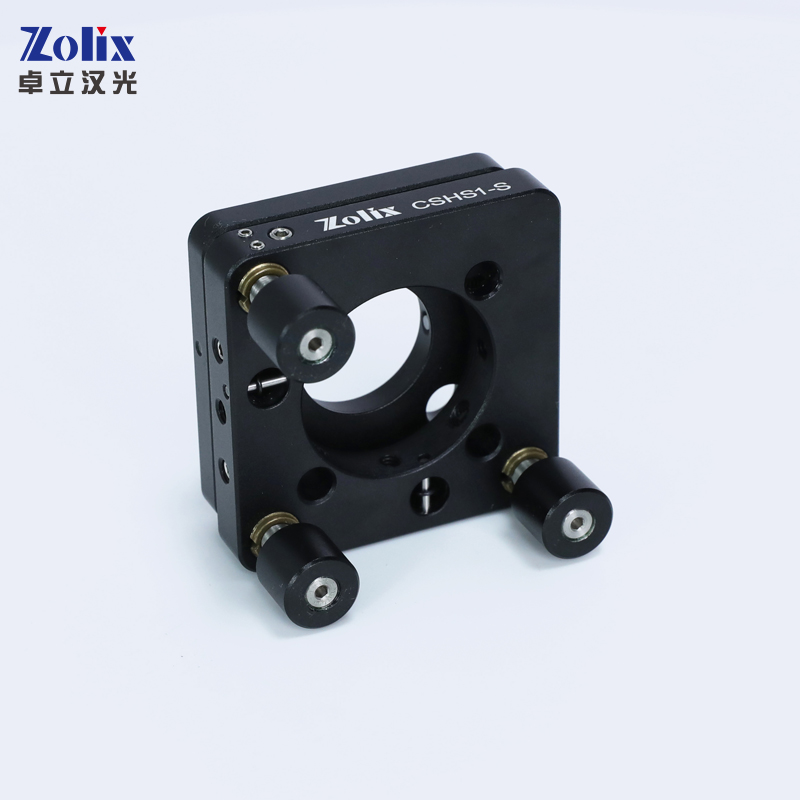

CSHS1-S Kinematic mount features a smooth Ø25.4 mm mounting hole that is suitable for Ø25.4 mm optic which is at least 3 mm thick, the optic is held in place with a top-located locking screw.

View quote list

Datasheet (PDF) ↗CAD Model (RAR) ↗

Specifications

Optic Diameter	Ø25.4 mm
Acceptable Optic Thickness	At least 3 mm

Modelselectie

Waarom CSHS1-S specificeren?

CSHS1-S is een CSHS1-S Kinematic Mirror Mounts-model. Belangrijke selectiegegevens: Optic Diameter: Ø25.4 mm; Acceptable Optic Thickness: At least 3 mm.

Vergelijk alle modellen in de familie CSHS1-S Kinematic Mirror Mounts →Bekijk alle cage systems-modellen →

Toepassingen

Vooruitgelijnde optische assen

Vier stangen bepalen de as, zodat elk element dat erop schuift meteen haaks en gecentreerd staat.

Modulaire submodules bouwen

Bouw een relais, filterblok of inkoppelmodule die intact tussen opstellingen kan verhuizen.

Compacte instrumentintegratie

Verpak een optisch traject in een stijve eenheid voor OEM- en draagbare instrumenten.
