Precisometer
CSMR1-AS

Cage Systems · Rotation Mounts

CSMR1-AS

Rotation Mounts

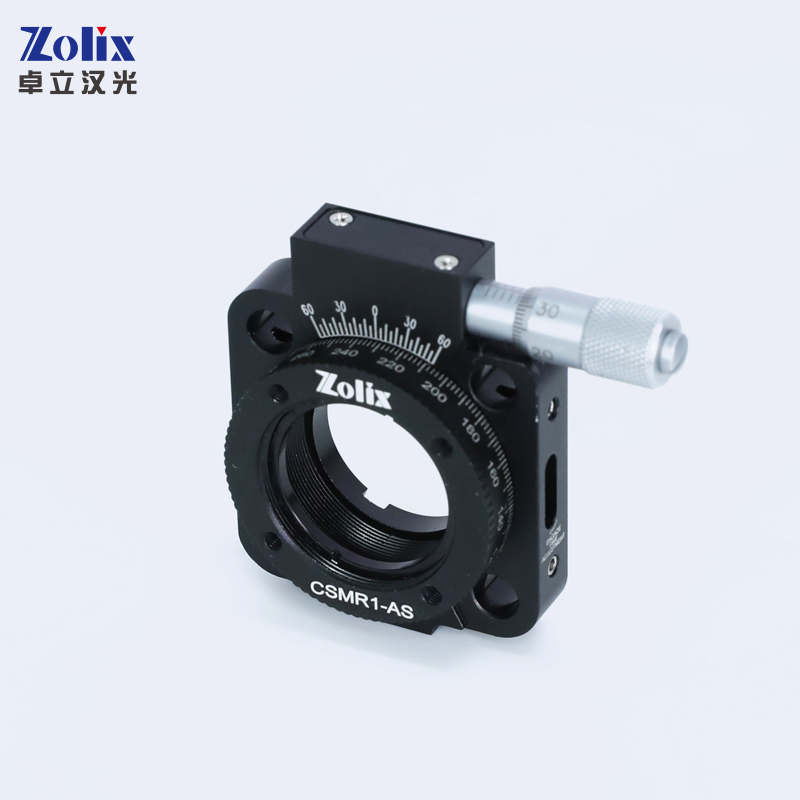

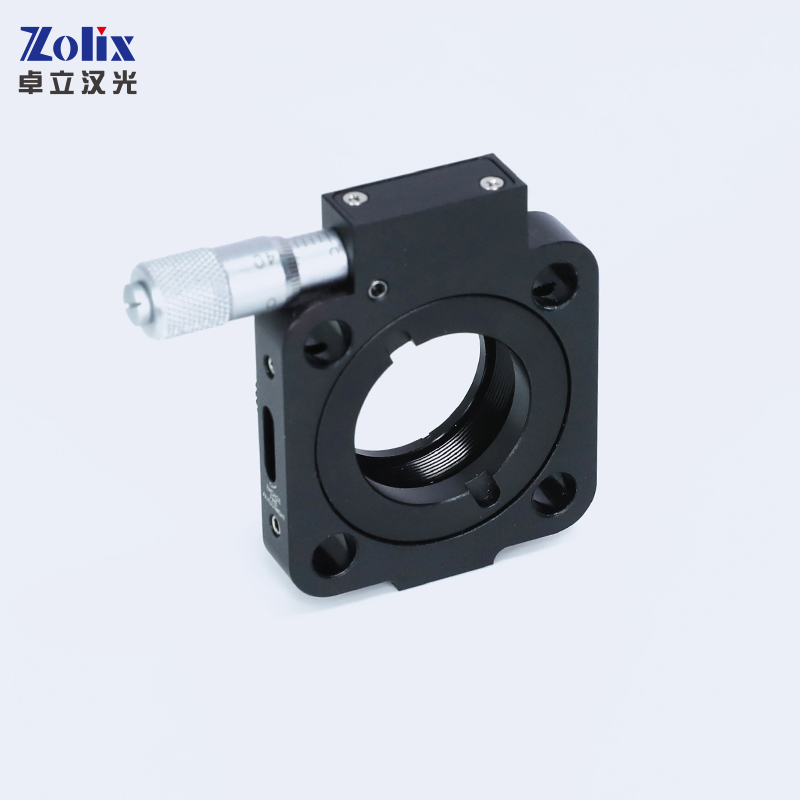

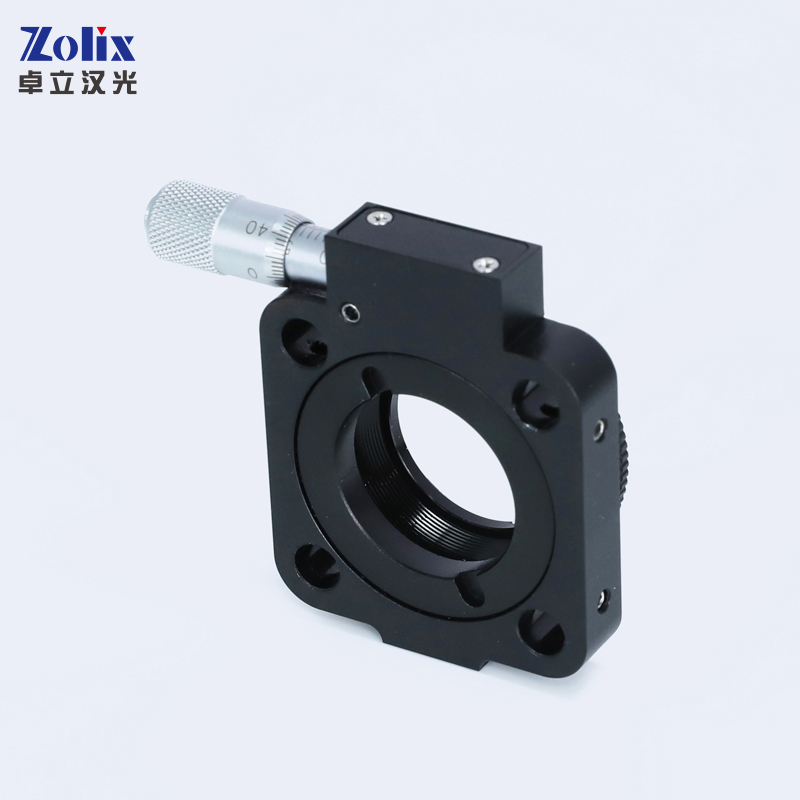

Zolix CSMR1-AS is designed to mount optics which up to Ø25.4 mm and up to 9.4 mm thick in an SM1 threaded rotation carriage with a SM1R retaining ring.

View quote list
Datasheet (PDF) ↗CAD Model (RAR) ↗

Specifications

Optic DiameterØ25.4 mm
Max Acceptable Optic Thickness9.4 mm

Modelselectie

Waarom CSMR1-AS specificeren?

CSMR1-AS is een Rotation Mounts-model. Belangrijke selectiegegevens: Optic Diameter: Ø25.4 mm; Max Acceptable Optic Thickness: 9.4 mm.
