Precisometer
CSM1-CL

Cage Systems · Cylindrical Lens Mount

CSM1-CL

Cylindrical Lens Mount

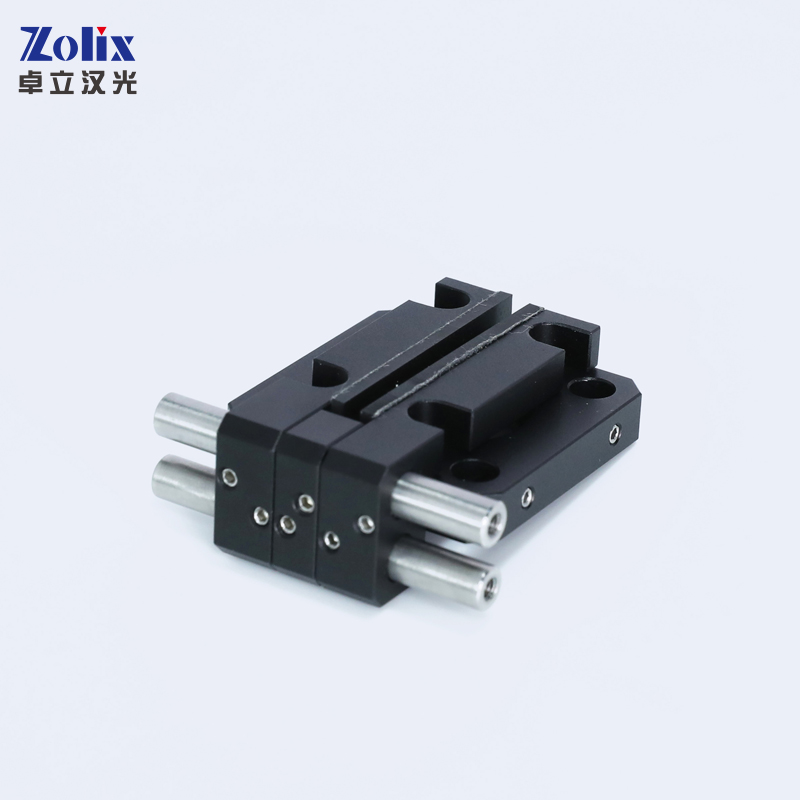

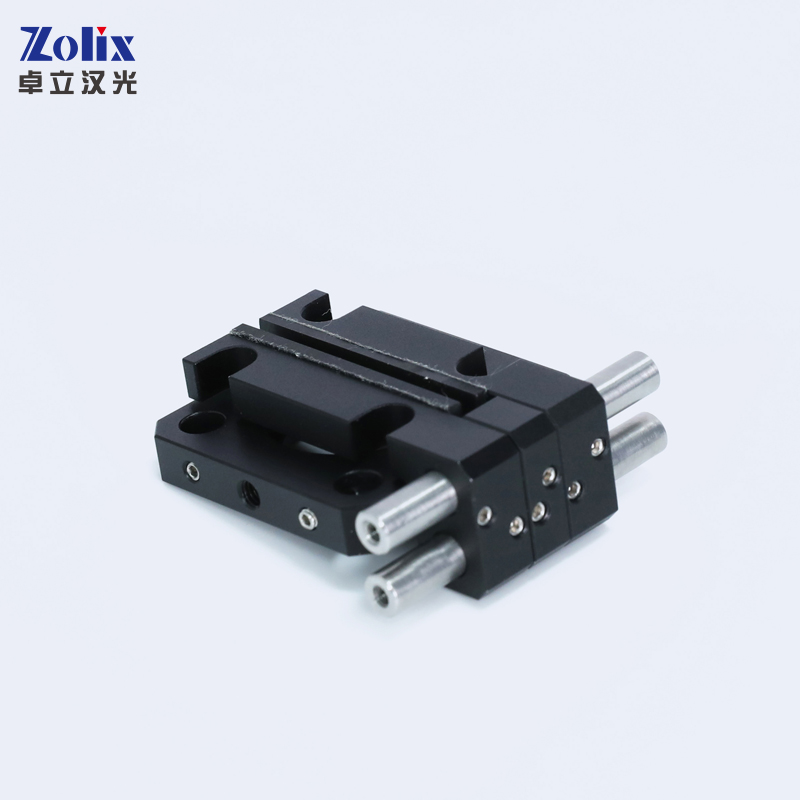

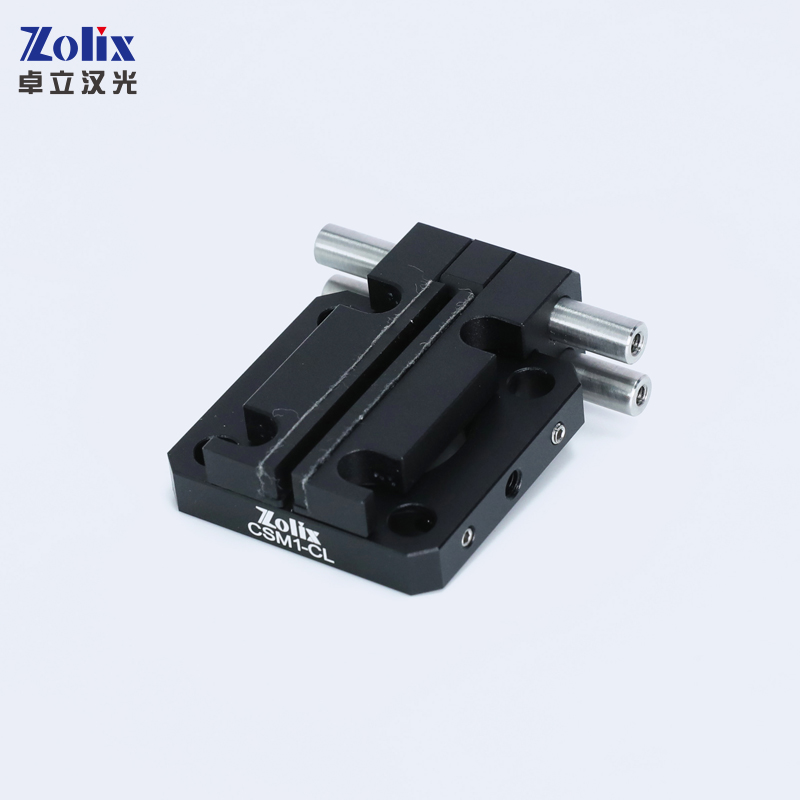

Zolix cylindrical lens mount for 30 mm cage systems is designed to orient a cylindrical lens or another rectangular optic horizontally or vertically within a 30 mm cage system.

View quote list
Datasheet (PDF) ↗CAD Model (RAR) ↗

Specifications

Optic Height4-17 mm

Modelselectie

Waarom CSM1-CL specificeren?

CSM1-CL is een Cylindrical Lens Mount-model. Belangrijke selectiegegevens: Optic Height: 4-17 mm.

Vergelijk alle modellen in de familie Cylindrical Lens Mount →Bekijk alle cage systems-modellen →

Toepassingen

Vooruitgelijnde optische assen

Vier stangen bepalen de as, zodat elk element dat erop schuift meteen haaks en gecentreerd staat.

Modulaire submodules bouwen

Bouw een relais, filterblok of inkoppelmodule die intact tussen opstellingen kan verhuizen.

Compacte instrumentintegratie

Verpak een optisch traject in een stijve eenheid voor OEM- en draagbare instrumenten.
