Lens Mount · OMLS series Self-Centering Lens Mount

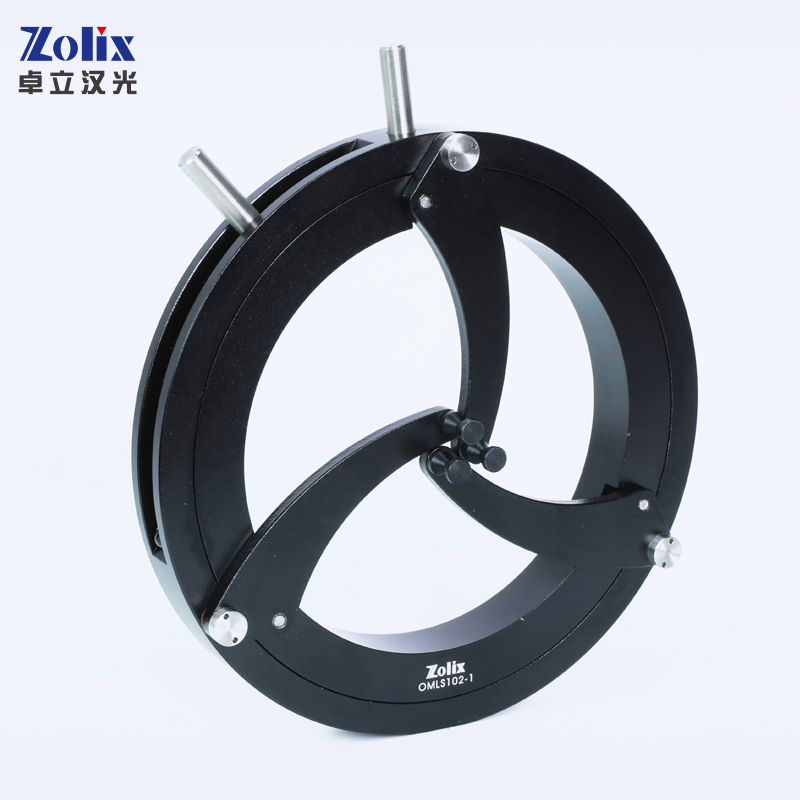

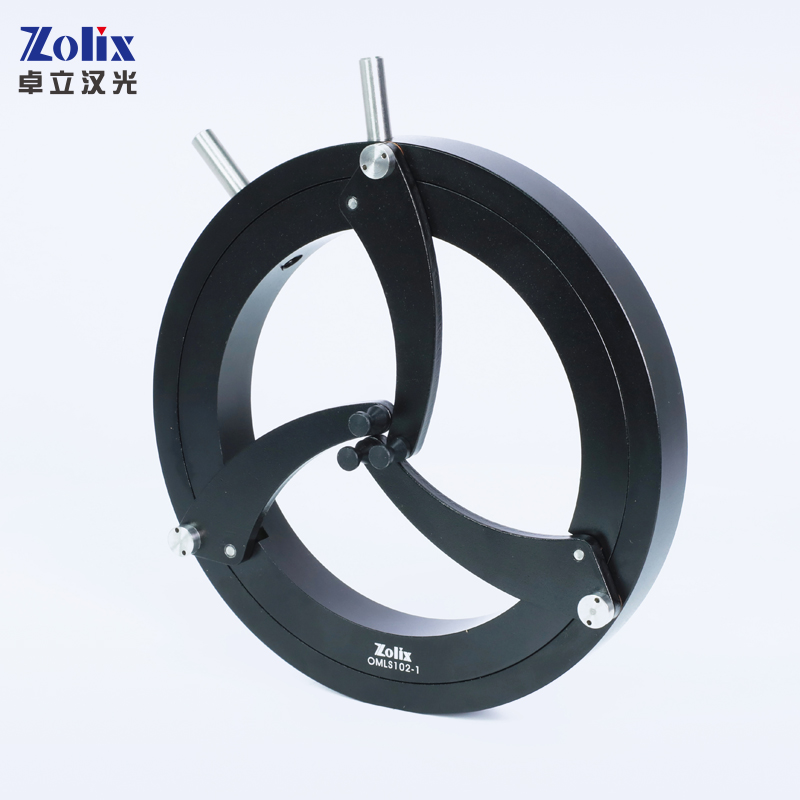

OMLS102-1
OMLS series Self-Centering Lens Mount
High-quality materials: The main body is made of high-quality aluminium alloy, and the surface treated by black anodic oxidation.
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Optic Size (mm) | φ5~φ102 |
|---|---|
| Max Clear Aperture A (mm) | φ100 |
| Outline Diameter (mm) | φ140 |
| Optic Center Height (mm) | 69.5 |
| Overall Height(mm) | 159.3 |
| Main Body Material and Treatment | Aluminium alloy, surface treated by black anodic oxidation. |
| Overall Thickness (mm) | 30 |
| Number of Pulling Spring | 2 |
| Mounting Hole | M6 |
| Net Weight (g) | 355 |
Modelselectie
Waarom OMLS102-1 specificeren?
OMLS102-1 is een OMLS series Self-Centering Lens Mount-model. Belangrijke selectiegegevens: Optic Size (mm): φ5~φ102; Max Clear Aperture A (mm): φ100; Outline Diameter (mm): φ140; Optic Center Height (mm): 69.5.
Toepassingen
Spanningsvrij vasthouden van optiek
Houd een lens vast zonder de dubbelbreking of vormfout die klemdruk veroorzaakt.
Focus- en conjugaatinstelling
Positioneer een lens langs de as om beeld- en Fouriervlakken te plaatsen waar het ontwerp ze vraagt.
Centreringsinstelling
Breng de optische as van de lens op de as van de bundel in plaats van op die van de mechanica.
