Lens Mount · NL series Kinematic Lens Mount

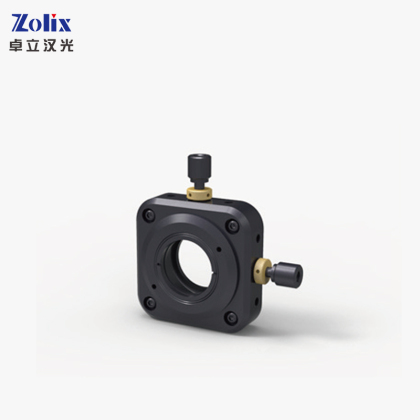

NLXY25.4
NL series Kinematic Lens Mount
High-quality materials: The main body is made of high-quality aluminium alloy, and the surface treated by black anodic oxidation.
Datasheet (PDF) ↗CAD Model (RAR) ↗Specifications
| Optic Size (mm) | φ25/φ25.4 |
|---|---|
| Optics Thickness (mm) | 3~8 |
| X-axis(radial direction) | ±2 |
| Y-axis(radial direction) | ±2 |
| Z-axis(axial direction) | / |
| Translation Axis | XY |
| Clear Aperture (mm) | φ22.5 |
| Optic Center Height (mm) | 25 |
| XY direction displacement by rotating screw per revolution(mm) | 0.2 |
| Z direction displacement by rotating screw per revolution(mm) | / |
| Main Body Material and Treatment | Aluminium alloy, surface treated by black anodic oxidation. |
| Overall Thickness (mm) | 18 |
| Locking Mechanics | Yes |
| Mounting Hole | M6, 2M4 |
| Net Weight (g) | 95 |
| Types of Lens | Circular lens |
Modelselectie
Waarom NLXY25.4 specificeren?
NLXY25.4 is een NL series Kinematic Lens Mount-model. Belangrijke selectiegegevens: Optic Size (mm): φ25/φ25.4; Optics Thickness (mm): 3~8; X-axis(radial direction): ±2; Y-axis(radial direction): ±2.
Toepassingen
Spanningsvrij vasthouden van optiek
Houd een lens vast zonder de dubbelbreking of vormfout die klemdruk veroorzaakt.
Focus- en conjugaatinstelling
Positioneer een lens langs de as om beeld- en Fouriervlakken te plaatsen waar het ontwerp ze vraagt.
Centreringsinstelling
Breng de optische as van de lens op de as van de bundel in plaats van op die van de mechanica.
