Cryogenic Piezo Stages Configurator
Select standard cryogenic linear stages, rotators, goniometers, scanners, controllers, or accessories. Configure closed-loop displacement sensors, vacuum ratings, and temperature limits to suit your cryostat setup.

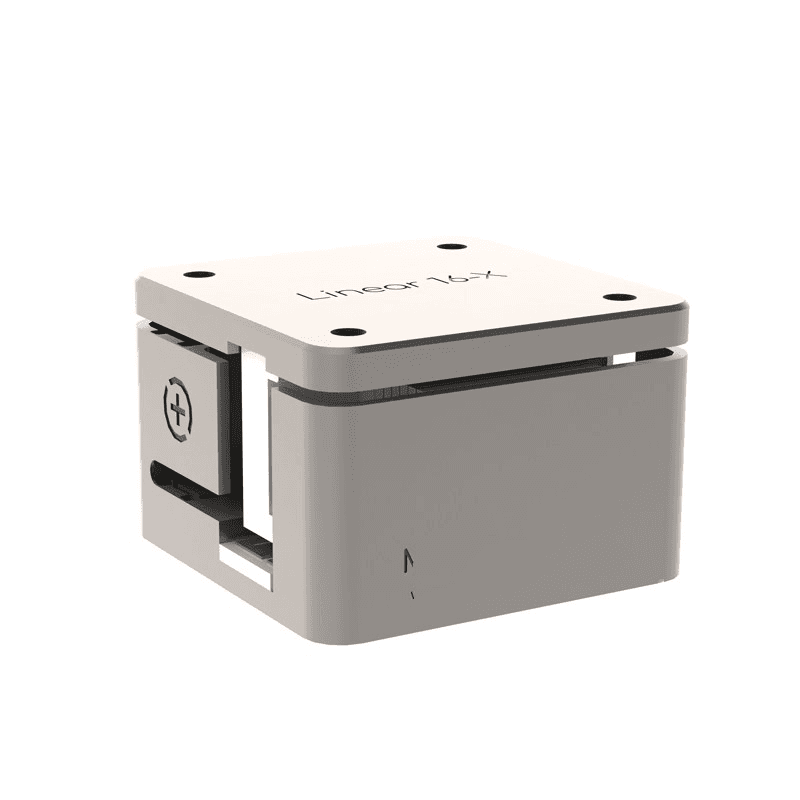

Linear16-x Compact Linear Stage (X)
Identified Model Reference
Linear16-x
Specifications
- Dimensions: 16 x 16 x 10.5 mm
- Travel: 3 mm coarse
- Payload: 50 g
- Material: Pure Titanium body
- Encoder: Resistive closed-loop (150 nm resolution)
Why choose this
Smallest 16 mm titanium body — pick it when space inside the cryostat is the constraint and payloads are light.
We will match this configuration with Zolix extreme-environment cryogenic positioners and provide the relevant STEP files and technical solution.
