LED-730-P1

LED-730-P1 PCB-mounted LED

730 nm nominal LED on a 20 mm hexagonal copper-core PCB. Compare minimum and typical optical power, forward voltage, spectral bandwidth and device-specific thermal limits before selecting the driver and heat sink.

LED-730-P1 source housing or LED carrier

Compare the details

Technical specifications

Compare the listed configurations and match the specifications to your setup.

Jump to a specification table (2)

10 specification rows.

Optical and electrical ratings

5 entries

Scroll horizontally to compare all columns

LED-730-P1 PCB-mounted LED: Optical and electrical ratings
ParameterMinimumTypicalMaximum
Peak Wavelength720 nmNot specified740 nm
LED Output Power741.6 mW842.5 mWNot specified
Forward Voltage2 V2.4 VNot specified
Bandwidth (FWHM)Not specified22 nmNot specified
Typical Viewing AngleNot specified120 degNot specified

Not specified means the source gives no value. Maximum current is a limit, not an instruction to operate every device at that current.

Operating limits and carrier

5 entries
LED-730-P1 PCB-mounted LED: Operating limits and carrier
ParameterRating
Maximum Current1200 mA
Operating Temperature-40 to +85°C
Storage Temperature-40 to +100°C
Carrier20 mm hexagonal copper-core PCB
Thermal managementHeat sink required

Spectrum & mechanical references

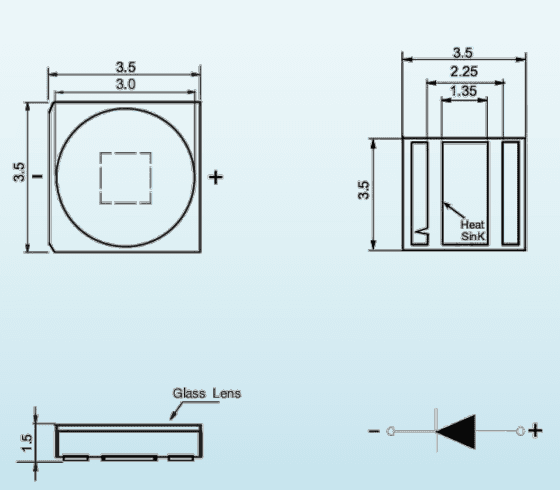

Emitter package drawing

Emitter package geometry and electrical polarity; dimensions in millimeters. The carrier is a separate 20 mm hexagonal PCB.
Emitter package geometry and electrical polarity; dimensions in millimeters. The carrier is a separate 20 mm hexagonal PCB.

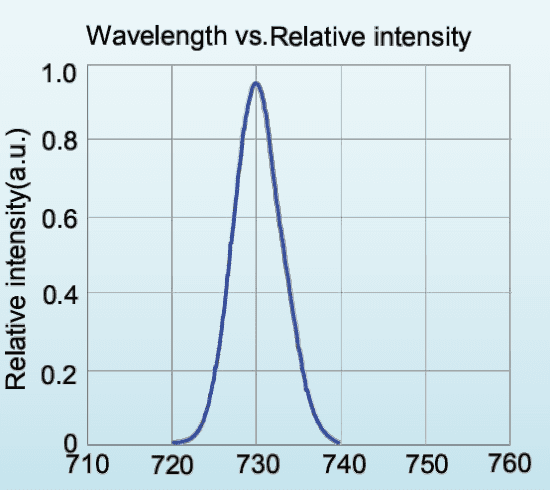

Relative emission spectrum

Relative spectral distribution for LED-730-P1; a normalized spectrum, not a calibrated output-power plot.
Relative spectral distribution for LED-730-P1; a normalized spectrum, not a calibrated output-power plot.

Complete the illumination path

  1. 01

    Define the spectrum

    Start with the absorption, excitation or inspection band. Use the model’s wavelength bin or LED peaks and its FWHM; a family range describes separate configurations.

  2. 02

    Choose the optical path

    Use a fiber-coupled module for remote delivery, a light engine for a controlled source assembly, or a PCB emitter when your instrument provides the driver, optics and cooling.

  3. 03

    Match power to the interface

    For fiber output, choose core diameter and numerical aperture before reading the power column. For engines, check the lightguide or bundle and filter conditions. PCB emitter power is not a fiber-delivered rating.

  4. 04

    Specify control and cooling

    Match current, voltage compliance and heat removal to the exact device. Select TTL, analog or RS232 only where specified. Include mounting, connector and synchronization requirements in your enquiry.
