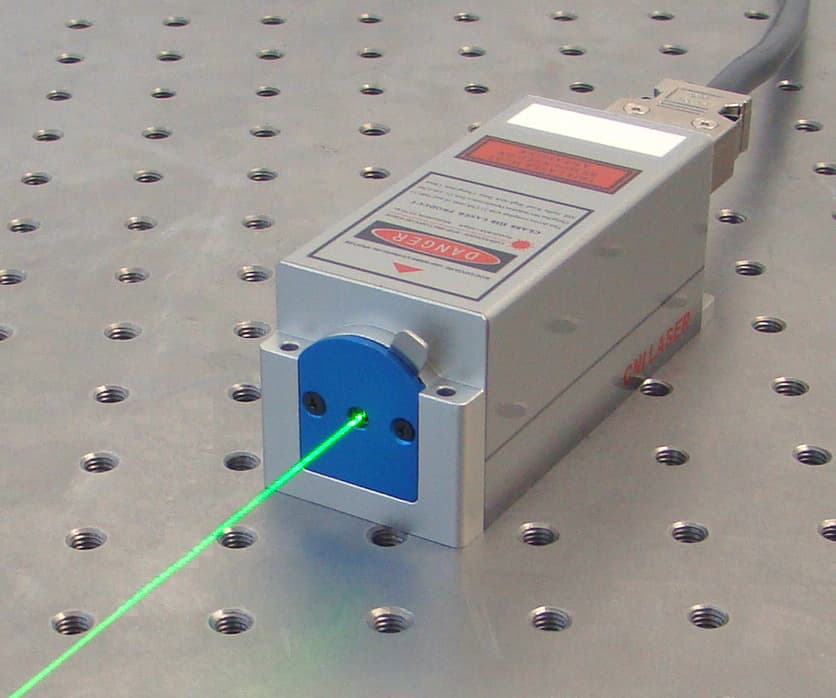

527 nm Green Lasers

Green · Pulsed · Datasheets & quote request

527 nm Green Lasers

4 models2 seriesquote after qualification

Other Green lines in catalog (35)

Explore all 400+ wavelengths →

495 nm 496 nm 501 nm 505 nm 507 nm 509 nm 510 nm 513 nm 514 nm 514.5 nm 515 nm 518 nm 520 nm 522 nm 523.5 nm 524 nm 525 nm 526.5 nm 530 nm 532 nm 535 nm 536 nm 537 nm 540 nm

Popular benchmark wavelengths

266 nm 355 nm 405 nm 450 nm 488 nm 515 nm 520 nm 532 nm 561 nm 589 nm 633 nm 640 nm

4 models · 2 series

High Energy Laser |

3 models

Model	Wavelength	Pulse energy	Repetition rate	Pulse width	Power stability	energy	Power stability (rms)	high single pulse energy, high output power,	Beam diameter (mm)	Pointing stability over temperature(urad/°C)	Delay between two pulses (us)	Warm-up time (minutes)	Cooled method	Operating temperature (℃)	Power supply (110/220VAC)	Expected lifetime (hours)	Pointing stability over temperature (urad/°C)
527	527 nm	1-20 mJ	0.2-10 kHz fixed	–	–	–	–	–	–	–	–	–	–	–	–	–	–
DPS-527-PIV	527 nm	1-20 mJ	0.2-10 kHz fixed	~200 ns @1 kHz	–	diode / pumped / all / solid / state	<2%,<1%,<0.5%	Beam divergence, full angle (mrad) / ~5	~5	<50	0-500 (can be customized)	<15	Water cooled	15-35	PSU-DPS-PIV	>10000	–	Datasheet
DPS-527-Q	527 nm	1-20 mJ	0.2-10 kHz fixed	–	<2%, <1%, <0.5%	diode / pumped / all / solid / state	–	Beam divergence, full angle (mrad) / ~5	–	–	–	<15	Water cooled	15-35	PSU-DPS-Q	>10000	<50	Datasheet

527 NM Green Laser.

1 model

Model	Wavelength	Output / average power	Pulse energy	Ave power stability (over 4 hours)	Transverse mode	Warm-up time (minutes)	Cooled method	Operating temperature (℃)
AO-U-527	527 nm	2.5 W	800 uJ	<5%, <3%, <2%	TEM00	<10	Air cooled	10-35	Datasheet

Not sure which model fits?

Send the physics — wavelength, mode, power or energy, linewidth or pulse width, delivery, control and safety — and we qualify the source.

Browse all laser models Open advisor View enquiry list
