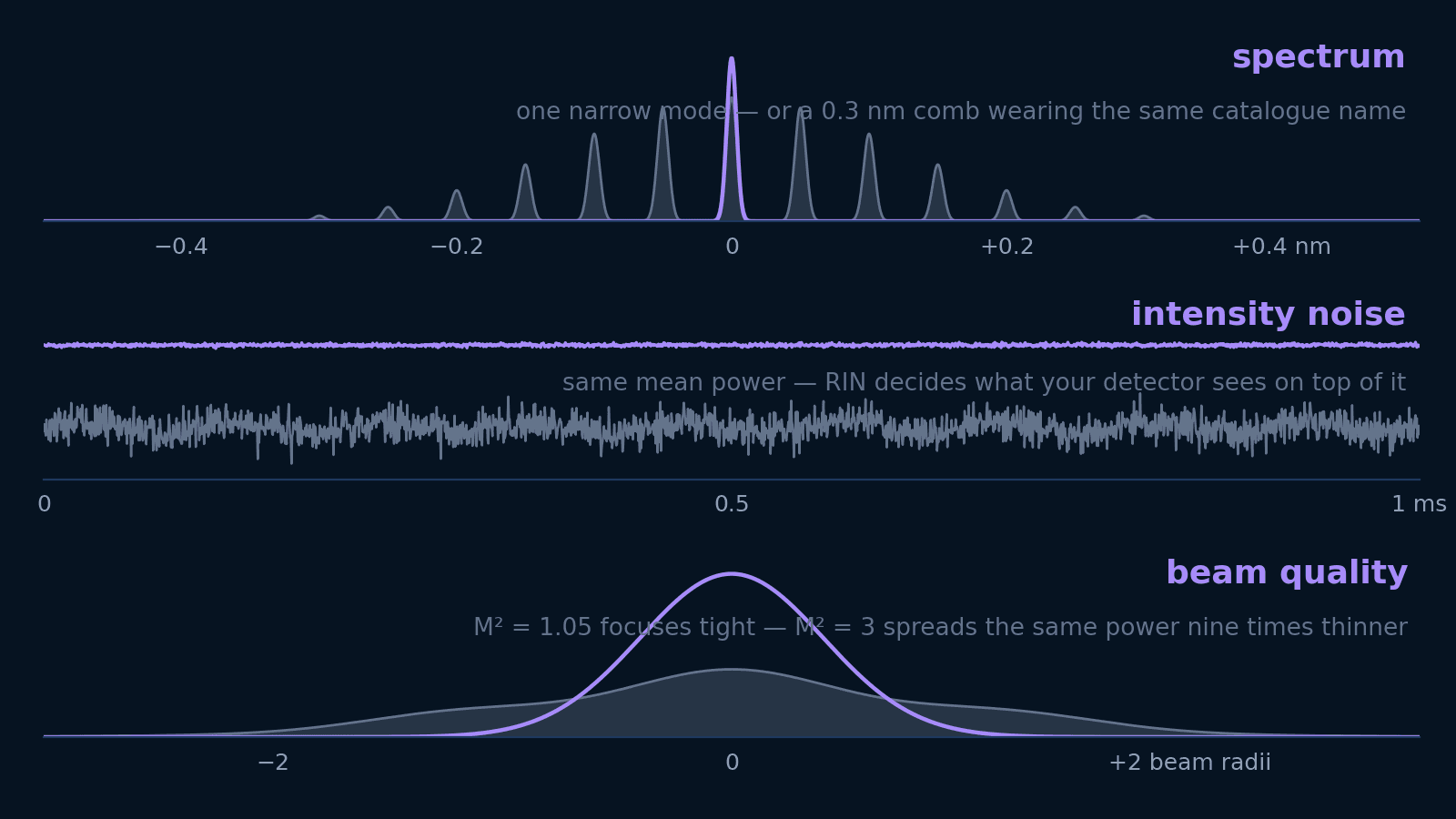

Power stability, linewidth, beam quality
TEM-LN-505505 nm green CW laser
505 nmTEM-LN-505 is a 505 nm CW laser. Used for measurement, communication, spectrum analysis. Laser. Key specifications: output / average power 1~30 mW, operating mode CW, power stability (rms, 4 hours ± 3°c) <2%, <1%, <0.5%. View specifications, datasheet and enquiry options from Precisometer.
Specifications
TEM-LN-505
12 specification rows
| Wavelength | 505 nm |
|---|---|
| Output / average power | 1~30 mW |
| Beam / notes | Laser |
| Operating mode | CW |
| Power stability (rms, 4 hours ± 3°C) | <2%, <1%, <0.5% |
| Transverse mode | TEM00 |
| Noise of amplitude (rms, 20Hz-20MHz) | <1%, <0.5% |
| M2 | <1.1 |
| Beam divergence, full angle (mrad) | <1.5 |
| Warm-up time (minutes) | <5 |
| Operating temperature (°C) | 25±3 |
| Power supply (100-240VAC) | PSU-III-FDA/PSU-III-LED/PSU-A-D |
| Expected lifetime (hours) | >10000 |
Applications
Uses named on this model’s datasheet.
- Measurement
- Communication
- Spectrum analysis
