CD0307UV-B Beam Profiler
CD0307UV-B basic series beam profiler. Spectral range: 190-340 nm, 340-1100 nm. Beam-spot range: 34.5 μm-7.1 mm. Check power, attenuation and interface conditions for the selected configuration.
- Spectral range
- 190-340 nm, 340-1100 nm
- Spot range
- 34.5 μm-7.1 mm
- Data interface
- USB3.0
Compare the details
Technical specifications
Compare the listed configurations and match the specifications to your setup.
23 specification rows.
Model specifications
23 entries| Parameter | Specification |
|---|---|
| Model | CD0307UV-B |
| Spectral Range | 190-340 nm, 340-1100 nm |
| Dynamic Range | 73.9 dB |
| Lowest effective response | [1] 1.52μW/cm²@266 nm 0.0965μW/cm²@633 nm 0.434μW/cm²@1064 nm |
| Sensor size | 8.4*7.1 mm |
| Resolution | 2448*2048 |
| Min. sensor position | 6 mm |
| Sensor Pixel Size | 3.45 μm |
| Exposure Time | 0.05 ms-500 ms |
| Shutter | Global Shutter |
| Beam Spot Detection Range | 34.5 μm-7.1 mm |
| Max. Power Density (damage threshold) | 50 W/cm²(with OD3.0 attenuation) |
| Max. energy density | 1J/cm²(with OD3.0 attenuation) |
| Max. Power | 1 W |
| Attenuator | OD1.0D/OD20.D/OD3.0D(190-340 nm) OD0.5/OD1/OD2/OD3(340-1100 nm) |
| Data interface | USB3.0 |
| Calculating frame rate | 5-10 fps [2] |
| Trigger | Yes |
| Structure Type | Back interface, compatible with C-port thread |
| Dimension | See the outline |
| Operating Environment | Temperature: 0-35°C [3] , relative humidity<60% |
| Operational Conditions | Operating system: Windows 10/11, 64-bit, pre-installed MS Office or WPS. Hardware: ≥8G RAM, CPU I5 above (≥2.5GHz, Core ≥4), recommended display resolution is 1920*1080. |
| Weight | <500 g |
Scroll within the table to view every row.
Configuration notes and measurement conditions
- [1] The described parameter indicates the lowest effective response when the exposure time is set to 100 milliseconds. [2] The parameter mentioned is the calculating frame rate at a resolution of 5,000,000 pixels. [3] It is the working temperature, if it involves directivity test, the temperature should be controlled at 15-25°C.
- Read total power, power density and pulse-energy-density limits with the stated attenuation, wavelength, beam size, cooling and detection time.

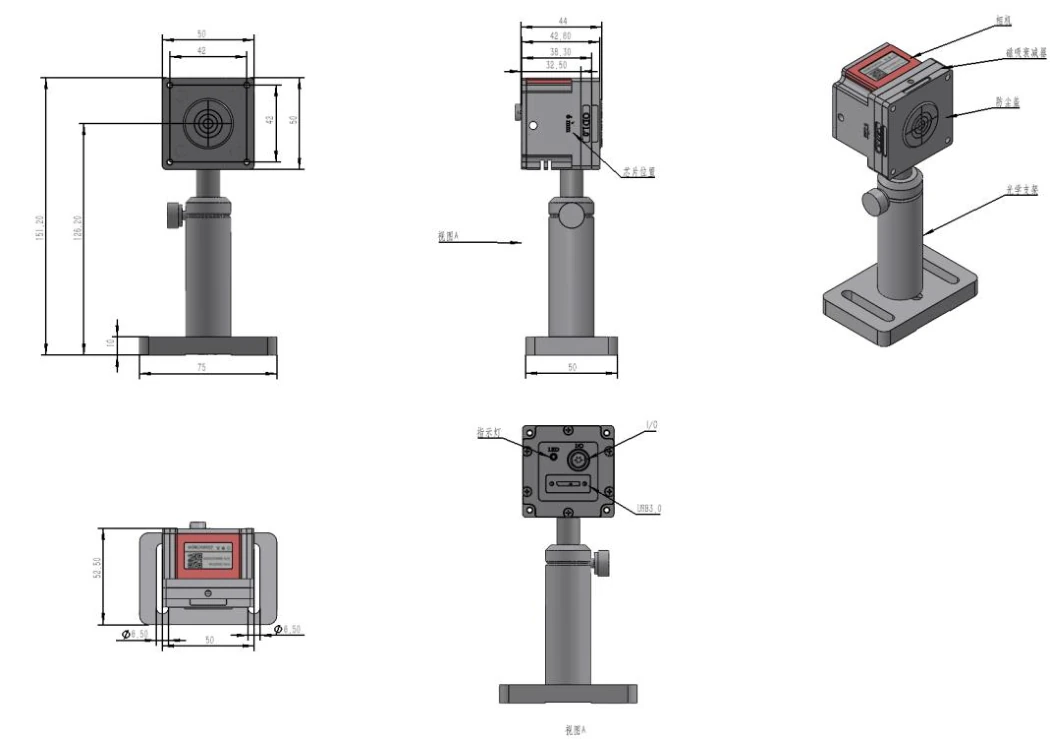

Mechanical drawings
From image to measurement
Beam analysis and software
Illustrative software output. Results, analysis functions and acquisition rates depend on the selected hardware, software and beam conditions.
Follow beam characteristics
Analyse beam diameter, ellipticity and position. Suitable configurations support multi-spot monitoring, image stitching and pointing-stability analysis; acquisition and processing rates are model dependent.
Choose the measurement configuration
Check exposure, shutter and external-trigger support for your timing requirements. The 1000 W system specifies beam analysis and optional automatic M² workflows; these capabilities require the stated software and hardware configuration.
Specify the complete measurement
01
Match the wavelength
Choose the exact detection band and the attenuation or window configuration. A family range combines different models; it does not make every instrument broadband.
02
Resolve the spot
Compare the minimum detectable spot with the maximum usable beam size. Sensor pixel size, optical magnification and quoted measurement resolution describe different quantities. Gaussian TEM00 limits may be smaller than the sensor aperture.
03
Check power and exposure
Read total power, irradiance and pulse-energy-density limits together. Include pulse duration, repetition rate, beam diameter, cooling and the permitted measurement time. Attenuation conditions belong to the quoted limit.
04
Plan acquisition and alignment
Match USB or GigE, trigger support, software requirements and beam-entry geometry. Divergence needs measurements at known axial positions; automated M² analysis requires the appropriate scan hardware and software configuration.
