8X Detented Zoom Lens
8:1 detented zoom lens with a telecentric optical design: 0.6× to 5.0× at an 84 ± 2 mm working distance, for sensors up to 2/3 inch. C-mount.
Premium zoom optics, without the premium price.
Already have a quote for a zoom lens? Send it to us.
Will it suit your camera? Check it in the zoom lens selector.
0.6× – 5.0×
Optical magnification
8:1
Zoom ratio
84 ± 2 mm
Working distance
2/3 inch
Max. sensor size
Overview
About the PMS-Z80D
Zoom lenses with a telecentric optical design and an 8:1 magnification ratio: 0.6× to 5.0× at an 84 ± 2 mm working distance, covering a 2.20 to 18.33 mm field of view on a 2/3-inch sensor.
Features
- Detented zoom: high accuracy in zooming and repeat positioning
- 6 or 9 divided points for mechanical positioning
- High-hardness alloy for a long lifespan; precision mechanical structure
- Telecentric optical design; magnification 0.6× to 5.0×, magnification ratio 8:1
- Field of view 2.20 to 18.33 mm on a 2/3-inch sensor
- High resolution, low distortion and a large N.A.
- Compact design, easy to assemble and install
Technical Specifications
PMS-Z80D Specifications
General
| Optical magnification | 0.6× – 5.0× |
|---|---|
| Zoom ratio | 8:1 |
| Working distance | 84 ± 2 mm |
| Max. sensor size | 2/3 inch |
| Mount | C-mount |
| Zoom | Manual, detented |
Optical performance
| Magnification | Depth of field (mm) | N.A. | F-number | Resolution (µm) | TV distortion |
|---|---|---|---|---|---|
| 0.6× | 2.67 | 0.025 | 12.5 | 13 | 0.050% |
| 1.0× | 0.95 | 0.043 | 11.85 | 7.8 | 0.002% |
| 1.5× | 0.43 | 0.063 | 11.95 | 5.3 | 0.010% |
| 2.0× | 0.27 | 0.074 | 13.65 | 4.53 | 0.020% |
| 2.5× | 0.2 | 0.082 | 15.3 | 4.09 | 0.003% |
| 3.0× | 0.15 | 0.09 | 16.5 | 3.73 | 0.020% |
| 3.5× | 0.12 | 0.097 | 18.4 | 3.46 | 0.020% |
| 4.0× | 0.1 | 0.1 | 19.9 | 3.36 | 0.018% |
| 4.5× | 0.081 | 0.11 | 20.4 | 3.05 | 0.020% |
| 5.0× | 0.073 | 0.11 | 22.45 | 3.05 | 0.010% |
Field of view (mm), diagonal × horizontal × vertical
| Magnification | 2/3" sensor |
|---|---|
| 0.6× | 18.33 × 14.67 × 11.00 |
| 1.0× | 11.00 × 8.80 × 6.60 |
| 1.5× | 7.33 × 5.87 × 4.40 |
| 2.0× | 5.50 × 4.40 × 3.30 |
| 2.5× | 4.40 × 3.52 × 2.64 |
| 3.0× | 3.67 × 2.93 × 2.20 |
| 3.5× | 3.14 × 2.51 × 1.89 |
| 4.0× | 2.75 × 2.20 × 1.65 |
| 4.5× | 2.44 × 1.96 × 1.47 |
| 5.0× | 2.20 × 1.76 × 1.32 |
Drawings

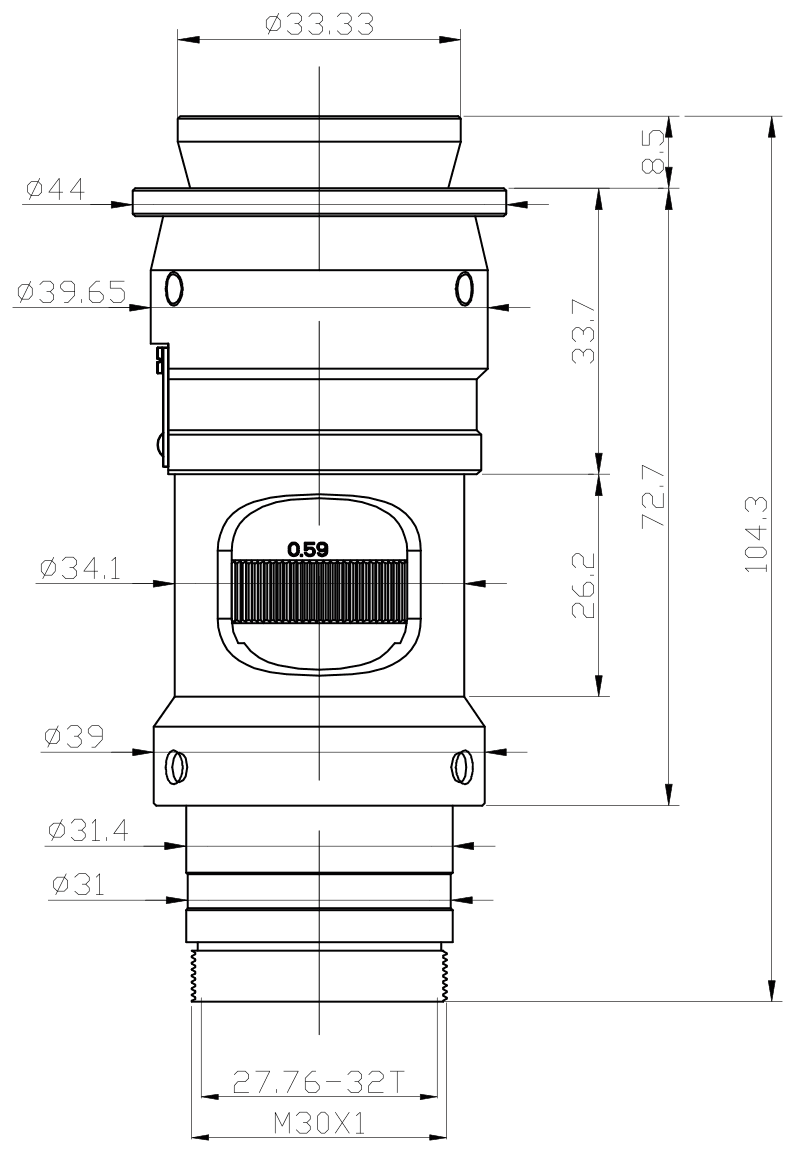

Dimensions and System Components
Datasheet
Full specification sheet for the PMS-Z80D.
